Specifications
ultrasonic flaw detector probeUSB for Storage ,Plug and Play
B Scan-Display Flaw Directly
5 intelligent DAC curve
Solid USB X5 ultrasound probe

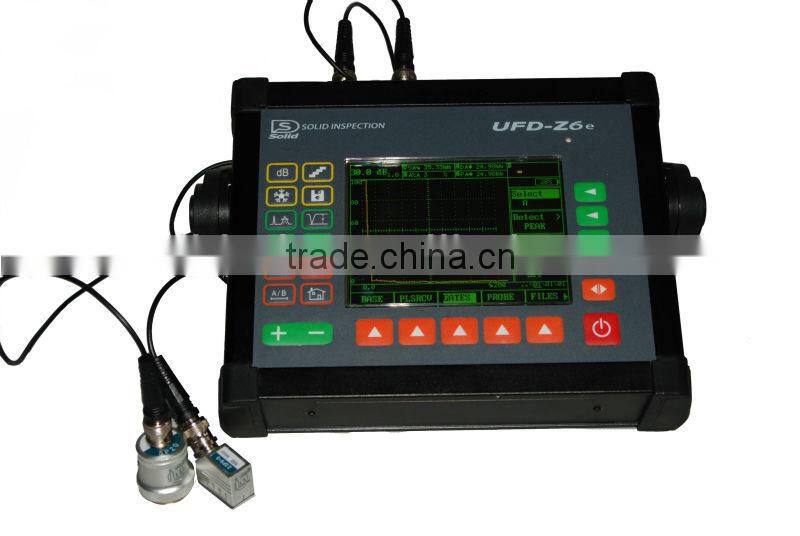

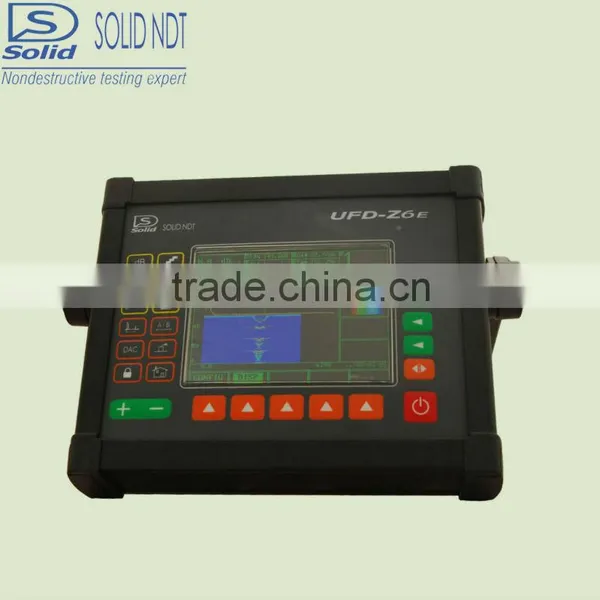

UFD X Series Ultrasonic Flaw Detector could meet a variety of demands with superior features, which include portable, flexible, rapid and accurate.
High cost effective makes X Series be the best choice for developing companies.
OPERATION:

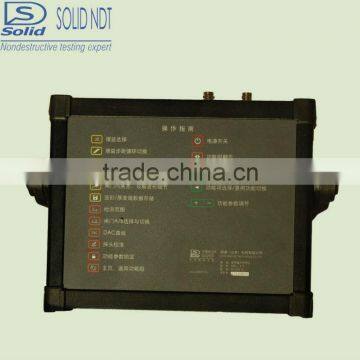

One Function Key, Easily Operation
Ideal Menu Style
Auto Calibration : Velocity, Probe Delay, Angle/ K Value
FUNCTION
USB for Storage ,Plug and Play
Connection USB is allowed, convenient to read thickness values
B Scan-Display Flaw Directly
Reducing analysis difficulty, missing detector and misjudgments
Massive Data Memory
2000 files / 200,000 thickness values/ 5 min video
Economic Choice: Flaw Detector and High Accurate Thickness Measured
5 intelligent DAC curves, comply to JIS and API standard.
DGS curve: Flat bottomed, Flat-bottomed Hhole, Through Holes as references
PERFOMANCE
High accuracy: 10 places for AD sample
Extra-long Standby Time: 20 hours, getting rid of trouble from battery
Display screen could be adjusted to provide 5 optimum
Magnalium alloy coated, AP65 encapsulation, strong and durable, avoiding electro-magnetic interference.
UFD X5 Specification
Measuring Range | 1.0-1,200mm | |||
Measuring Resolution | 0.01mm(< 100mm)/ 1mm(>100mm) | |||
Velocity | 500~20,000m/s( 20 fixed velocities) | |||
Delay | Display Delay: -20~3400us resolution: 0.1us | |||
Probe Delay : 0~99us resolution: 0.01us | |||||||
Auto Calibration | Velocity Calibration& Probe Delay Calibration | ||||||
Linear Error | Horizontal linearity error≤0.1% Vertical linearity error ≤3% | ||||||
Dynamic Range | ≥36dB | ||||||
Sensitivity Leavings | ≥64dB 200mm 2 flat-bottomed hole | ||||||
Dimension (mm) | 240*180*50 | ||||||
Weight | 1.9Kg(including battery pack) | ||||||
Working Environment | Temperature:-20°C~70°C, Humidity:5%~90%, | ||||||
Pulse | 150V Negative Pulse | Damping :50/150/400Ω | |||||
Pulse repetition frequency PRF could be adjusted | |||||||
Receiver | Measuring mode:Peak /Verge | Bandwidth:0.3~1 / 0.5~4 /2~15MHz | |||||
Detector Pattern: RF/Full-Wave/Positive /Negative half- wave | |||||||
Testing Mode: pulse-Echo/Pulser-Receiver/transmission | |||||||
Gain :0 to 110dB Customers define steps 0/0.2/0.5/1/2/6/12 | |||||||
Display | LCD | TFT Color. Display,5 options for variable brightness. | |||||
GUI Theme | Simple/Classical/Gray/Bright Light/ Dark Light | ||||||
Screen Update Rate | ≥60 Hz | ||||||
Gate/Measuring/ Alarm | Gate | Two Separated Gates A/B | |||||
Value Display | 5 value display areas, one of them is mainly area. Chosen measuring content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB | ||||||
Alarm | Thickness Value Threshold Alarm ,Separated Gate Alarm Logically | ||||||
Memory | Channelparameters: 20 groups | A Scan: 2000 groups | |||||
Thickness Logging: 200,000 data sets ,liner | Wave Video: 5 min | Reference Wave:4 | |||||

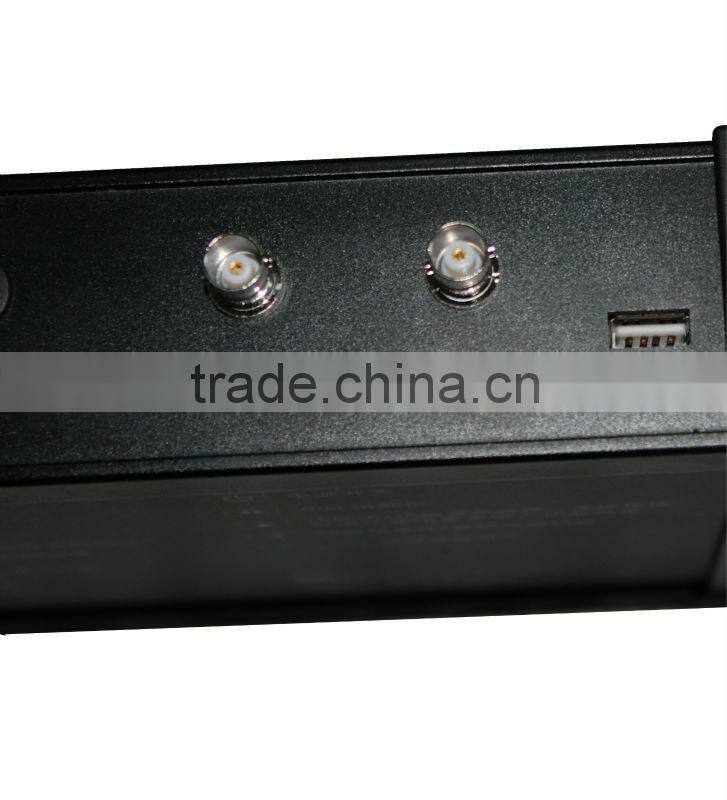

Input/Output | Probe Cable: LEMO/BNC | Communication :RS232 | |||||
Area | Language: Chinese /English | Unit: mm/inch | Clock: Date and Time | ||||
Power Source | Battery:High power lithium battery ,capable of preventing over-charge and over-discharge | ||||||
Power Indicator:Proportional battery gauge indicating remaining operation time | |||||||
Working Time:Continuous working over 10 hours | |||||||
Power adapter:Input 100~240V/50~60Hz output 9VDC/4A | |||||||
High Grade | USB for Storage | 3 kinds of data report, screenshot , wave, thickness value | |||||
Gate: | Analysis the details of the wide gate area | ||||||
B Scan: | Thickness/ Shape scan Gray/Color board Design | ||||||
Freezing Curve | Yes | ||||||
Feature Indicator | Measuring of the sound distance wave front & amplitude | ||||||
CSC Curve Calibration | Value correction according to probe angle, pieces thickness and curvature diameter | ||||||
Lock | Single menu independently lock to avoid system adjust related data; Data group could lock to avoid wrong delete | ||||||
Screen saver | Standby/Character/Power Off | ||||||
Equivalent Curve | DAC curve | Recording 30 calibration points; auto gain; any order calibration; two correction matter calibration/edit ; considering of material attenuation and surface saving factor; 5 estimate curves of adjusted gain, comply to JIS&API standard | |||||
DGS Curve | DGS Curve fits to three references, includes flat bottomed ,flat-bottomed hole, through holes; considering of material attenuation and surface saving factor, estimating flaw matter; equivalent size/equivalent gain/percentage; | ||||||

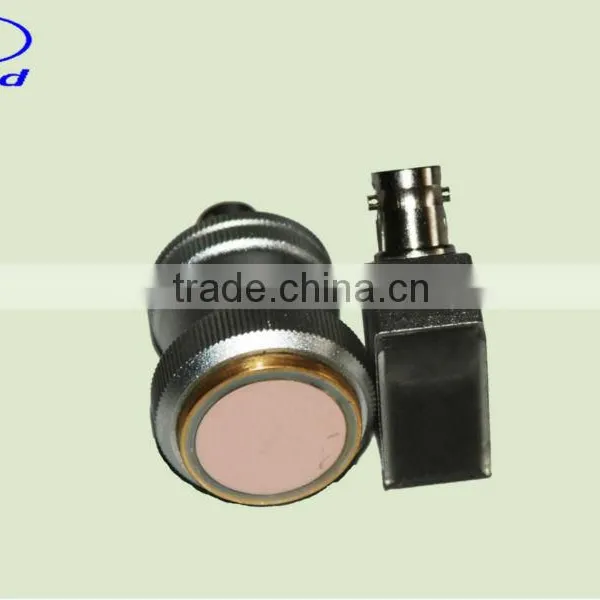

Standard Package | Main Body 1 | Straight probe 1 | Angle probe 1 |
Manuel 1 | Carrying Case 1 | Probe Cable 1 | |
Coupling Paste 1 | Power Adaptor 1 | Battery 1 group | |
Optional Accessories | Interface Gate:Applied when flaw detector in a environment which has medium, e.g water | ||
Printer:TP serial printer , 3 data report: screen shot , wave , thickness value | |||
Huge capacity battery:Continuous working time: over 20 hours | |||
Communication : USB | |||
