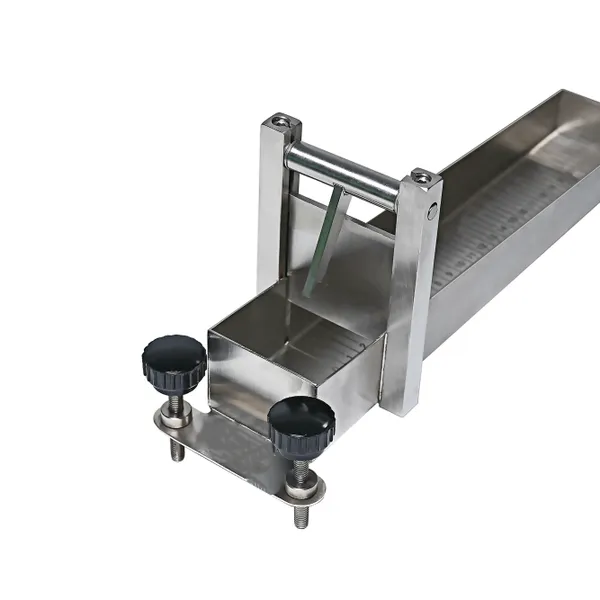

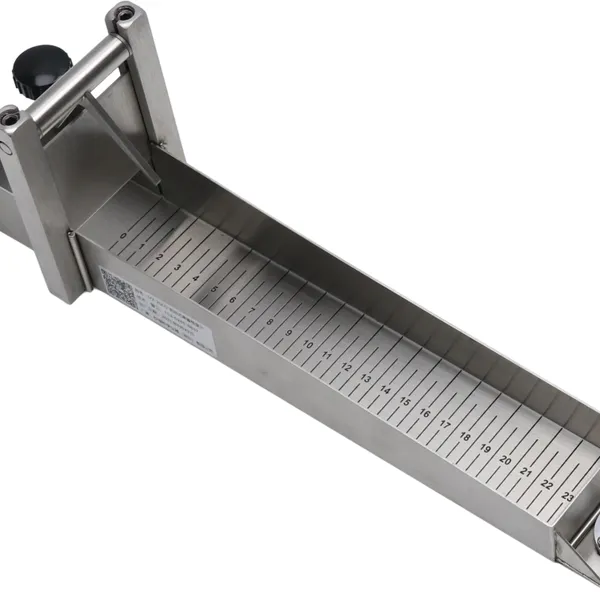

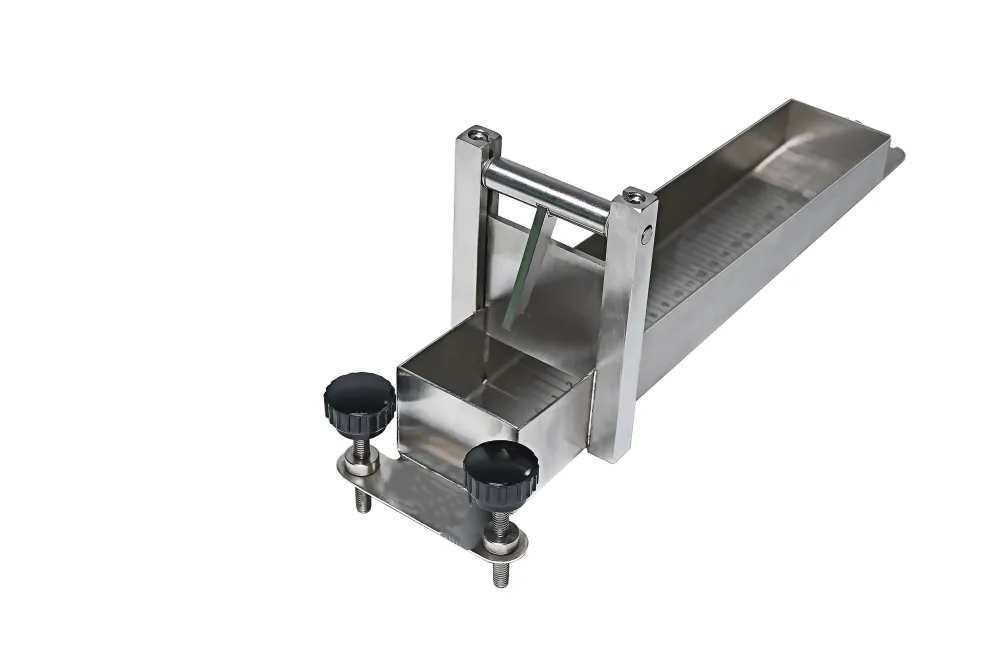

Help CenterShanghai Qige Manufactures Model QGND-25CD Viscometer (Portable Viscosity Tester)
Product Spotlights
Related Products
-
Shang Hai Qi GE QG66013 Digital Display Measuring Instrument for Wire and Cable Insulation Thickness Thickness GaugeUS$ 6500 - 7800MOQ: 1 Combo -
Semi-automatic Wire and Cable Insulation Thickness TesterUS$ 9880 - 12350MOQ: 1 Combo
-
Shanghai Qige Manufactures Model QG60619 Fully Automatic Intelligent Wire and Cable Insulation Thickness Measuring InstrumentUS$ 23350 - 29500MOQ: 1 Combo
-
QGMAYB-K Goldurity Analyzer (Water Drop Method)US$ 980 - 1650MOQ: 1 Combo
-
QGMAYB-K3202K Goldurity Analyzer (Water Drop Method)US$ 1350 - 1950MOQ: 1 Combo
The consistency meter is a general instrument used to determine the texture structure of food. The consistency meter (flowing viscosity meter) of Shanghai Qige Industrial Co., Ltd. has the features of low cost, easy operation and durability. Whether in the laboratory or at the production site, it can quickly detect whether the sample meets the standard viscosity, consistency and fluidity. It is made of 2mm electrolytic treated steel plate and equipped with a standard 100ml sample tank. Internal quality inspection has been carried out to ensure the repeatability of measurement and the harmony between the instruments.
Applicable to: viscosity determination of products such as tomato sauce, fruit sauce, yogurt, oyster sauce, and paste.

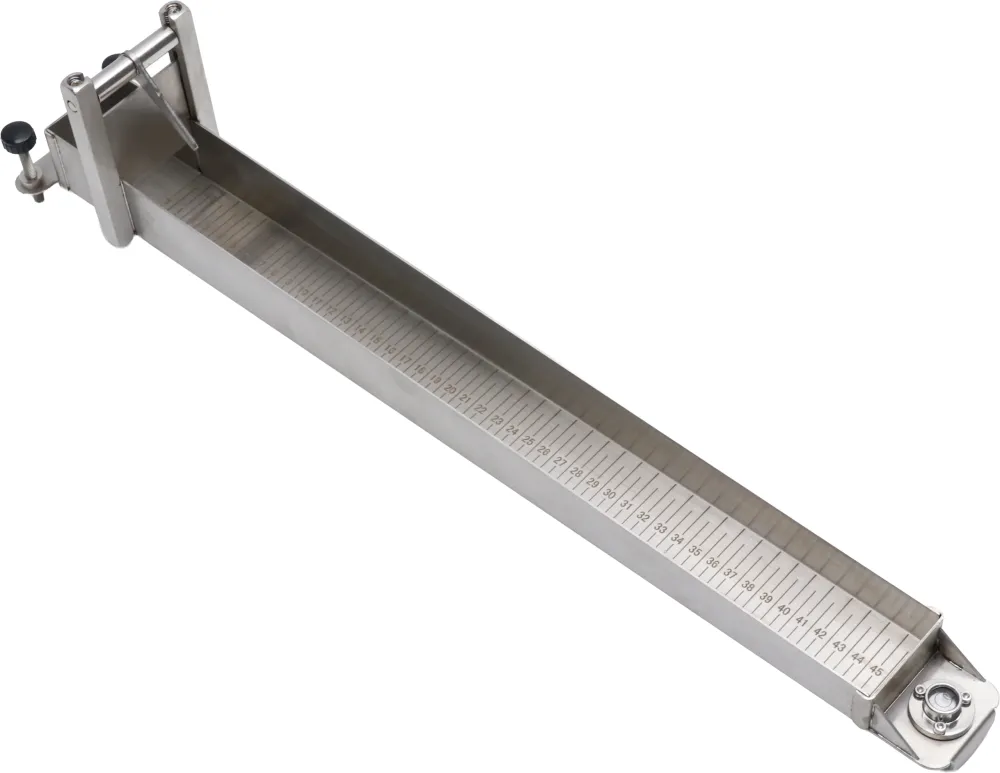

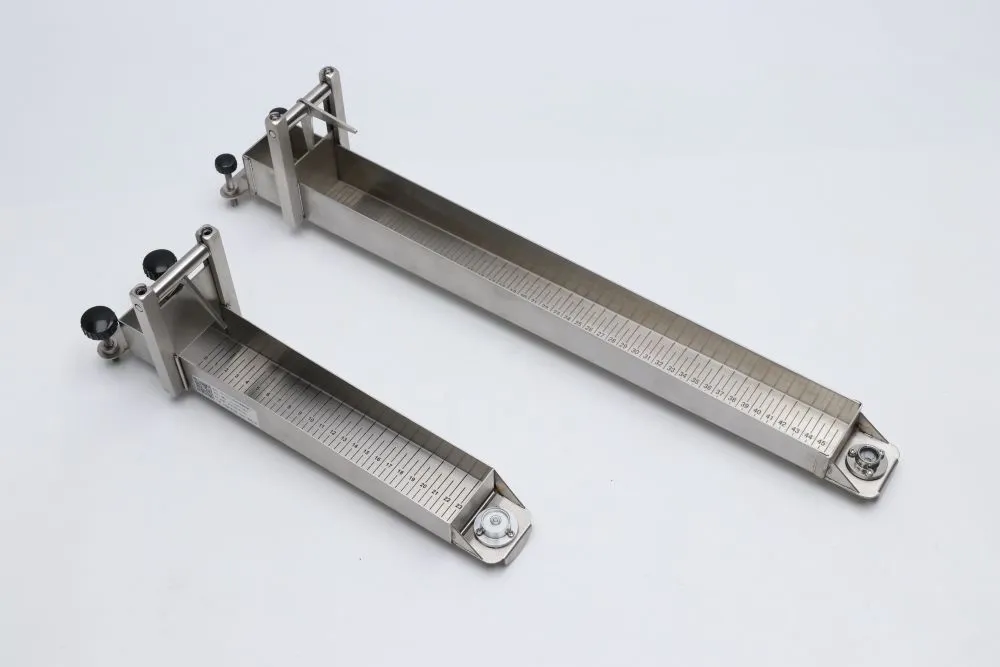

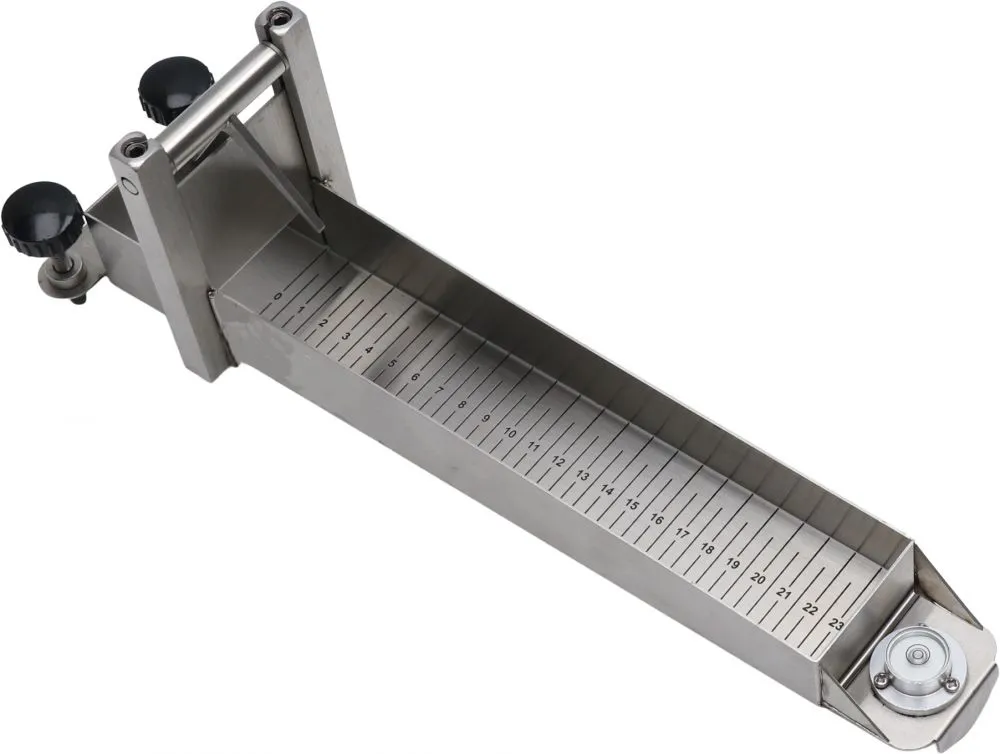

Product parameters (dimensions can be customized: 25cm, 45cm)
Part No.：QG2026001100804
Material |
Stainless steel structure |
Test sample dosage |
It occupies little space and only requires 75ml of sample. |
Usage scenario |
Suitable for use in laboratories and factories |
Leveling |
Two leveling spiral and level gauge |
QGND-25CDsize |
35 cm long x 10 cm wide x 12 cm high |
Precision |
0.5cm precise scale, ensuring accurate results |
Usage instructions
Step 1: Pour the sample to be tested (usually 75ml) into the sample chamber behind the spring door;
Step 2: Press the lock on the spring door to make it spring up instantly, and start timing with a stopwatch at the same time;
Step 3: The progress of the fluid flowing in the instrument can be precisely measured by the precise scale on the base plate. By comparing the flow rate within a specific period of time (usually 30 seconds), the physical properties of the sample (viscosity, fluidity, etc.) can be calculated.
Shanghai Qige Industrial has been deeply engaged in the instrument industry for 18 years. Since its establishment, the company has focused on laboratory instruments, testing instruments, analytical instruments and other related equipment, integrating R&D, production, sales and maintenance as one complete business system. During the first eight years after foundation, we mainly supplied small laboratory instruments, and gradually gained recognition from domestic universities and large manufacturing groups. Later, we built standardized production lines and a full-process quality control system, and set up an international business department simultaneously to handle overseas clients’ certification requirements and export compliance matters.
In the past five years, relying on our mature product line of intelligent equipment, we have launched customized solutions for customers in various regions around the world, and improved our service network covering remote equipment commissioning and long-term technical support for overseas markets. At present, many of our intelligent instruments can fully replace imported counterparts. Our products are exported to numerous countries, serving scientific research institutions and factory quality control workshops globally. With 18 years of dedicated industry experience, we always take technological innovation and consistent stable quality as our core foundation, and keep supplying cost-effective precision testing instruments for partners across the world.
