Welding Ultrasonic Flaw Detector

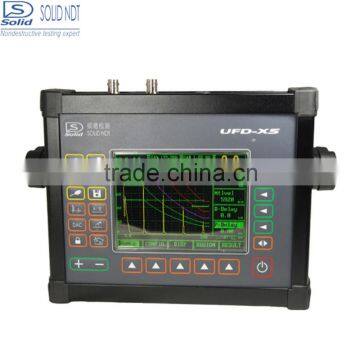

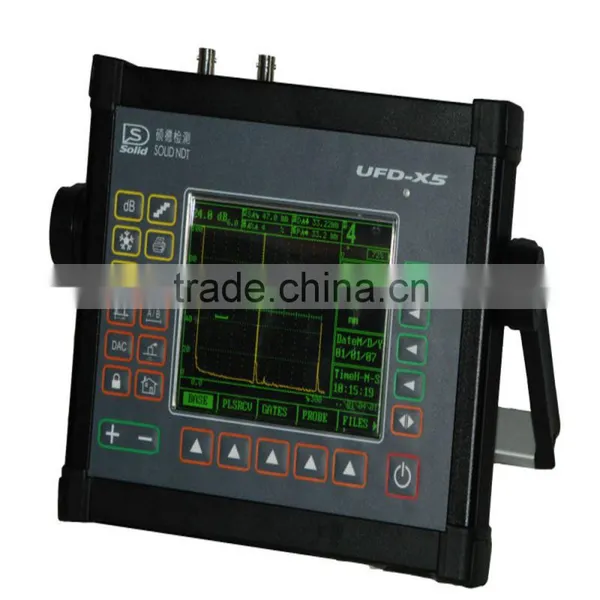

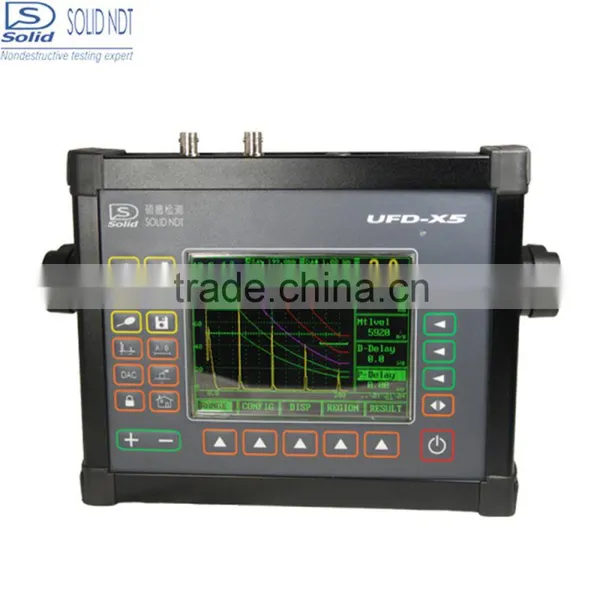

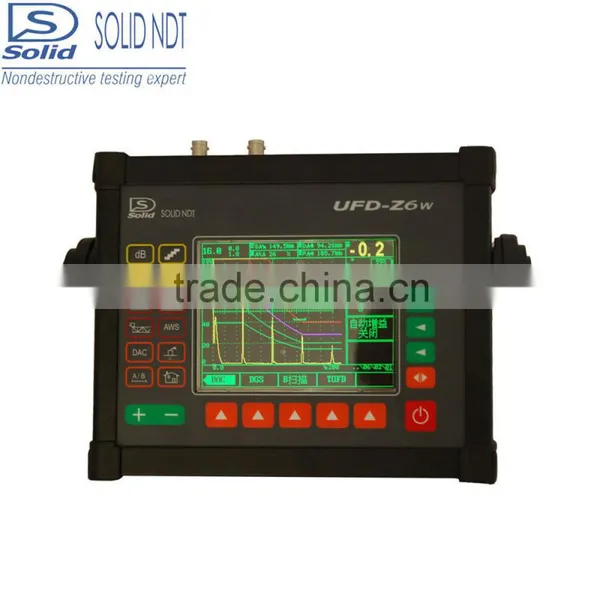

Solid 2016 Newest UFD X Series Ultrasonic Flaw Detector
Digital portable ultrasonic flaw detector could meet a variety of demands with superior features, which include portable, flexible, rapid and accurate.
High cost effective makes X Series be the best choice for developing companies.
Specification
Measuring range |
1.0~15000mm |
Resolution |
0.01mm(<100mm) 1mm(>100mm) |
Velocity |
500~2000m/s 20 fixed sound velocity |
Display delay |
-20~3400us resolution: 0.1us |
Probe delay |
0~99us resolution: 0.01us |
Auto calibration |
Measurement and setting of sound velocity and probe delay using two known calibration echoes (2-point calibration ) |
Linear error |
Horizontal linearity error≤0.1% Vertical linearity error ≤3% |
Dynamic range |
≥36dB |
Sensitivity leavings |
≥64dB 200mm2 flat-bottomed hole |
Weight |
1.9Kg(including battery pack) |
Drive Pulse |
Negative pulse/Square Wave |
Pulse Width |
50~2000ns |
Pulse Amplitude |
50-500v |
Pulse repetition frequency |
Pulse repetition frequency PRF could be adjusted |
Damping |
50/150/250/400Ω |
Testing mode |
Pulse echo/ transmitting and receiving /transmission |
Measuring mode |
Peak /Verge |
Gain |
0 to 110dB Customers define steps 0/0.2/0.5/1/2/6/12 |
Detector Pattern |
RF/full-wave/positive /negative half- wave |
Frequency bandwidth |
0.3~1 / 0.5~4 /2~15MHz broad band filter 1/2.5/5/10/15 MHz narrow band filter |
LCD |
Wide temperature high-light TET color LCD 5.7" industrial class |
Backlight |
5 grades could be chosen |
Display refresh frequency |
Not less than 60Hz |
GUI theme |
5 GUI color themes: simple/classical/gray/bright light/ dark light, Customers could choose theme by setting color of characters ,A wave scan , coordinate color ,background |
Gate |
Two separated gates A/B |
Measuring Value |
5 value display areas, one of them is mainly area. Chosen measuring content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB |
Alarm |
All gates could alarm logically and independently |
Channel parameters |
20 groups |
A-scan wave |
3,200 group |
Thickness value |
320,000,linear |
Wave Video |
10 min |
Reference wave |
4 |
Probe cable |
LEMO/BNC |
Communication |
RS232/USB |
Time |
Real time date and time |
Language |
Chinese ,English |
Unit |
mm/inch |
Battery |
High power lithium battery ,capable of preventing over-charge and over-discharge |
Power Indicator |
Monitor power based on coulombmeter , showing remaining capacity of battery via percentage and battery life |
Working time |
Continuous working over 20 hours |
Power adapter |
Input 100~240V/50~60Hz output 9VDC/4A |
Dynamic Echo |
Digital Nature, Simulation Perfermance |
Grate |
Analysis the details of the wide gate area |
two-dimensional coding B scanning |
Thickness/ Shape scanning Gray/Color board Design |
Echo Coding |
Two chosen coding matter: coordinate/waveform, it is convenient to calculate span |
Freezing Curve |
All/peak value/contract/envelope/delay envelope |
Feature Indicator |
Measuring of the sound distance wave front & amplitude |
CSC Curve Calibration |
Value correction according to probe angle, thickness of pieces and curvature diameter |
Lock |
Single menu independently lock to avoid system adjust related data; Data group could lock to avoid wrong delete |
Screen saver |
Standby/Character/Power Off |
DAC curve |
Recording 30 calibration points; auto gain; any order calibration; two correction matter calibration/edit ; considering of material attenuation and surface saving factor; 5 estimate curves of adjusted gain, comply to JIS&API standard |
DGS Curve |
DGS Curve fits to three references , includes flat bottomed ,flat-bottomed hole, through holes; considering of material attenuation and surface saving factor, estimating flaw matter; equivalent size/equivalent gain/percentage; |
Standard Package | |
Main Body |
1 |

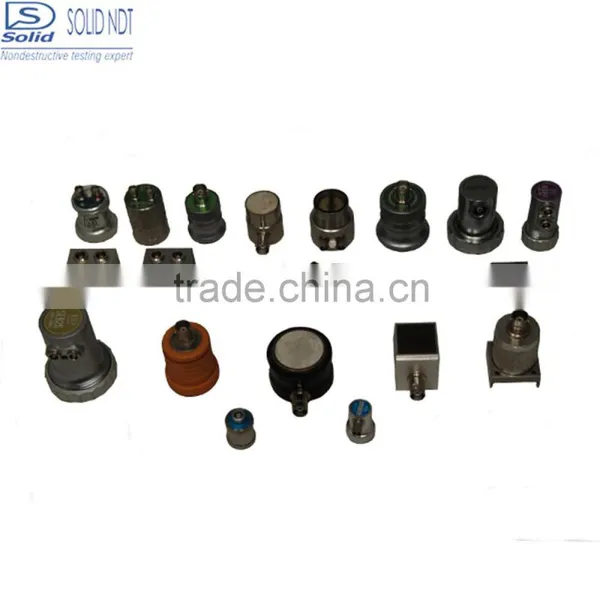

Straight /Angle probe |
2 |
Probe Cable |
1 |
Power adaptor |
1 |
Battery |
1 group |
Operating manual |
1 |

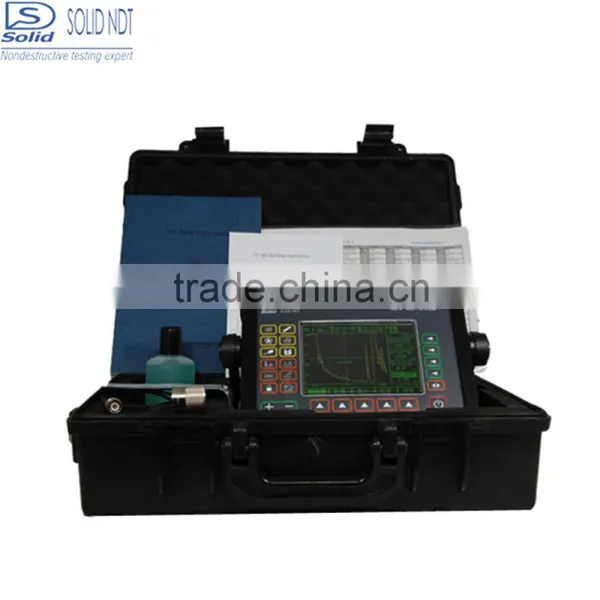

Carrying case |
1 |
Coupling Paste |
1 bottle |
