Specifications
1. good performance and stability2. high accuracy
3. imported material
4. different installation method
Product Description
MD-3051 series online liquid level densitometer can
be used for online density measurement of various liquid
and liquid mixture. It is widely applied to the petrochemical
industry, food industry, dairy industry, paper industry,
chemical industry, biopharmaceutical industry and other
production sites.
Specific Applied Scopes as Below
1. the measurement of petroleum, natural gas, mining salt,
oil refining, oil and water interface detection in the
petrochemical industry
2. the measurement of grape juice, tomato juice, fruit
syrup, vegetable oil wine alcohol and soft drink
processing in the food and dairy industry
3. the measurement of black pulp, green pulp, white pulp
and alkali solution in the paper industry
4. the measurement of urea, detergents, ethylene glycol,
lubricating oil, acid solution and polymer
Main Features
1.integrated structure transmitter with two-wire, no
moving parts and maintain easily
2. four and a half digital LCD display
3. easy to install and use, display the digital as long as it is
inserted into the liquid
4. for use in fluid or stationary liquid, and suitable for
internal installation of pipes and tanks
5. two parameters ( temperature and density ) can be
alternately displayed, for easy conversion of industry
standard density
6. continuous online measurement of liquid density during
non-interrupted process, can be directly used in the
process control of production
7.stainless steel wetted components, safe and reliable
8. safe type for use in hazardous environments, hygienic
type for use in food production site
Technical Parameters
1. Current Output: 4 ~ 20mA
2. Digital Signal: HART protocol
3. Power Supply: 16 ~ 30V DC (24V DC is recommended)
4. Density Range: 0 to 2 g/cm3, 0 to 3 g / cm3
5. Accuracy: 0.001 g / cm3
6. Resolution: 0.0005 g/cm3
7. Temperature Range: 0 ~ 100 °C
8. Temperature Accuracy: 0.2 °C
9. Ambient Temperature: -10 ~ 60 °C
10. Humidity Range: 0 ~ 90%
Notes

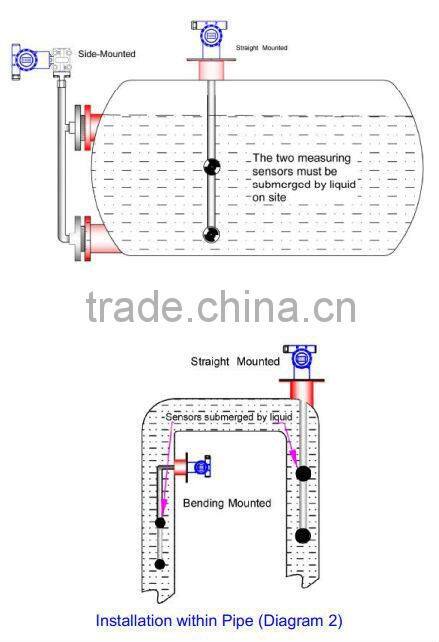

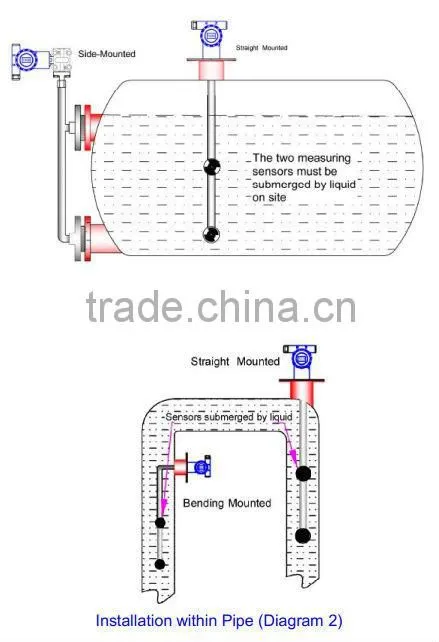

1.The spacing between two sensors of the online liquid level
densitometer should be at least 200mm, and the diameter is
50mm. Its size on site should not be less than the standard. If
you select the bending type densitometer, please measure the
size of flanges and the length of pipes inserted into the liquid.
2.The two measuring sensors must be submerged by liquid on
site. Also the spacing between the first sensor and the flange
can be selected.
3. MD3051 online liquid level densitometer can theoretically
measure the density of different media. Users can convert the
density results according to the situation on site.
4. The red parts in the diagrams are mounted matching flange,
we can install it for users. If necessary, please indicate if the
matching flange is needed when ordering.
