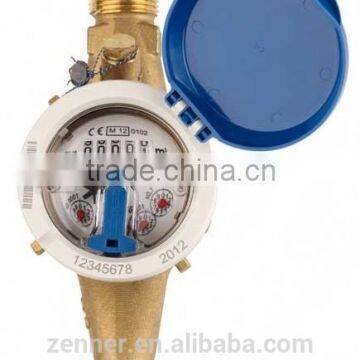

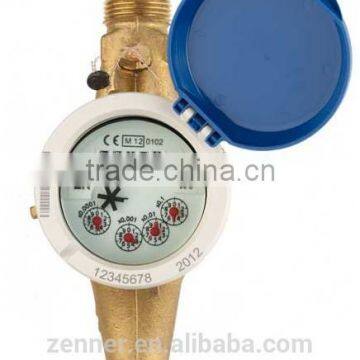

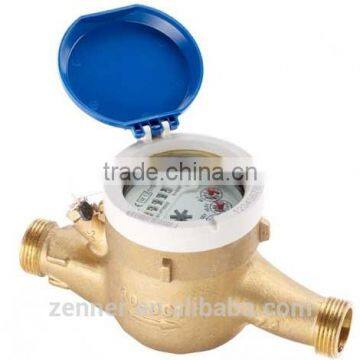

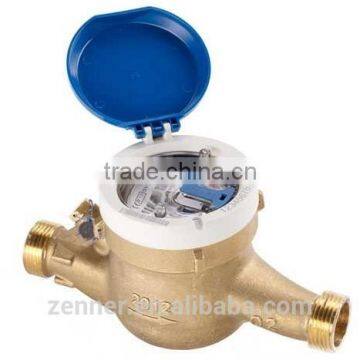

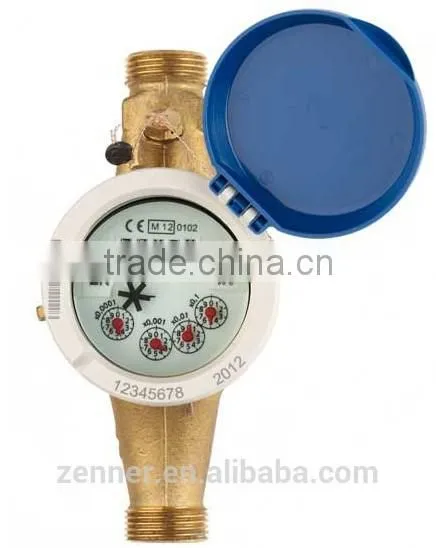

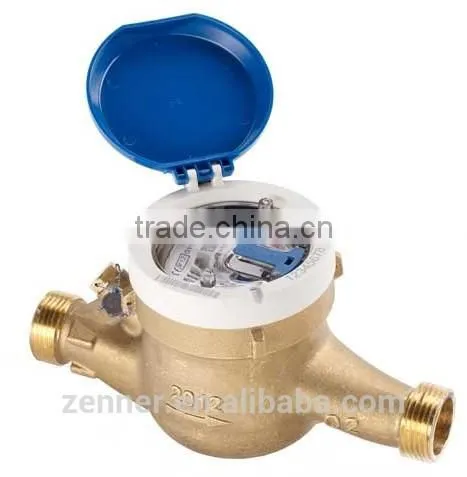

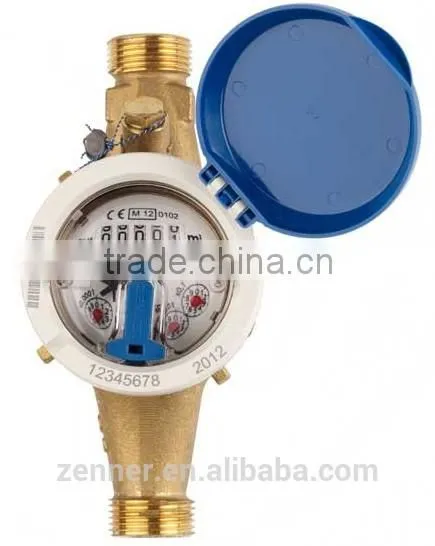

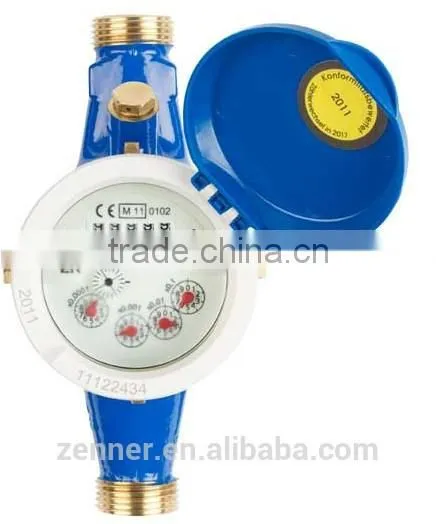

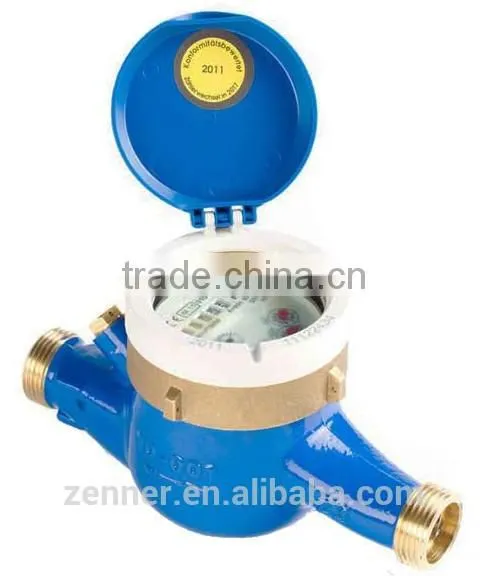

MNK and MNK-N
Proven by the million, thanks to a high level of precision and a long service life
The multi-jet wet dial meter for cold water - an ideal domestic water meter for tamper-proof, high-precision consumption measurement.
The ZENNER MNK water meter is an MID-compliant residential water meter, proven by the million, for service connection. Continuous further development guarantees the most precise measurement results and the best long-term stability.
Its construction, thought out right down to the last detail, guarantees outstanding performance characteristics, minimum bearing loads and a long service life for the MNK water meter.

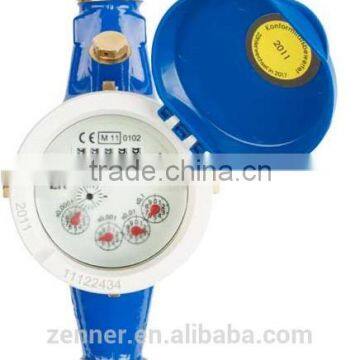

The MNK is available with an uncoated brass body as a standard (optionally with a powder-coated brass body).
The Version MNK-N is retrofittable with pulser (reed) for remote readout systems.
Performance Characteristics
- Wet dial counter construction
- Proven water meter, used by the million worldwide
- High-quality mineral glass inspection window, optional: UV-resistant plastic
- Water meter for horizontal or vertical installation
- Version MNK-N is retrofittable with pulser (Reed) for remote readout
- Water meter approved in accordance with MID
Product Features
| Measuring Principle | Multi-Jet Meters |
| Register | Wet Dial |
| Length without connectors | 110 mm 115 mm 145 mm 165 mm 175 mm 190 mm 200 mm 220 mm 260 mm 300 mm |
| Housing Material | Brass |
| Nominal Flow Q3 (≈ Qn) | Q3=2,5 (≈ Qn 1,5) Q3=4 (≈ Qn 2,5) Q3=6,3 (≈ Qn 3,5) Q3=10 (≈ Qn 6) Q3=16 (≈ Qn 10) Q3=25 (≈ Qn 15) |
| Nominal Diameter DN (mm) | DN 15 DN 20 DN 25 DN 32 DN 40 DN 50 |
| Nominal Diameter (inch) | 3/4 " 1" 1 1/4" 1 1/2" 2" |
| Temperature | Cold Water up to 30° C Safe up to 50° C |
| Specified Units on Display | Cubik Meters (m³) |
| Additional Options | Mineral Glas |
| AMR Technologies | Reed Pulser |
| Metrological Class horizontal (max.) | R 200 |
| Metrological Class vertical (max.) | R 80 |
| Operating Pressure (max.) | PN 16 |
