MNK-RP-L

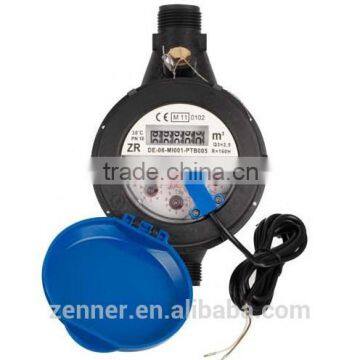

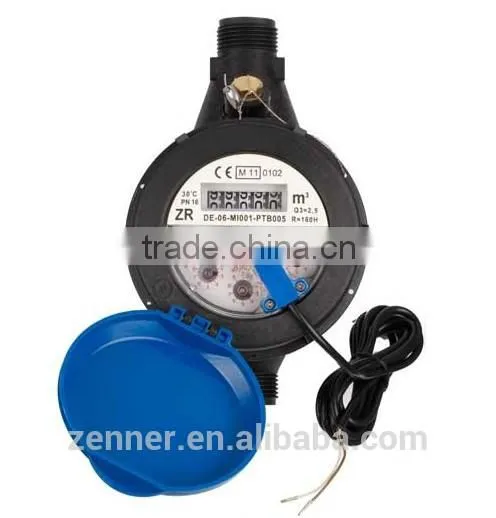

Water meter with protected indicator wheels in a composite housing
The MNK-L-RP is a Multi-jet wet dial water meter for cold potable water with protected rollers
The new series of our multi-jet wet dial meter are an improvement of the classical MNK-RP. Our developers succeeded in combining the millionfold proven and high-precise measuring insert of the MNK with a body of pressure-tight polymer composite plastic, suitable for use with potable water. The result is the innovative MNK-L-RP.
Its main features are a low starting flow and reliable performance even with aggressive water qualities or dezincification effects. The protected roller counter is reliably readable even under demanding climatic conditions.
The construction principle of the MNK-L-RP with direct transmission from the measuring chamber to the counter ensures by standard protection against manipulation attempts or interference.
The version MNK-L-RP-N is retrofittable with pulser (reed) for remote readout systems.
Performance Characteristics
- Light, robust and well-designed
- Almost 50% lighter than a meter with a brass housing
- Housing made from high-quality UV-resistant polymer composite
- Operating temperature up to 30°C, accurate to 50°C
- Operating pressure PN 10
- Display range from 0.5 l to 99,999 cubic metres
- Version MNK-L-RP-N is retrofittable with pulser (reed) for remote readout
- Approved in accordance with MID
Product Features
| Length without connectors | 165 mm 190 mm |
| Housing Material | Plastic |
| Nominal Flow Q3 (≈ Qn) | Q3=2,5 (≈ Qn 1,5) Q3=4 (≈ Qn 2,5) |
| Nominal Diameter DN (mm) | DN 15 DN 20 |
| Nominal Diameter (inch) | 1/2 " 3/4 " |
| Register | Wet Dial with protected Rollers |
| Measuring Principle | Multi-Jet Meters |
| Temperature | Cold Water up to 30° C Safe up to 50° C |
| Specified Units on Display | Cubik Meters (m³) |
| AMR Technologies | Reed Pulser Hall Sensor |
| Metrological Class horizontal (max.) | R 100 |
| Operating Pressure (max.) | PN 10 |
