MTKD-L
Equipped with the new D-register - MTKD in a composimulti-jte housing

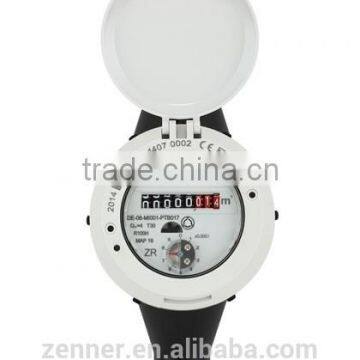

The MTKD-L is a multi-jet dry dial meter for cold water with an innovative composite housing
The new series of our multi-jet dry dial meter are an improvement of the classical MTK. Its main features are a low starting flow and reliable performance even with aggressive water qualities or dezincification effects. Constant development guarantees accurate measuring results and the best long-term stability.
The MTKD-L is equipped with the new ZENNER D-register and ready for all future AMR-applications. MTKD-L is available in two versions: MTKD-L-N with 7-digit rollers and magnet pointer for pulse output. MTKD-L-M with 8-digit rollers register and modulator disc for non-reactive scanning for radio, M-Bus or pulse.
Performance Characteristics
- Almost 50% lighter than a meter with a brass housing
- Housing made from high-quality UV-resistant polymer composite
- Dry dial register with shielded magnetic coupling
- Rotatable and individually inscribable lidring
- Operating temperature up to 30°C, optional up to 50°C
- Operating pressure PN 10
- Water meter for horizontal and vertical installation
- Register available as copper can version (IP 68)
- Version MTKD-L-N with pulse output (reed) for remote readout
- Standard pulse value 10 l/pulse, optional 1 l/pulse available
- Version MTKD-L-M with modulator disc for non-reactive scanning
- Approved in accordance with MID
Product Features
| Length without connectors | 165 mm 170 mm 190 mm |
| Housing Material | Plastic |
| Nominal Flow Q3 (≈ Qn) | Q3=2,5 (≈ Qn 1,5) Q3=4 (≈ Qn 2,5) |
| Nominal Diameter DN (mm) | DN 15 DN 20 |
| Register | Dry Dial Dry Dial protection class IP 68 |
| Nominal Diameter (inch) | 1/2 " 3/4 " |
| Measuring Principle | Multi-Jet Meters |
| Temperature | Cold Water up to 30° C |
| Specified Units on Display | Cubik Meters (m³) |
| Additional Options | Anti-Magnet-Protection Copper Can (IP 68) Nano Coating (Antifog) Salt Bag (Antifog) Wiper for lens (Antifog) |
| AMR Technologies | Reed Pulser Electronic Pulser M-Bus Radio via wireless M-Bus |
| Metrological Class horizontal (max.) | R 160 |
| Metrological Class vertical (max.) | R 40 |
| Operating Pressure (max.) | PN 10 |
