Specifications
Ultrasonic Water Meter1 professional manufacturer
2 quick shipment
3 CEcertification

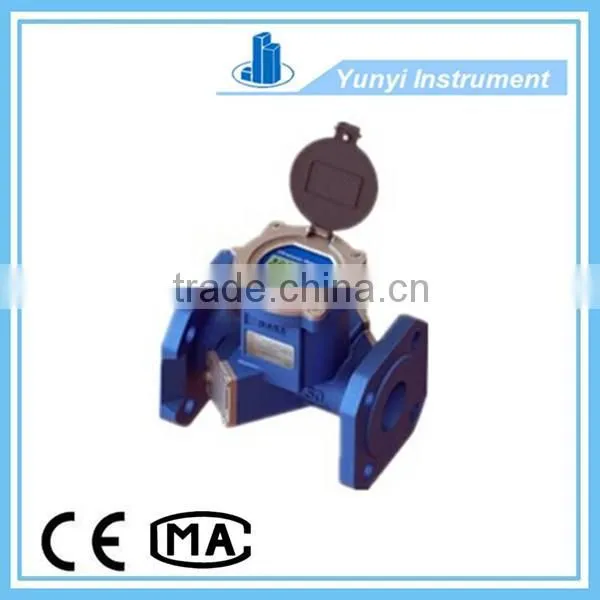

Ultrasonic Water Meter
Technical data:
Item |
Data sheet |
Instrument Class |
Class Ⅱ |
Medium |
Water,sewage,seawater(Other liquid need to customize), liquid should be full with pipe |
Medium Temperature |
0.1-30°C |
Working Environment |
Temperature:-10~45°C;Humidity≤100%(RH) |
Max Pressure |
1.6MPa/2.5MPa |
Structure Formation |
Integrated |
|
Safe Class of Climate and Mechanical Environment |
Class C |
Electromagnetic Compatibility Class |
Class E2 |
Communication Interface |
RS485/USART/Infrared |
Output Signal |
Two Channel OCT puls output/TTL pulse output/4-20mA analog output |
Power Supply |
Built-in Lithium Battery (3.6,19AhV)/DC8~36V power supply |
Protection Class |
IP68 |
Digital Display |
Multi line 9 digital LCD display cumulative flow, 4 digital display for instantaneous flow, varise of state prompt and unit |
Data Storage |
EEPROM/FLASH |
Measurement Cycle |
Normal status:1times/second; Check and calibration status:4 times/second |
Power Consumption |
<2.7AH/YEAR |
Feature
1 Initiating flow lower to millimeter grade
2 Multi-line 9 digital LCD dispaly accumulative flow and 4 digital for instantaneous flow
3 High reliability design,no moving part
4 Two channel isolated pulse output,pulse equivalent and output pulse can be arbitrary customed
5 Two-wired system 4-20mA output optional
6 Built-in Lithium battery for 6 years life expectancy
7 It can automatic power saving under empty pipe or the liquid static for a long time
8 Resin vacuum sealed IP68 for long life and high expectancy
9 Chronological cumulative record
10 Standard RS485 interface
11 Infrared communication interface,support CJ-188 communication
12 Support MODBUS,M-BUS communication protocol
13 TTL levels pulse output and USART interface,convenient to connect the low power consumption equipment
14 With the two channel PT1000 temperature transducer, which can realize the heat measurement
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this Ultrasonic Water Meter , please visit the website
