MTKD-S
Innovation meets precision - the MTKD-S in a lightweight brass body

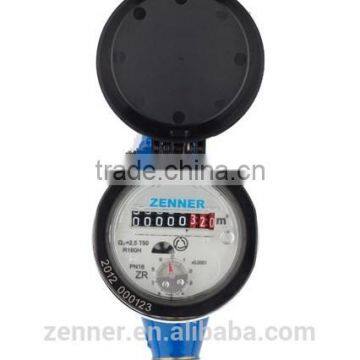

The MTKD-S is a compact dry dial multi-jet meter for cold potable water with a lightweight brass body.
The new series of our multi-jet dry dial meters are an improvement of the millionfold proved MTK.

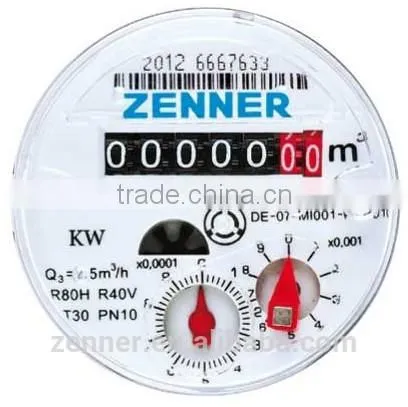

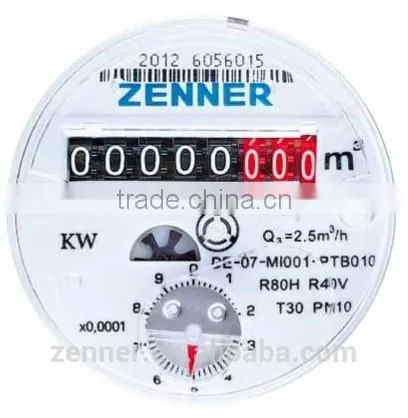

The newly developed dry dial counter with tamper-proof magnet coupling is available in a number of model (wiper function, number of digit rolls, Copper-Can model). Our developers succeeded in reducing substantially the weight of the brass body - with positive effects on the measuring quality. The innovation is called MTKD-S, where the "S" stands for small body.
Multi-jet dry dial meters are used, where the water can be charged with particles. Due to the completely encapsulated counter, the meter works perfectly with almost any potable water quality and under challenging ambient conditions. MTKD-S is by default protected against interference and manipulation attempts with one of the most sophisticated protection concepts.
The MTKD-M makes a technical leap forward in development with its newly developed modulator disc. This makes possible non-reactive, electronic scanning with a variable resolution and is the basis for remote reading via radio, M bus or pulse module.
Performance Characteristics
- Rugged, light and intelligently conceived
- Approx. 25% less weight than WVG brass bodies
- Comprehensive manipulation protection in standard version
- Prepared for remote reading in standard version
- Optionally: counter for Copper-Can version
- Display range from 0.5 l to 99,999 cubic metres
- Operating temperature 30°C, with security up to 50°C
- Nominal Pressure PN 16
- Version MTKD-S-N with pulse output (reed) for remote read-out systems
- Standard pulse value 10 l/pulse, optional 1 l/pulse available
- Version MTKD-S-M with modulator disc for non-reactive scanning for radio, M bus or pulse
- Approved in accordance with MID
Product Features
| Length without connectors | 165 mm 190 mm |
| Housing Material | Brass |
| Nominal Flow Q3 (≈ Qn) | Q3=2,5 (≈ Qn 1,5) Q3=4 (≈ Qn 2,5) |
| Nominal Diameter DN (mm) | DN 15 DN 20 |
| Register | Dry Dial Dry Dial protection class IP 68 |
| Nominal Diameter (inch) | 3/4 " 1" |
| Measuring Principle | Multi-Jet Meters |
| Temperature | Safe up to 50° C |
| Specified Units on Display | Cubik Meters (m³) |
| Additional Options | Anti-Magnet-Protection Copper Can (IP 68) Modulator Disc for inductive sensors Nano Coating (Antifog) Ultrasonic Welding (IP 67) Wiper for lens (Antifog) |
| AMR Technologies | Reed Pulser Electronic Pulser M-Bus Radio via wireless M-Bus |
| Metrological Class horizontal (max.) | R 160 |
| Operating Pressure (max.) | PN 16 |
