Help CenterWater Meters ETKD and ETWD
Related Products

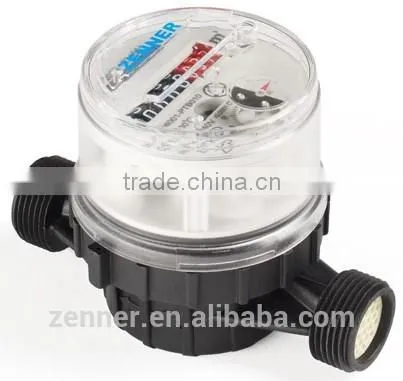

ETKD/ETWD is a single-jet dry dial water meter for cold and hot water
The counter of the new EKTD has been conceptually newly thought through and technically refined. The result is a counter with a shielded magnetic coupling which delivers virtually perfect results in terms of precision and measuring stability. Thanks to a wide range of technical options, the EKTD is optimally equipped for the future.
The EKTD makes a technical leap forward in development with its newly developed modulator disc. This makes possible non-reactive, electronic scanning with a variable resolution and is the basis for remote reading via radio, M bus or pulse module.
Pulse-ready

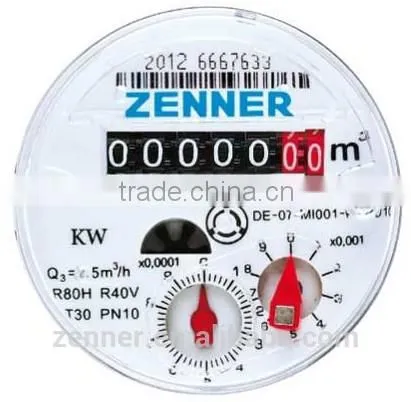

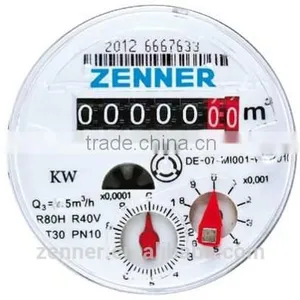

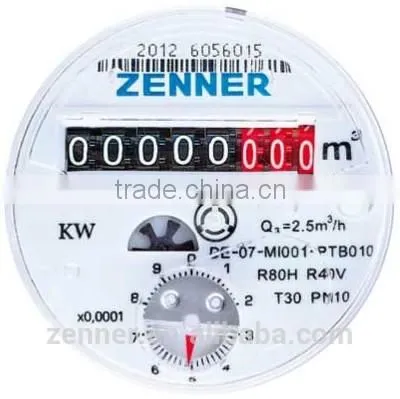

Both the ETKD 7 reel model with magnetic counter and the 8 reel model with modulator disc provide the option of reading the counter data remotely.
M bus-ready
Using a special add-on M bus module, the ETKD 8 reel counter model with modulator disc can be integrated into an M bus system, in which all counters on a property are connected together and can be read centrally.
Radio-ready
With the addition of an add-on radio module, the ETKD model with modulator disc and 8 reel counter can be read via radio (WM bus as per OMS). A radio module transmits the counter data to a radio modem and these are relayed to a PC or hand-held computer via Bluetooth.
Performance Characteristics
- Dry dial counter with shielded magnetic coupling
- Counter equipped with 8 reels as standard
- Non-reactive scanning for radio, M bus or pulse
- Counter can be turned through 355°
- Pressure stage PN 10
- Body available as copper can version (IP 68)
- Can be installed horizontally or vertically
- Approved by MID
Product Features
| Measuring Principle | Single-Jet Meters |
| Length without connectors | 80 mm 110 mm 130 mm |
| Housing Material | Brass |
| Register | Dry Dial |
| Nominal Flow Q3 (≈ Qn) | Q3=2,5 (≈ Qn 1,5) Q3=4 (≈ Qn 2,5) |
| Nominal Diameter DN (mm) | DN 15 DN 20 |
| Nominal Diameter (inch) | 1/2 " 3/4 " |
| Temperature | Cold Water up to 30° C Safe up to 50° C Hot sanitary water up to 90° C |
| Specified Units on Display | Cubik Meters (m³) |
| Additional Options | Anti-Magnet-Protection Protection Cap Copper Can (IP 68) Modulator Disc for inductive sensors Nano Coating (Antifog) Wiper for lens (Antifog) |
| AMR Technologies | Reed Pulser Electronic Pulser M-Bus Radio via wireless M-Bus |
| Metrological Class horizontal (max.) | R 80 |
| Metrological Class vertical (max.) | R 40 |
| Operating Pressure (max.) | PN 16 |
