2 Pin Pcb Push Button Switch Double Pole Micro Switch
- Shenzhen HK
- Money Gram Credit Card
You May Like
-
Micro Pressure Switches 12 Volt With Lever
-
Zing Ear Factory Supply Micro Switch,high Quality Basic Waterproof Switch Button
-
12VDC Waterproof Automotive Switch,auto on off Switch,auto on off Light Switch
-
12VDC 20mA Auto Mini Micro Switch
-
0.1A 12V DC Rotary Detector Switch
-
Trade Assurance 5A Normally Open Door Low Voltage Limit Switch
Product Details
| Place of Origin | Guangdong, China | Brand Name | ZING EAR | |
| Model Number | G1,G17 | Max. Current | 0.1A | |
| Max. Voltage | 12VDC | Operating Temperature | -40℃~+85℃ | |
| Protection Level | IP67 |
Product Description

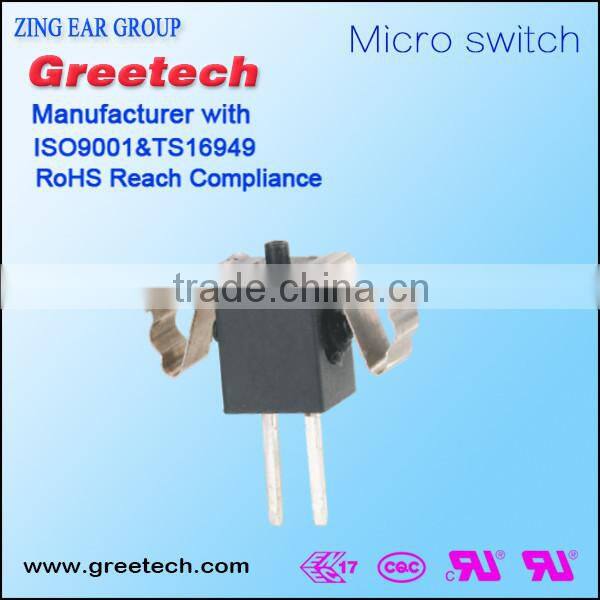

2 pin pcb push button switch double pole micro switch

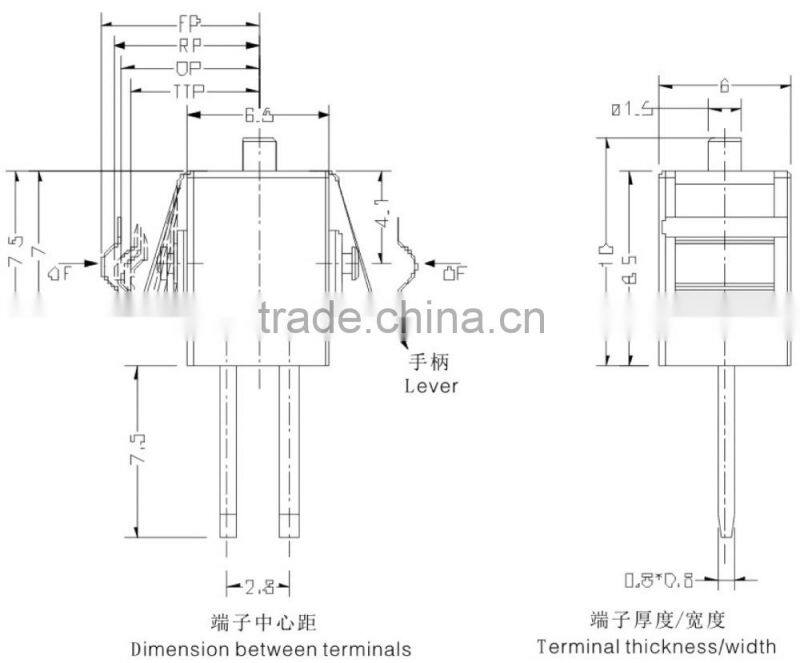

Drawing:

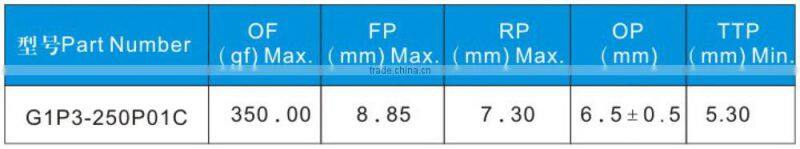

Operating Characteristics:
Parameters:
| Rating | 12VDC 20uA~20mA | |
| Operating Frequency | Electrical | 20 cycles/minute |
| Mechanical | 120 cycles/minute | |
| Contact Resistance(Initiative) | <200mΩ | |
| Insulation Resistance(at 500VDC) | >10MΩ | |
| Vibration durability | 10~55Hz,Amplitude 1.5m | |
| Unit weight | 0.85g | |
| Storage Temperature | -40℃-+85℃ | |
| Storage Humidity | 85% RH Max | |
| Service Life | Electrical | 100,000cycles |
| Mechanical | 100,000cycles | |
Basic package information:
Ship way:
Greetech advantage:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certifications:
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A) Yes, free samples could be provided within 2-5 days.
Q5, What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
2 pin pcb push button switch double pole micro switch
