DC5V 1mA 9mm Red Encoder

FOB Price

US$ 0.385 - 0.497 / Piece

1000 Pieces(Min. Order)

Port Shenzhen Guangzhou HK
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	ZING EAR
Model Number	GT1000C224A	Max. Current	0.1mA
Max. Voltage	DC5V 1mA	Operating Temperature	-25℃~+85℃
Protection Level	IP67

Product Description

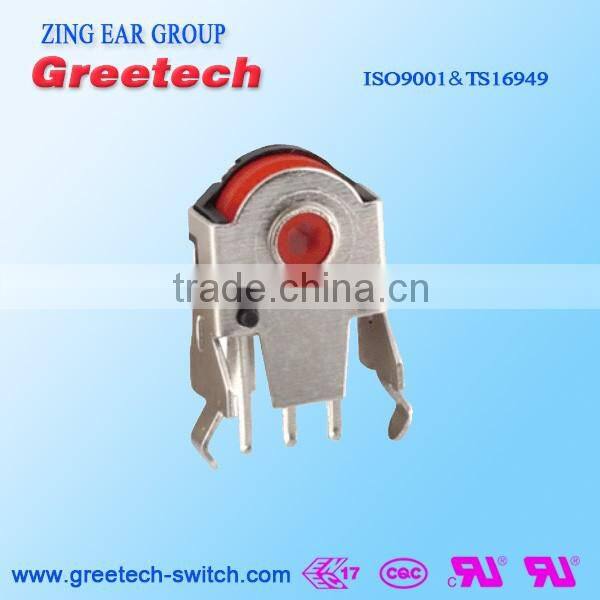

DC5V 1mA 9mm red encoder

Product Description

Feature

- 24clicks 12 pulses, 12 clicks 12 pulses

- Life could reach more than 200,000 cycles.

- Through the integration of the good-felt tooth institutions to improve the reliablility of the operation.

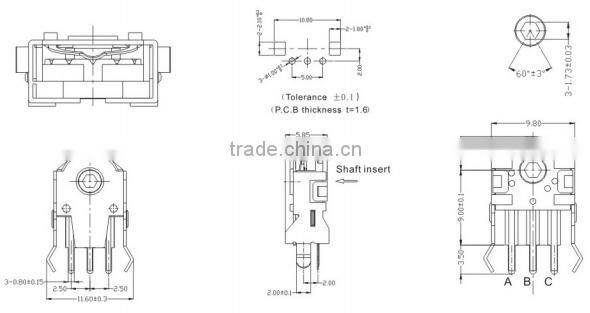

Drawing

Parameteres:

Electrical Characteristics	Rating	DC5V 1mA
	Contact Resistance	200m Ω Max
	Insulation Resistence	50m Ω Min
	Voltage Proof	AC50V(50-60Hz) 1 Minute
	Eletrical Life	200,000cycles(Min)
Mechanical Reliability Characteristics	Detent Torque	See Detail Spec
	Mechanical Life	200,000cycles(Min)
	Storage Humidity	-25 ℃ ~ +85 ℃
	Storage Humidity	≤ 85% RH
	Solder Ability	245℃ ± 5 ℃ 3s ± 5s
	Solder Heat Resistance	260 ℃ ± 5 ℃ 3s ± 1s

Application:

Car Audio Epuipment	Stereo Headphones
Cellular Phone	Camera
Personal Digital	Mouse

Related products

Packaging & Shipping

Packing List

o.	Greetech Product	Inner Box			Shipper Carton			MPQ
		Inner box size(mm)	Q'ty/	Total GW(kgs)	Carton size(mm)	Q'ty/ctn	Total GW(kgs)	MOQ	L/T	Total GW(kgs)
		Inner box size(mm)	(pcs)	Total GW(kgs)	Carton size(mm)	(pcs)	Total GW(kgs)	(pcs)	(Days)	Total GW(kgs)
1	G3 series(terminal type)	310x215x135	3,360	3.9	440x325x300	13,440	15.3	1,000	15	1.2
2	G5 series	310x250x120	600	5.5	330x270x270	1,200	10.8	1,000	15	9
3	G5W11 series	310x215x135	200	4.8	440x325x300	800	19.2	100	10	2.5
4	G6 series	290x192x40	500	1.3	400x305x220	5,000	12.5	1,000	15	2.7
5	G9 series(terminal type)	290x192x40	500	1.3	400x305x220	5,000	12.5	1,000	15	2.7
6	G91 series	290x192x40	500	1.3	400x305x220	5,000	12.5	1,000	15	2.7
7	G10 series	290x192x40	600	1.3	400x305x220	6,000	12.5	1,000	15	2.7
8	GT02 series	210x155x55	300	1.2	440x325x285	6,000	12	6,000	15	12
9	GPS100 series	/	/	/	*330270270*	60	6.1	60	10	6.1
10	Switch with wire leads	310x215x135	100	1.8	440x325x300	800	14.5	800	20	14.5

Shipping

Company Information

Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance

Certification

Exhibition and Customer Visiting

Business Partner

FAQ

Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.

Q2. What is your MOQ?
A : Normally, MOQ=100pcs.

Q3. What’s the warranty time?
A: 1 - 2 years.

Q4. Could you offer us free samples?
A:Yes, free samples could be provided within 2-5 days.

Q5. What ‘s the lead time of mass production?
A : About 2-4 weeks.

Q6. What’s the capacity per month?
A :   Over 8 million pieces per month for micro switch series.
       Over 20 million pieces per month for keyboard switch series.

Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
      About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.

Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
