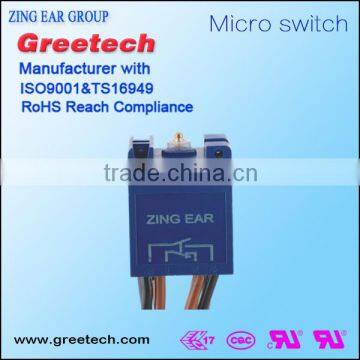

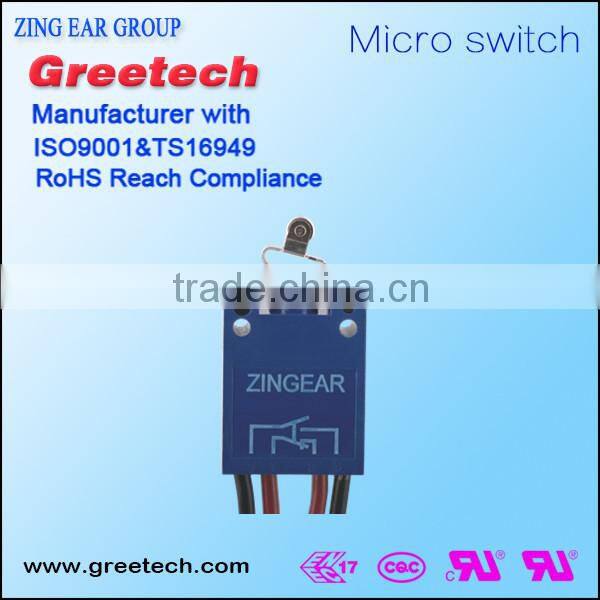

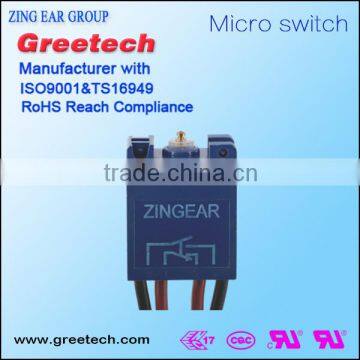

Momentary 0.5A/5A 250V Types of Electrical T85 0.5A 250V Wire Leads Switch Micro Plunger
US$ 1.6 - 4.8
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ZING EAR
Model Number:
G1105-35003D01E1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Momentary Types of T85 0.5A 5A 250V Electric Push Button Limit DPDT Micro SwitchUS$ 3.23 - 4.84MOQ: 100 Pieces -
China Hot Selling Zing Ear G11 Sealed DPDT Micro Switch With 4 Wires(IP67)US$ 3.225 - 4.838MOQ: 500 Pieces
-
0.5A/5A 250V Types of T85 Waterproof Snap Action Tower Type Limit Switch & Micro SwitchUS$ 1.6 - 4.8MOQ: 100 Pieces
-
China Supplier Sealed DPDT Micro Switch T85 5e4 With 4 WiresUS$ 3.23 - 4.84MOQ: 500 Pieces
-
ZING EAR Auto on off Switch Types of Electrical Limit Switch T85micro SwitchUS$ 1.08 - 2.48MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
ZING EAR
Model Number
G1105-35003D01E1
Max. Current
0.5A/5A
Max. Voltage
250VAC
Operating Temperature
-25℃~+85℃
Protection Level
IP67
Momentary 0.5A/5A 250V types of electrical t85 0.5A 250V wire leads switch micro plunger
Product Description
Feature
-Compact Size and Tight Configuration
-Global safety approvals
-Long life and High Precision and Reliability
-Dust and Water Proof Design (IP67)
-DPDT Double-Break Type
-Variety of Mounting Method Operation Type
-Widely used in Industrial Control etc.

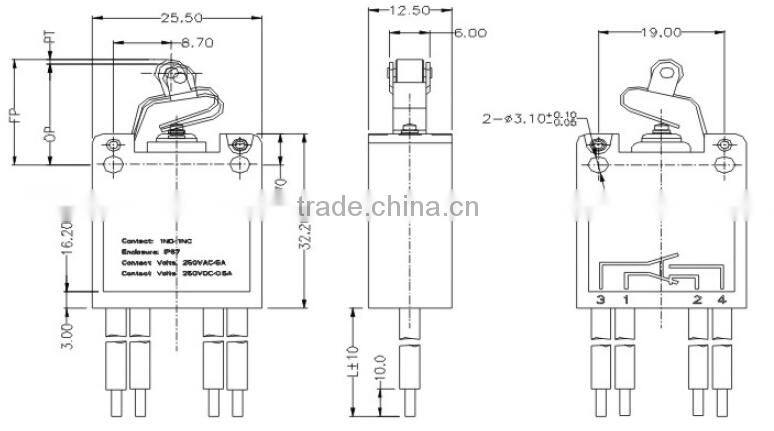

Drawing

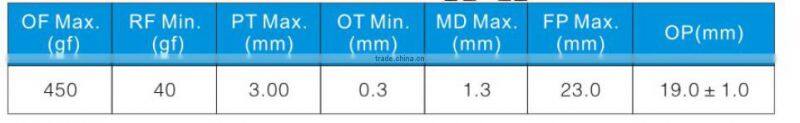

Operating Parameters
Parameters
| Rating | 05 | 0.5A 250VDC | |||||||||||||
| 0.5A/5A 250VAC | |||||||||||||||
| Operating Frequency |
| 10~30 cycles/minute | |||||||||||||
| Mechanical | 120 cycles/minute | ||||||||||||||
| Contact Resistance(Initiative) | 30~100mΩ Max (Depends on P/Ns) | ||||||||||||||
| Insulation Resistance | 100MΩ Min(at 500VDC) | ||||||||||||||
| Dielectric Strength | AC 750V RMS (50-60Hz) | ||||||||||||||
| Storgage Temperature |
| ||||||||||||||
| Storage Humidity | 85%RH Max | ||||||||||||||
| Service Life | Electrical | 50,000 cycles(Depends on P/Ns) | |||||||||||||
| Mechanical | 2,000,000 cycles | ||||||||||||||
| Weight | Approx.110g(8 wires) | ||||||||||||||
| Material | Silver contacts | ||||||||||||||
Application
-Electrical Actuators
-Vavle Control
-Power Station Control
-Industrial Auto Control
-Nuclear Power Facilities
-Automobile Production Line
Related products
Packaging & Shipping
Packing list
| No. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) | ||
| (pcs) | (pcs) | (pcs) | (Days) | |||||||
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Shipping way
Company Information
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certificates
Business partners
Trade Records
Exhibitions & Customer visiting
FAQ
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.
Q5. What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
