Home > Electrical & Electronics > Switch > Micro Switch > Momentary T85 0.5A 5A 250V Snap Action Types of Electrical Waterproof Door Micro Electronic Limit Switch

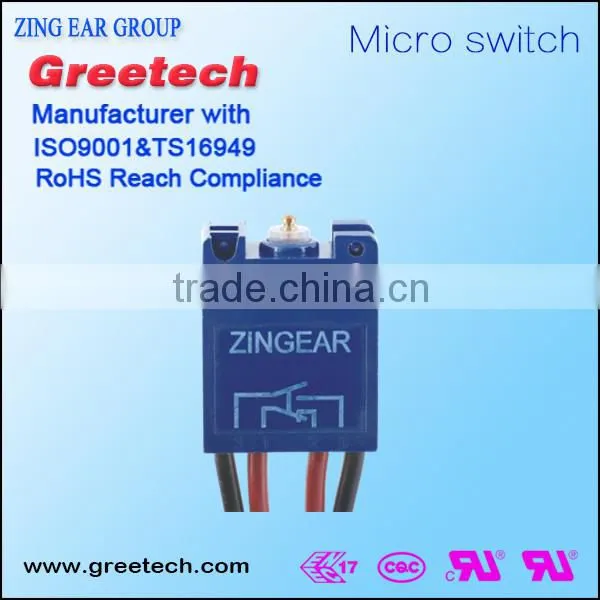

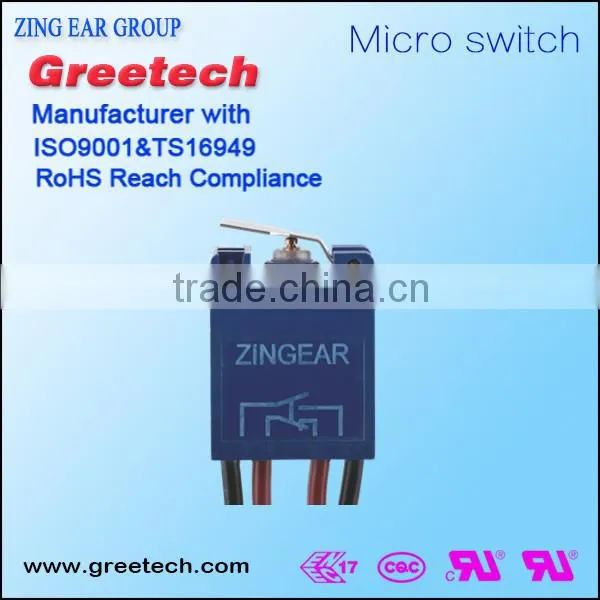

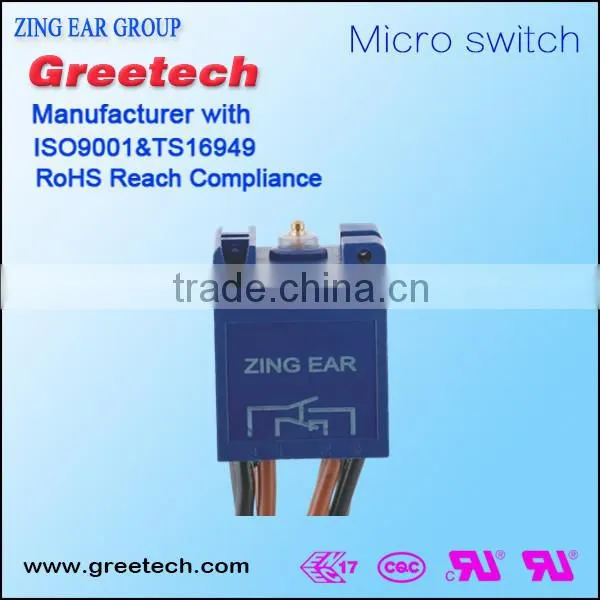

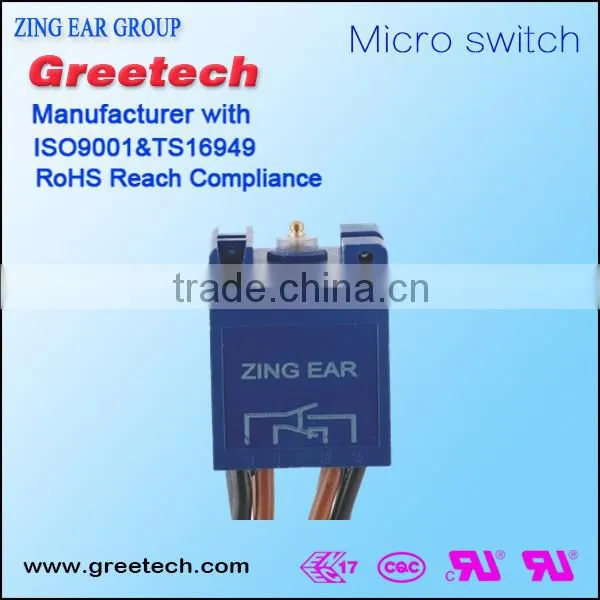

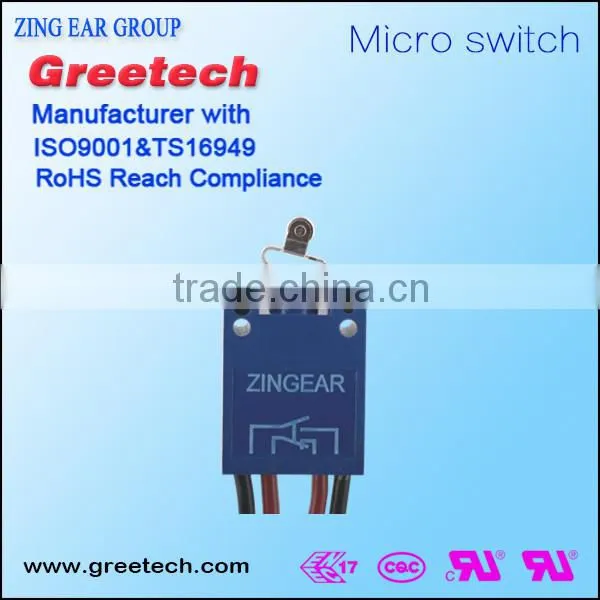

Momentary T85 0.5A 5A 250V Snap Action Types of Electrical Waterproof Door Micro Electronic Limit Switch
US$ 1.6 - 4.8
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ZING EAR
Model Number:
G1105-45000D01E1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Momentary 0.5A/5A 250V Types of Electrical T85 0.5A 250V Wire Leads Switch Micro PlungerUS$ 1.6 - 4.8MOQ: 100 Pieces -
Momentary Types of T85 0.5A 5A 250V Electric Push Button Limit DPDT Micro SwitchUS$ 3.23 - 4.84MOQ: 100 Pieces
-
China Hot Selling Zing Ear G11 Sealed DPDT Micro Switch With 4 Wires(IP67)US$ 3.225 - 4.838MOQ: 500 Pieces
-
0.5A/5A 250V Types of T85 Waterproof Snap Action Tower Type Limit Switch & Micro SwitchUS$ 1.6 - 4.8MOQ: 100 Pieces
-
China Supplier Sealed DPDT Micro Switch T85 5e4 With 4 WiresUS$ 3.23 - 4.84MOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
ZING EAR
Model Number
G1105-45000D01E1
Max. Current
0.5A/5A
Max. Voltage
250VAC
Operating Temperature
-25℃~+85℃
Protection Level
IP67
Momentary t85 0.5A 5A 250V snap action types of electrical waterproof door micro electronic limit switch
Product Description
Feature
-Compact Size and Tight Configuration
-Global safety approvals
-Long life and High Precision and Reliability
-Dust and Water Proof Design (IP67)
-DPDT Double-Break Type
-Variety of Mounting Method Operation Type
-Widely used in Industrial Control etc.
Drawing
Operating Parameters
Parameters
| Rating | 05 | 0.5A 250VDC | |||||||||||||
| 0.5A/5A 250VAC | |||||||||||||||
| Operating Frequency |
|
10~30 cycles/minute | |||||||||||||
| Mechanical | 120 cycles/minute | ||||||||||||||
| Contact Resistance(Initiative) | 30~100mΩ Max (Depends on P/Ns) |
||||||||||||||
| Insulation Resistance | 100MΩ Min(at 500VDC) | ||||||||||||||
| Dielectric Strength | AC 750V RMS (50-60Hz) | ||||||||||||||
| Storgage Temperature |
|
||||||||||||||
| Storage Humidity | 85%RH Max | ||||||||||||||
| Service Life | Electrical | 50,000 cycles(Depends on P/Ns) | |||||||||||||
| Mechanical | 2,000,000 cycles | ||||||||||||||
| Weight | Approx.110g(8 wires) | ||||||||||||||
| Material | Silver contacts | ||||||||||||||
Application
-Electrical Actuators
-Vavle Control
-Power Station Control
-Industrial Auto Control
-Nuclear Power Facilities
-Automobile Production Line
Related products
Packaging & Shipping
Packing list
| No. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) | ||
| (pcs) | (pcs) | (pcs) | (Days) | |||||||
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Shipping way
Company Information
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certificates
Business partners
Trade Records
Exhibitions & Customer visiting
FAQ
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.
Q5. What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
