Product Details
Place of Origin: | Guangdong, China | Brand Name: | Zingear | Model Number: | GT1001C224A |
Max. Current: | 1mA | Max. Voltage: | DC 5V | Mechanical Life: | 200,000 cycles |
Product Description

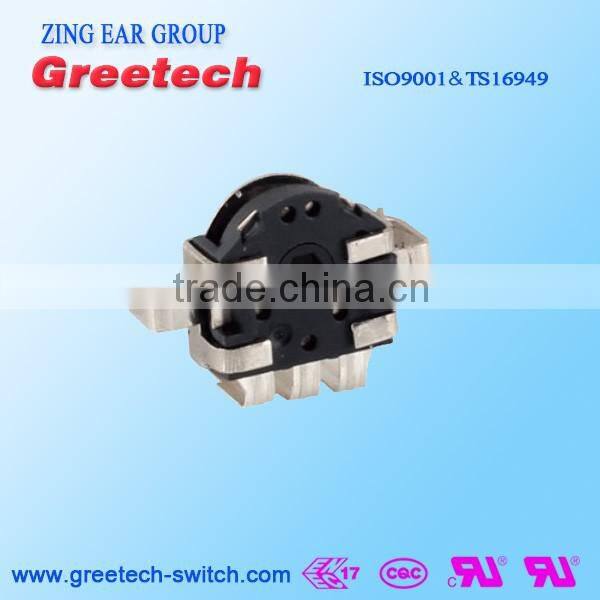

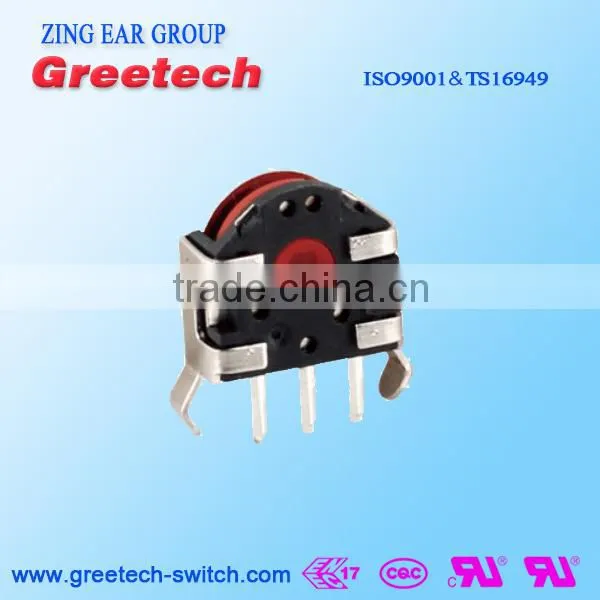

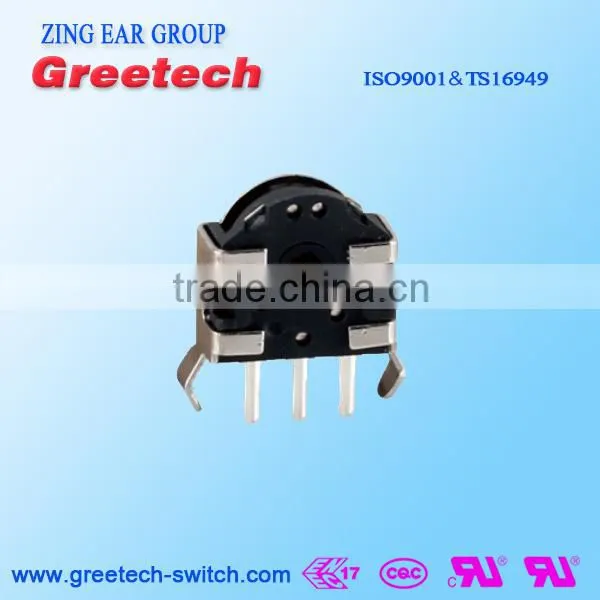

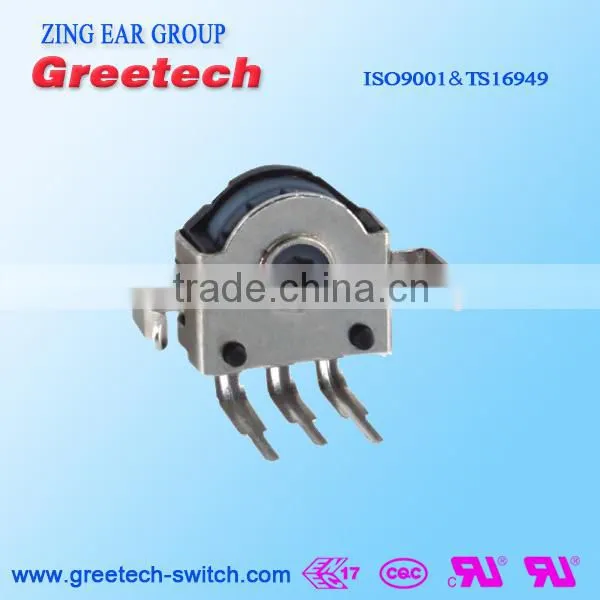

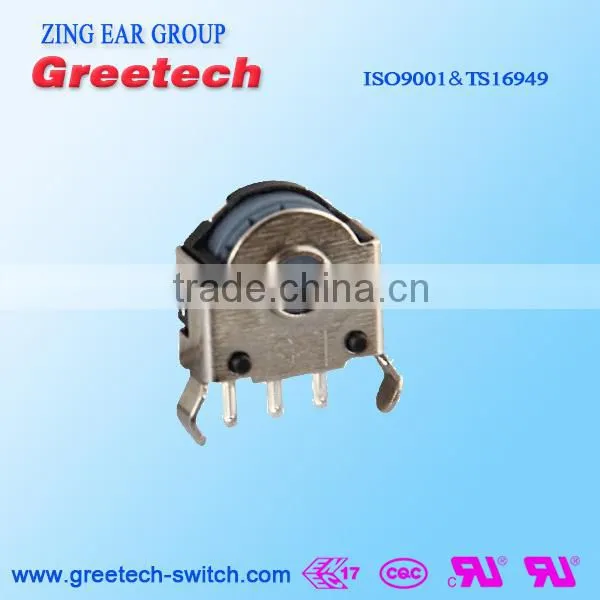

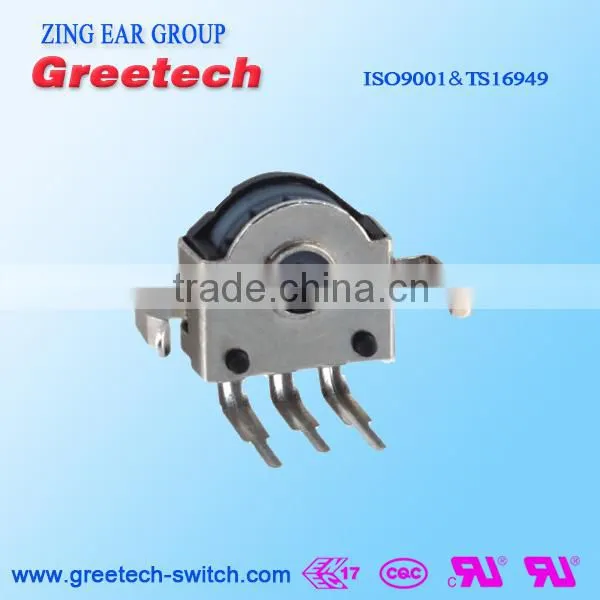

Vertical W type DC 5V 1mA magnetic video absolute encoder
- 24clicks 12 pulses, 12 clicks 12 pulses
- Life could reach more than 200,000 cycles.
- Through the integration of the good-felt tooth institutions to improve the reliablility of the operation.

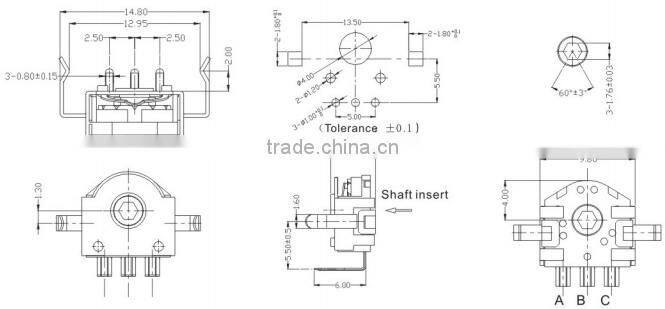

Drawing
Electrical Characteristics | Rating | DC5V 1mA |
Contact Resistance | 200m Ω Max | |
Insulation Resistence | 50m Ω Min | |
Voltage Proof | AC50V(50-60Hz) 1 Minute | |
Eletrical Life | 200,000cycles(Min) | |
Mechanical Reliability Characteristics | Detent Torque | See Detail Spec |
Mechanical Life | 200,000cycles(Min) | |
Storage Humidity | -25 ℃ ~ +85 ℃ | |
Storage Humidity | ≤ 85% RH | |
Solder Ability | 245℃ ± 5 ℃ 3s ± 5s | |
Solder Heat Resistance | 260 ℃ ± 5 ℃ 3s ± 1s |
Application:
Car Audio Epuipment | Stereo Headphones |
Cellular Phone | Camera |
Personal Digital | Mouse |
Related products
Shipping
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certification
Exhibition and Customer Visiting
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A:Yes, free samples could be provided within 2-5 days.
Q5. What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
