IP67 PTI lever terminal auto machine car tight basci micro switch

FOB Price

USD $0.01 - $1 / Piece

1200 Pieces(Min.Order)

Supply Ability 3000000 Piece / Pieces per Month
Port Shenzhen Guangzhou HK
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	ZING EAR
Model Number	G5T16-S1Z400	Max. Current	16A
Max. Voltage	125/250VAC	Operating Temperature	-25℃~125℃
Protection Level	00

Product Description

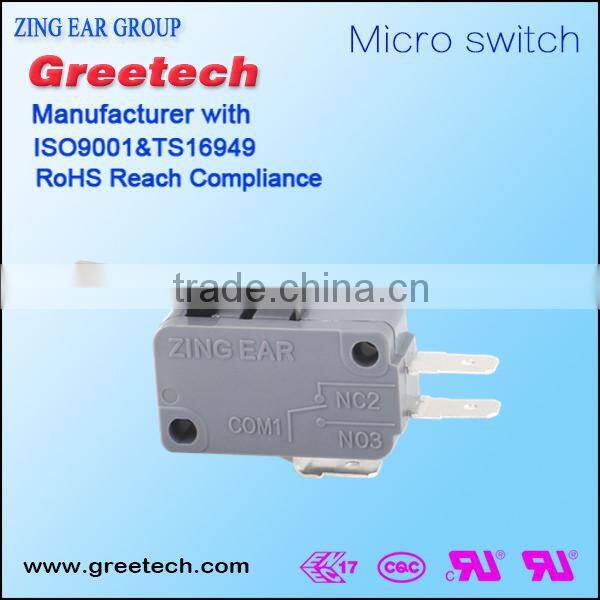

IP67 PTI lever terminal auto machine car tight basci micro switch

Product Description

Feature

- Tight configuration , Small Contact Gap, Snap Action,High Sensitivity and Small Operating Travel

- Long Life , High Reliability

- Global Safety Approvals

- Variety of Terminals

- Wide Range Operating Force (7gf-600gf)

- Wide Range Temperature Grade( -40℃~150℃ ), 200℃ Optional

- With Optional PTI Grade (175v,250v,600v)

- Variety of Levers

- Widley Used in Home Appliances, Electronic Equipments

- Auto Electronics, Apparatus and Instrument ,Power Tool ect

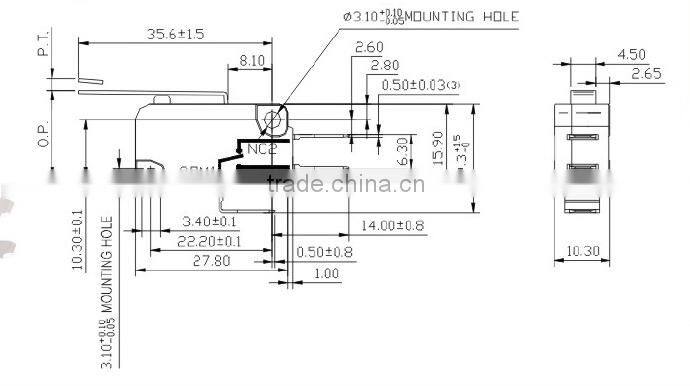

Drawing

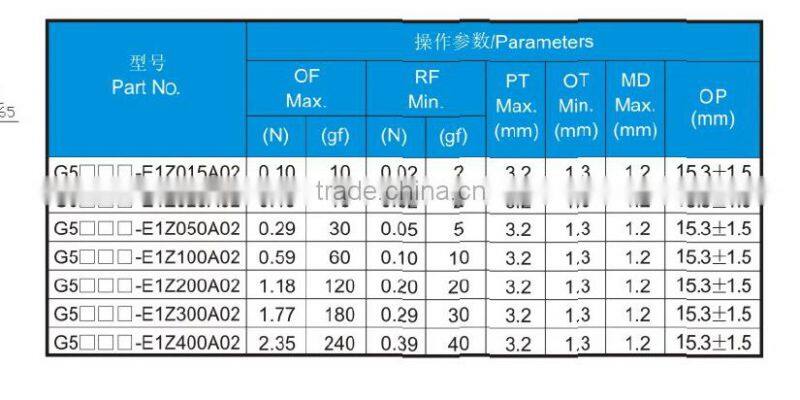

Operating characteristic

Parameteres

Rating	w1	ENEC 0.1A 48VDC,0.1A 125/250VAC,40T85,5E4,μ UL 0.1A 48VDC,0.1A 125/250VAC,T85
	W2	ENEC 5A 125/250VAC,5A,30VDC,40T85,5E4,μ UL 5A 125/250VAC,5A 30VDC T85
	W3	ENEC 10(2)A 125/250VAC,0.5A 125VDC,0.25A 250VDC T85
Operating Frequency	Electrical	10~30times/min
Operating Frequency	Mechanical	60times/min
Contect Resistance(Intal Value)	with terminal	50mΩMax
Contect Resistance(Intal Value)	with wire type	100mΩMax
Insulation Resistance		at500VDC,100MΩ Min
Dielectric Strength	Between terminals	AC 1000V 50-60Hz 1min
Dielectric Strength	Between terminals and housing	AC 1500V 50-60Hz 1min
Storage Temperature		-40°C~+85°C
Storage Humidity		85%RH Max
Protection Grade	with terminal type	IEC IP 67(Exclude terminal)
Protection Grade	with wire type	IEC IP 67
Electric-shock safeguard		Class ll
PTI		250
Life	E-life	2E4~10E4 cycle (depends on P/Ns)
	M-life	over 500,000 cycles or 1,000,000cycles(60cycles/min)
Unit Net Weight		Approx.7g(with terminal type and without lever)

Application

Car	Electric Tooth Brush
Air-Conditioner	Toys
Communication	Home Appliace , Motor Control

Related products

Packaging & Shipping

Packing List

o.	Greetech Product	Inner Box			Shipper Carton			MPQ
		Inner box size(mm)	Q'ty/	Total GW(kgs)	Carton size(mm)	Q'ty/ctn	Total GW(kgs)	MOQ	L/T	Total GW(kgs)
		Inner box size(mm)	(pcs)	Total GW(kgs)	Carton size(mm)	(pcs)	Total GW(kgs)	(pcs)	(Days)	Total GW(kgs)
1	G3 series(terminal type)	310x215x135	3,360	3.9	440x325x300	13,440	15.3	1,000	15	1.2
2	G5 series	310x250x120	600	5.5	330x270x270	1,200	10.8	1,000	15	9
3	G5W11 series	310x215x135	200	4.8	440x325x300	800	19.2	100	10	2.5
4	G6 series	290x192x40	500	1.3	400x305x220	5,000	12.5	1,000	15	2.7
5	G9 series(terminal type)	290x192x40	500	1.3	400x305x220	5,000	12.5	1,000	15	2.7
6	G91 series	290x192x40	500	1.3	400x305x220	5,000	12.5	1,000	15	2.7
7	G10 series	290x192x40	600	1.3	400x305x220	6,000	12.5	1,000	15	2.7
8	GT02 series	210x155x55	300	1.2	440x325x285	6,000	12	6,000	15	12
9	GPS100 series	/	/	/	*330270270*	60	6.1	60	10	6.1
10	Switch with wire leads	310x215x135	100	1.8	440x325x300	800	14.5	800	20	14.5

Shipping

Company Information

Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance

Certification

Business Partner

Trade Record

Exhibition and Customer Visiting

FAQ

Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.

Q2. What is your MOQ?
A : Normally, MOQ=100pcs.

Q3. What’s the warranty time?
A: 1 - 2 years.

Q4. Could you offer us free samples?
A:Yes, free samples could be provided within 2-5 days.

Q5.What ‘s the lead time of mass production?
A : About 2-4 weeks.

Q6. What’s the capacity per month?
A :   Over 8 million pieces per month for micro switch series.
       Over 20 million pieces per month for keyboard switch series.

Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
      About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.

Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
