ZING EAR Kw3 oz Micro Switch With Lever(UL/CUL/ENEC/RoHS/Reach Approval)

Name: ZING EAR Kw3 oz Micro Switch With Lever(UL/CUL/ENEC/RoHS/Reach Approval)
Brand: ZING EAR
Availability: InStock

FOB Price

US$ 0.01 - 1.99 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

ZING EAR kw3 oz Micro Switch with Lever :

1. Our advantages:

uMore than 2,000 models of switch types.

uMonthly production capacity: 80 million pieces.

uOffer free samples for testing and physical approval.

uVarious types of operation force, operating lever, terminals for your choice.

uAutomatic assembly lines for entire production.

uGlobal safety approvals ENEC/CQC/UL/CUL, with certificates of ISO9001 & TS16949.

uImport Raw Materials with factory price.

uMore order quantities, more discounts!

u Long Life and High Reliability.

2. Parameters:

Operating speed		0.1mm-1m/s( Related with actuator forms)
Operating frequency		Mechanical 60 cycles/min; Electrical 15 cycles/min.
Insulation resistance		≥100MΩ (500VDC)
Contact resistance		≤100MΩ (Initial value)
Test Voltage	Between each terminals of the same polarity	AC1000V,50/60HZ, 1min.
	Between current-carrying metal part and ground.and between each terminal and non-current-carring metal parts	AC1500V, 50/60HZ, 1min.
Vibration resistance		10-55HZ, 1.5mm Double amplitude
Shock resistance		Destruction: OF>0.5N:1000m/s2 (approx.100G)max.
		Destruction:OF>0.5N:200m/s2 (approx.20G)max.
Life expectancy		Mechanical ≥ 10,000,000cycles or 1,000,000cycles
		Electrical ≥ 50,000cycles or 100,000cycles
Weight		Approx. 6.2g(No lever).

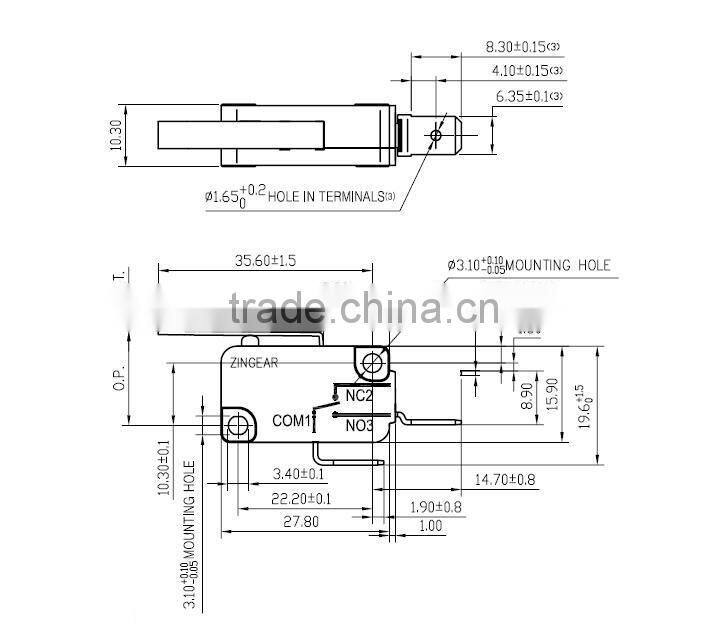

3.Drawing:

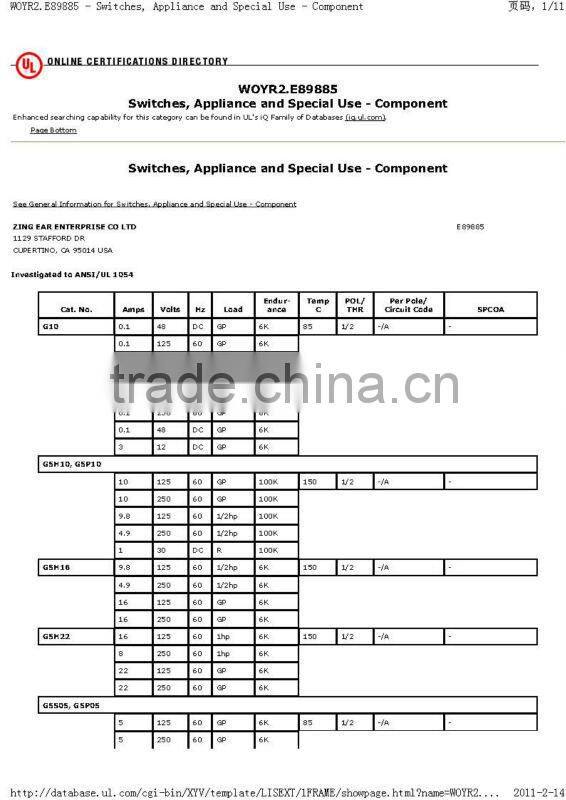

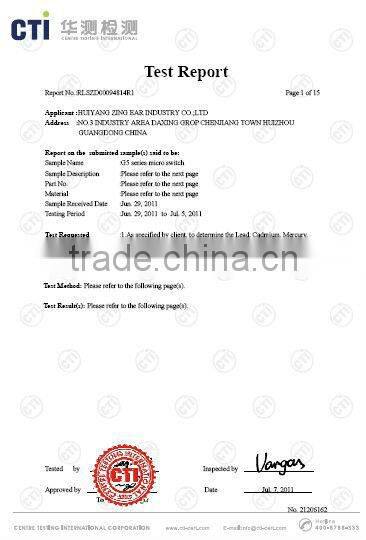

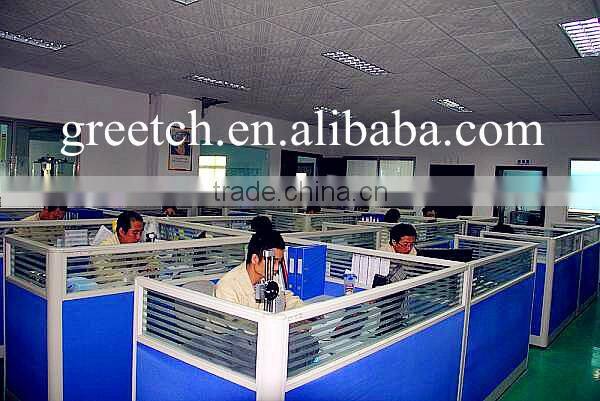

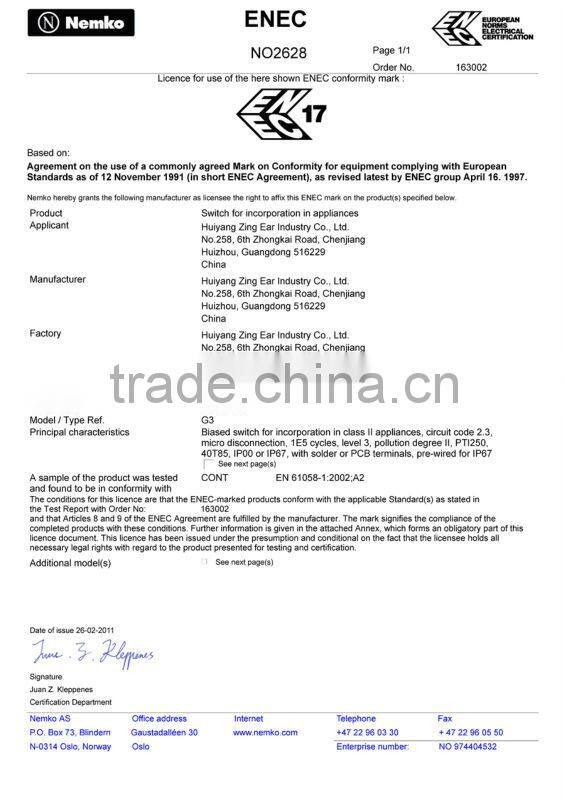

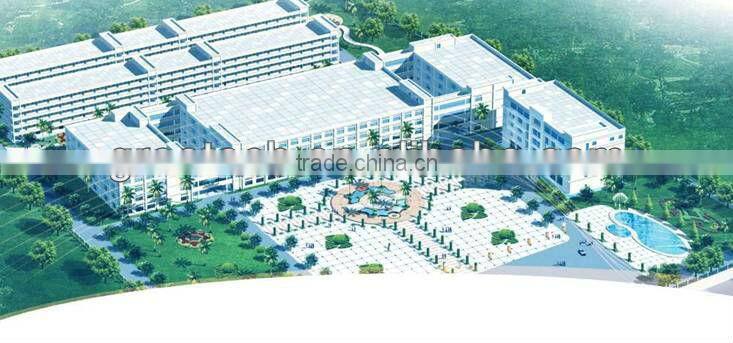

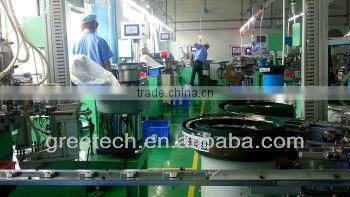

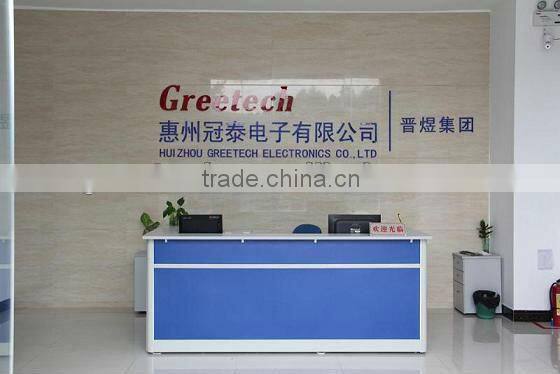

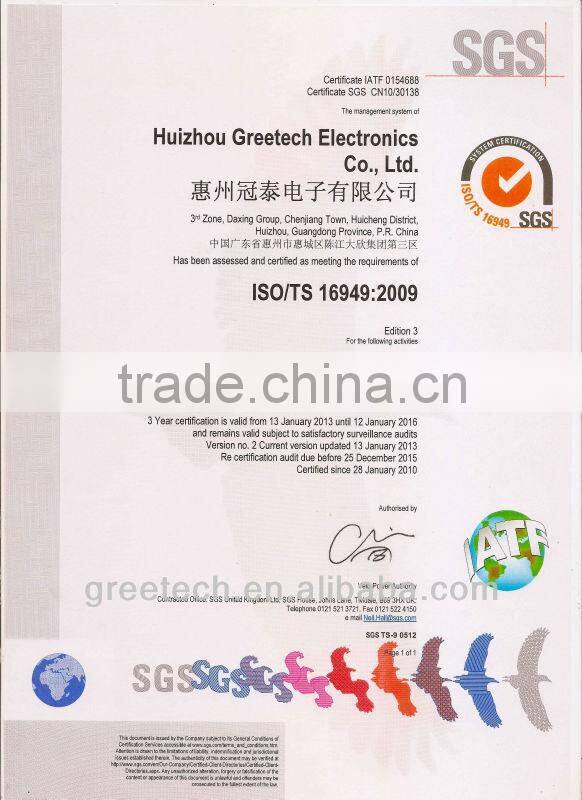

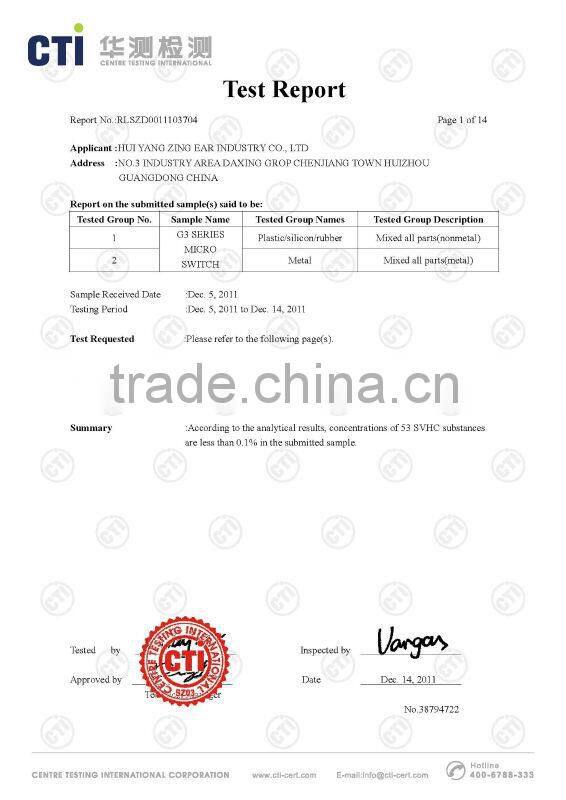

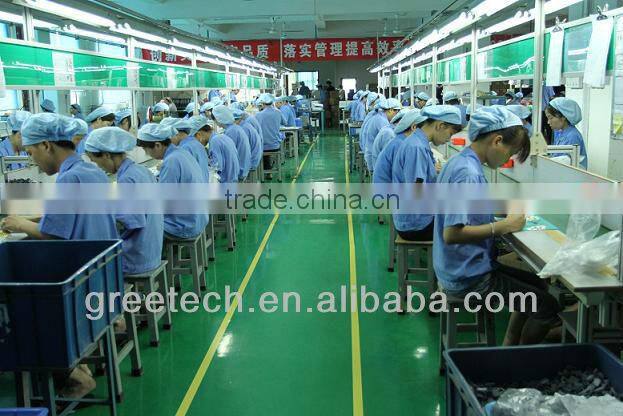

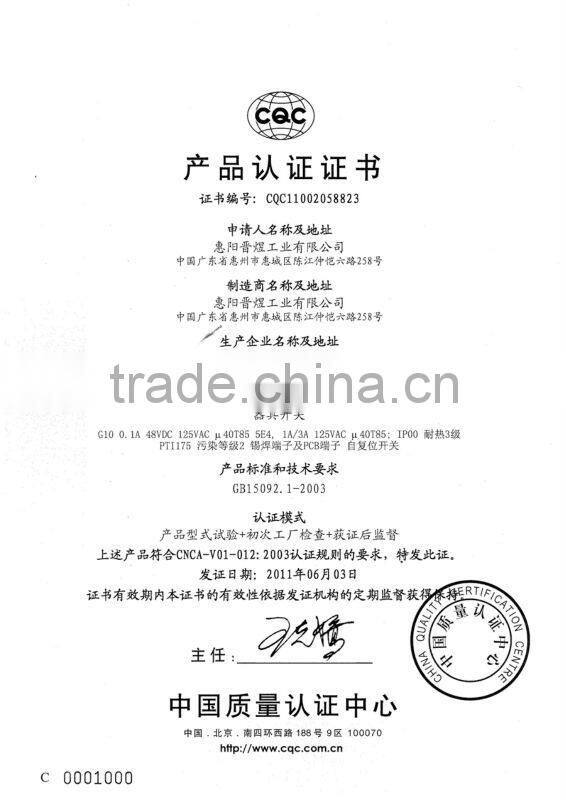

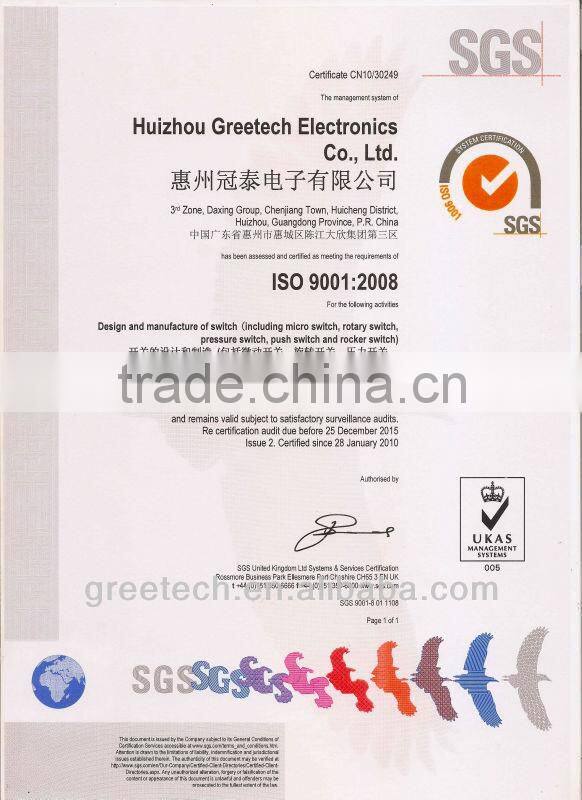

4.Plant and Certificates:
