T125 Magnetic Micro Float Switch (1xw-16a)(UL/CUL/CQC/RoHS/Reach Approval)

Name: T125 Magnetic Micro Float Switch (1xw-16a)(UL/CUL/CQC/RoHS/Reach Approval)
Brand: ZING EAR
SKU: 103485941

US$ 0.01 - 1 MOQ: 1200 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ZING EAR

Model Number:

G5T16-E1Z200A03

Huizhou Greetech Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

HK Shenzhen Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ZING EAR

Model Number G5T16-E1Z200A03

Max. Current 16A

Max. Voltage 125/250VAC

Operating Temperature -25℃~125℃

Protection Level N/A

T125 Magnetic Micro Float Switch (1xw-16a) :

1.Features:

-micro switch 15a approved ENEC/UL/CUL/CQC.
-micro switch t105~125
-micro switch kw3a -pressure switch samll size.
-dual pressure switch of SPDT.

-Global safety approved

ENEC NO.:1728

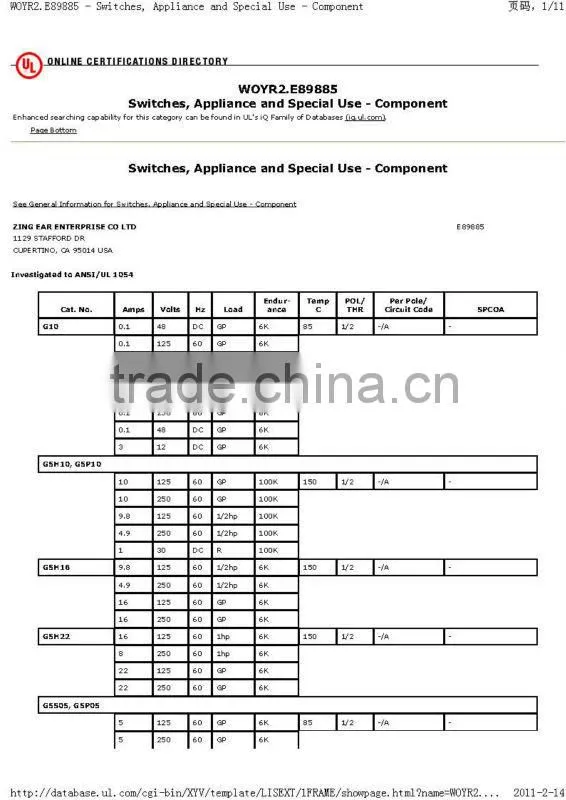

UL No.: E89885

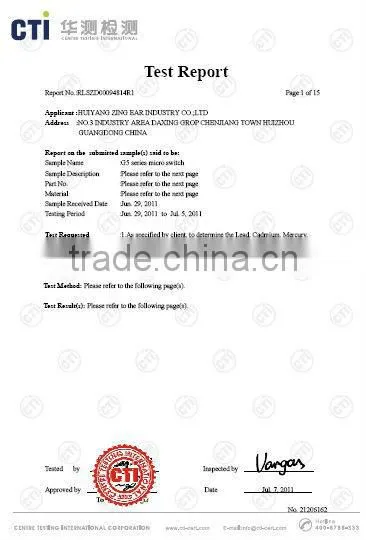

Rohs report No.:RLSZC00060788

CQC No.:CQC07003019079

-micro switch with quick connect terminals

-Long life and high reliability

-Electrical life:50,000cycles approved,far more in practice

-meet ISO/TS16949

-t125 5e4 micro switch

-several kinds of teiminals and levers can be choosed

2. Parameters:

Operating speed		0.1mm-1m/s( Related with actuator forms)
Operating frequency		Mechanical 60 cycles/min; Electrical 15 cycles/min.
Insulation resistance		≥100MΩ (500VDC)
Contact resistance		≤100MΩ (Initial value)
Test Voltage	Between each terminals of the same polarity	AC1000V,50/60HZ, 1min.
	Between current-carrying metal part and ground.and between each terminal and non-current-carring metal parts	AC1500V, 50/60HZ, 1min.
Vibration resistance		10-55HZ, 1.5mm Double amplitude
Shock resistance		Destruction: OF>0.5N:1000m/s2 (approx.100G)max.
		Destruction:OF>0.5N:200m/s2 (approx.20G)max.
Life expectancy		Mechanical ≥ 10,000,000cycles or 1,000,000cycles
		Electrical ≥ 50,000cycles or 100,000cycles
Weight		Approx. 6.2g(No lever).
