Taiwan Zingear 5a 250vac Mini Micro Switch T85 5e4
- SHENZHEN HK
- Money Gram Credit Card
You May Like
-
25T125 16a Micro Switch Cross Reference in Micro Switches
-
Double Pole Double Throw on off Mechanical Micro Switch
-
T125 Magnetic Micro Float Switch (1xw-16a)(UL/CUL/CQC/RoHS/Reach Approval)
-
ZING EAR Kw3 oz Micro Switch With Lever(UL/CUL/ENEC/RoHS/Reach Approval)
-
Quick Connect Terminal 16A Micro Momentary Push Button Switch 125V (UL/CUL/ENEC/RoHS/Reach Approval)
-
Wireless Electrical Dpdt on off 16A 250V Micro Switch Kw3a T125 5e4
Product Details
| Place of Origin | Guangdong, China | Brand Name | ZING EAR ( micro switch 220v) | |
| Model Number | G5T22-C1Z400 | Max. Current | 16A | |
| Max. Voltage | 1000VAC | Operating Temperature | -25℃~125℃ | |
| Protection Level | N/A |
Product Description

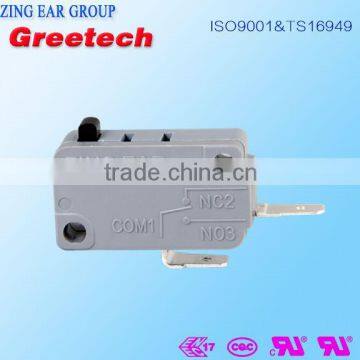

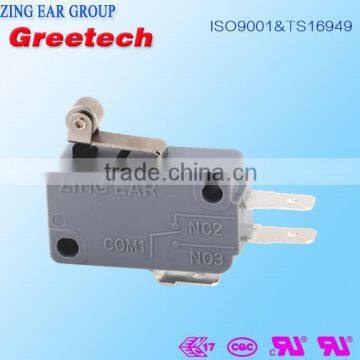

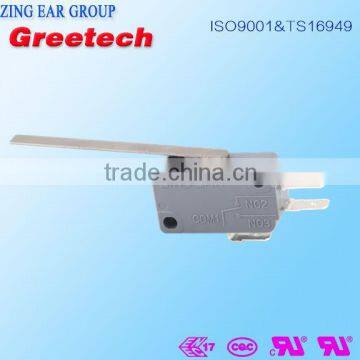

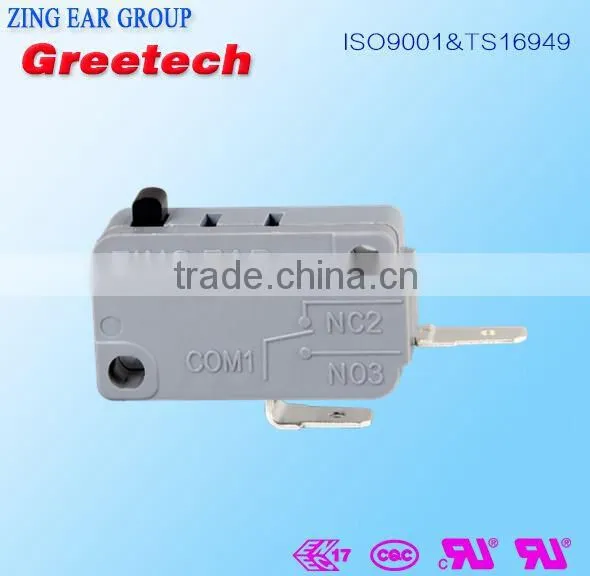

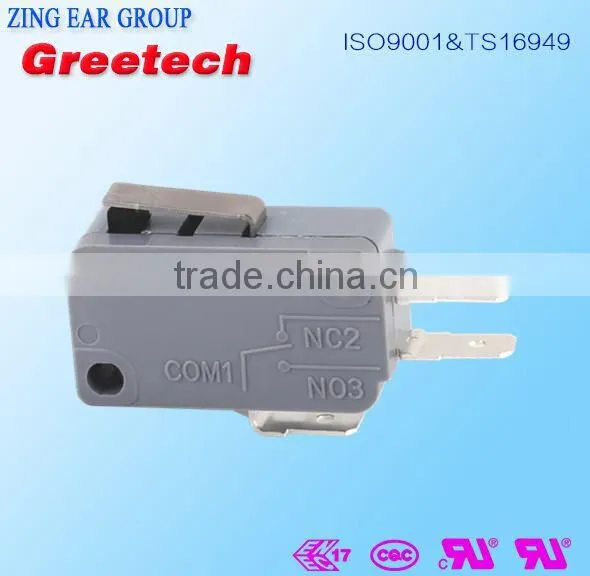

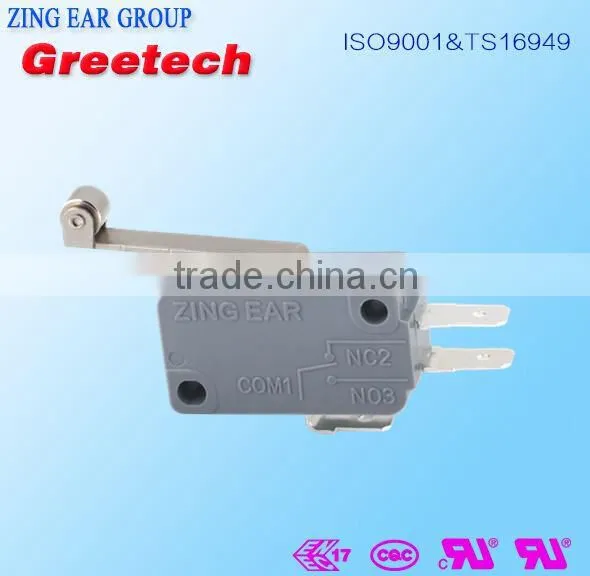

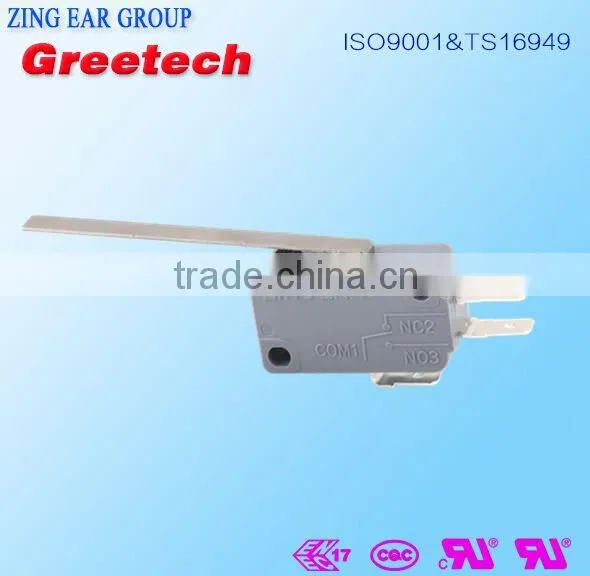

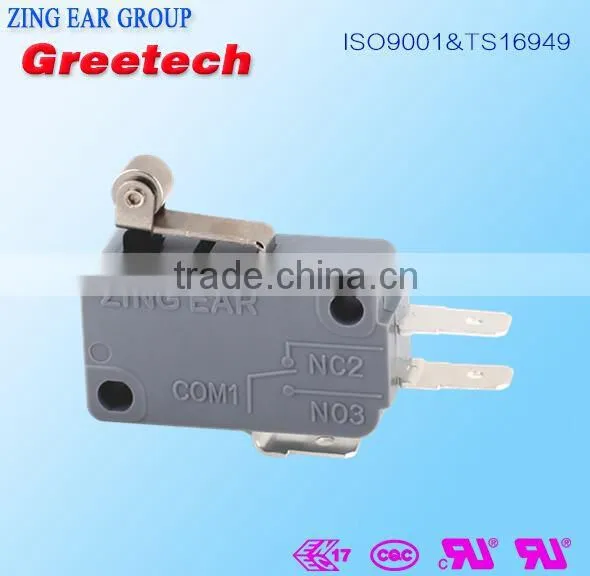

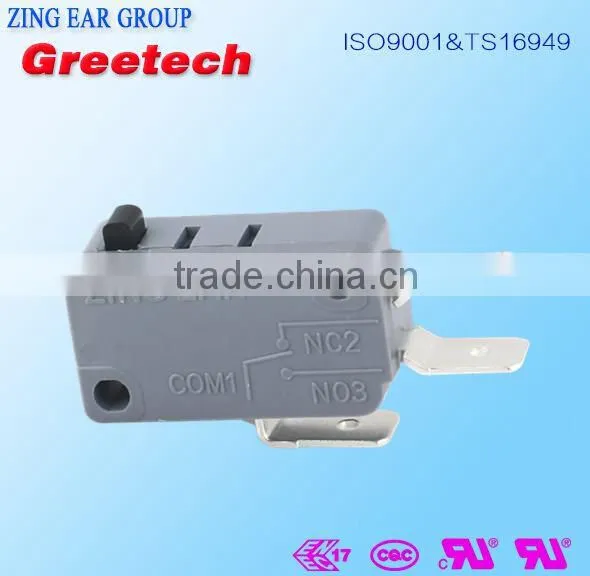

Taiwan Zingear 5a 250vac mini micro switch t85 5e4
Drawing:
Operating Characteristics:
Parameters:
| Rating | 08 | ENEC/CQC:8(10)A 250VAC,5E4,25T125 UL/CUL:10.1A 1/2HP 250VAC |
| 16 | ENEC/CQC:16(4)A 250VAC 5E4 UL/CUL:16A 1/2HP 125/250VAC | |
| 22 | ENEC :16(13)A 250VAC 5E4 22(8)A250VAC 1E4 CQC:22(8)A 250VAC 1E4 UL/CUL :22A 1HP 125/250VAC | |
| 05 | ENEC/CQC;0.1A 48VDC 0.1A125/250VAC 5(2.5)A UL/CUL:0.1A 48VDC 0.1A125/250VAC 5A 1/10HP 125/250VAC | |
| 10 | ENEC :10(3)A 125/250 VAC ,0.5A 125VDC 0.25A 250VDC 25T125 5E4 UL/CUL;11A 1/3HP 125/250VAC 0.5A 125VDC 0.25A 250VDC 4A 125VAC L | |
| Operating Frequency | Electrical | 10-~30 cycles/minute |
| Mechanical | 120 cycles/minute | |
| Contact Resitance | 100MΩ Max | |
| Insulation Resistance ( at 500VDC) | 100MΩ Min | |
| Dielectric Strength | AC 1,000V RMS (50~60Hz) | |
| Storage Temperature | (-40°C~ +125°C/85°C) | |
| Storage Humidity | 85% RH max | |
| Service Life | Electrical | 10,000~100,000cycles (Depend on part number) |
| Mechanical | 1,000,000cycles | |
Basic package information:
Ship way:
Greetech advantage:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Certificates:
FAQ
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A) Yes, free samples could be provided within 2-5 days.
Q5, What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
