Home > Products > Concrete Mixer > Pneumatic Discharging JS1000 Twin Shaft Concrete Mixer, Forced Concrete Mixer for sale

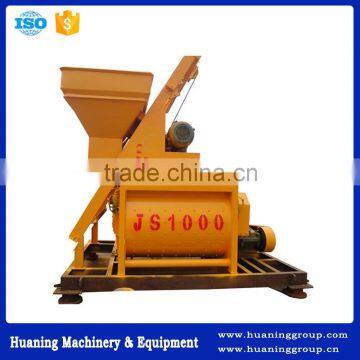

Pneumatic Discharging JS1000 Twin Shaft Concrete Mixer, Forced Concrete Mixer for sale

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Model Number	JS1000	Mixing Power	37/ 2*18.5kw
Charging Capacity	1600L	Reclaiming capacity	1000L
Speed of Mixing Drum	26r/min	Water Supply Mode	Water pump
Working Cycle Period	60s	Discharge Way	Pneumatic or hydraulic discharge
Outline Dimension	1046034009050/ 2800x2200x2000 mm	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

JS1000A Twin Shaft Concrete Mixer:

JS1000B Twin Shaft Concrete Mixer:

Brief introduction of Pneumatic Discharging JS1000 Twin Shaft Concrete Mixer, Forced Concrete Mixer for sale

JS1000 concrete mixer is the twin shaft forced concrete mixing machine and generally used to mix dry concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.

The twin shaft concrete mixer can not only work independently, but also can be adopted as mixer in concrete mixing plant. This machine is widely applied in all kinds of large, middle and prefabricated concrete plants, hideways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.

Features of Pneumatic Discharging JS1000 Twin Shaft Concrete Mixer, Forced Concrete Mixer for sale

Shafts adopt high-rigidity and high-tenacity wearable cast alloy steel to prolong the service time.

Shaft head seal adopt original-imported parts installation to avoid cement and slurry entering in shaft-head.

JS1000A Twin Shaft Concrete Mixer--- HZS50 Concrete Mixing Plant

JS1000B Twin Shaft Concrete Mixer --- HZS60 Concrete Mixing Plant

Main Technical Parameters of Pneumatic Discharging JS1000 Twin Shaft Concrete Mixer, Forced Concrete Mixer for sale

Type		JS500	JS750	JS1000A	JS1000B	JS1500A
Discharge Capacity (L)		500	750	1000	1000	1500
Feed Capacity (L)		800	1200	1600	1600	2400
Productivity (m3/h)		≥25	≥35	≥50	≥60	≥75
Max. Aggregate Size: Pebble/Gravel (mm)		≤40/50	≤40/60	≤60/80	≤60/80	≤60/80
Work Cycle Time (s)		72	72	60	60	60
Mixing Blades	Speed (r/min)	31	29.6	26	26	24.5
	Quantity	2×7	2×7	2×7	2×7	2×7
Mixing Motor (kw)		18.5	30	37	2×18.5	2x22
Winch Motor (kw)		5.5	7.5	7.5	13	15
Pump Motor (kw)		1.1	1.5	3	3	3
Dimensions (L × W × H)		2900×2530×2680	3110×2620×2580	4320×2200×3300	2800× 2200 ×2000	4720×2200×3000
Total weight(kg)		4000	5500	8700	6000	11130
