Help CenterTouch Screen pc Standing
US$ 10 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 46"
Type:
Infrared
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Products Status
Stock
Screen Size
Other, 46"
Type
Infrared
Interface Type
Serial, USB, Other, Serial, USB, HDMI,Composite video input and output
Resolution
Other, 1920*1080
Brand Name
User(or OEM)
Model Number
US-T4601H
Place of Origin
Guangdong, China
Specifications
High definition and brightnessGood in quality and moderate in price
Delivery timely
Warranty One Year

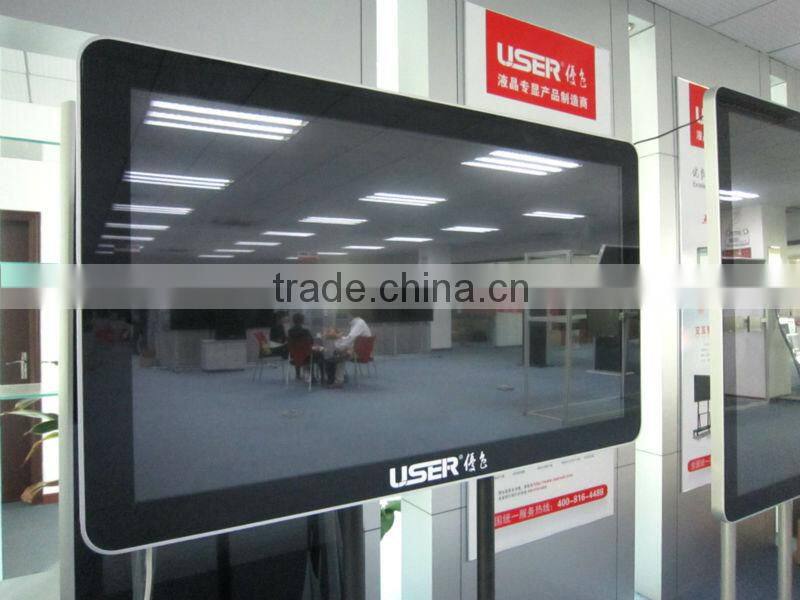

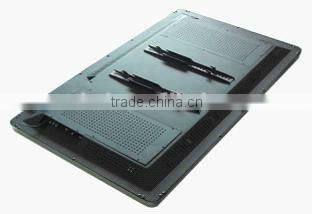

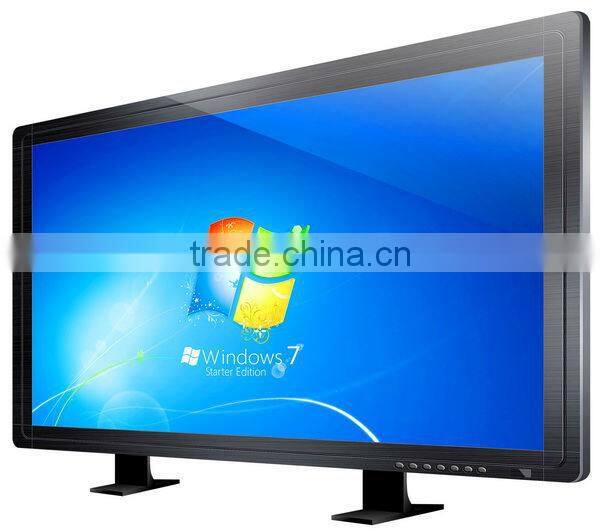

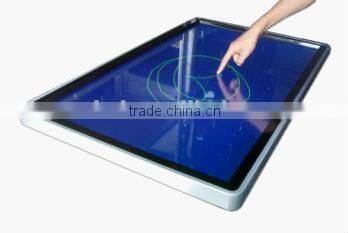

touch screen pc standing
| Specifications | ||||||||||
| Model No. | US-T4601H | |||||||||
| Panel size | 46" TFT-LCD | |||||||||
| Display area(mm)/mode | 1018.08*572.67 16:9 | |||||||||
| Maximum resolution | 1920×1080 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.543(H)×0.543(V) | |||||||||
| Brightness (nits) | 450cd/m2 | |||||||||
| Contrast | 4000:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Backlight | LED | |||||||||
| Response time | 8ms | |||||||||
| Horizontal frequency | 50-70KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Touch Panel | ||||||||||
| Specification | Infrared touch | |||||||||
| Positioning accuracy |
±2mms | |||||||||
| Transmittance | ≥92% | |||||||||
| Hardness | 7H | |||||||||
| Click manner | 2,6,10,32 points(optional) | |||||||||
| Response time | ≤10ms | |||||||||
| Output Resolution | 4096X4096 | |||||||||
| Life time | Single point of more than 600 million times |
|||||||||
| Input and output | ||||||||||
| Input and output | 1 HDMI, 1 VGA, 2 AV, 1 S-Video, 2 YPBPR, 1 TV, 4 USB | |||||||||
| Output | HDMI, DVI , earphone | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Compatible HDMI input/DVI | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English | |||||||||
| Computer | ||||||||||
| Main chipset | H61 | |||||||||
| CPU | I3-2100 dual-core four threads 3.1G | |||||||||
| Graphics card | HD 6450 1G | |||||||||
| Memory | 4G | |||||||||
| Hard Disk | 320G/500G(optional) | |||||||||
| Interface | HDMI, VGA*1,USB*4,RJ45*1,Audio | |||||||||
| Operation system | Windows 7 / WIN XP | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | <=280W | |||||||||
| Standby power consumption | <=3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -10°C~60°C | |||||||||
| Working humidity | 20%~80% | |||||||||
| Storage humidity | 5%~95% | |||||||||
| Appearance | ||||||||||
| Body dimension (Lx W x H)mm | 1138.4*693.4*125.3(for your reference only) | |||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | SPCC/Aluminum/Customized | |||||||||
| Installation | Wall mount/floor standing | |||||||||
| Certificate | CE/FCC/3C/RoHS | |||||||||
