Home > Products > Broadcast LCD Monitor > 15" broadcast monitor

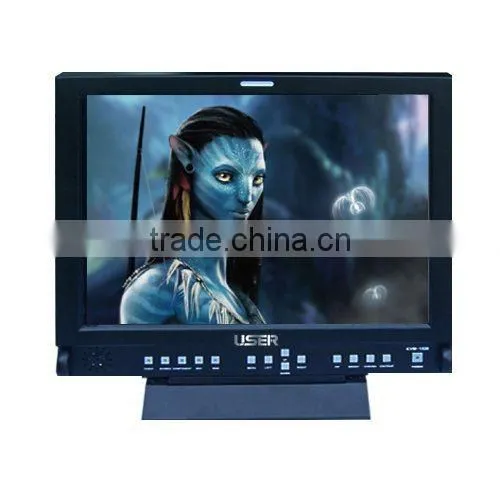

15" broadcast monitor
- shenzhen
- Credit Card PayPal
You May Like
Product Description
Specifications
resolution: 1024*768response time: 8ms
visual angle: 89/89/89/89
contrast: 1000:1
brightness: 450 nit
Product parameter | |
Product model | US-BC1501 |
display size | 15 |
display pixel | 1024×768 |
OSD ratio | 4:3 |
video input/output | 1×BNC |
Y/C input/output | 1×DIN |
Composite(YPbPr/YCbCr) input/output | 3×BNC(support 1080p format) |
SD/HD-SDI video input/output | 2×BNC HD/SD auto-detection |
audio input/output | 2×RCA dimensional sound |
Speaker | 3W×2 |
remote control | RS-232 |
TV system | PAL/NTSC/SECAM(auto-identification) |
dual-screen (PIP/PBP) | YES |
dual-screen switching | YES |
Color temperature selecting | 9300K,6500K,5600K,Customized |
Tag selector | Center mark, the proportion of tags, security area, filling |
Chroma vector | yes |
Luminance distribution histogram | yes |
Black and white mode | yes |
Full Blue mode | yes |
Scan mode | Full-scan, over scan |
Display ratio | 16:9,4:4,Full-screen, input image ratio ,1:1( dot to dot) |
Tally light | Color bright red and green LED lights channel tips |
Pixel pitch | 0.297×0.297(mm) |
Color display | 16.7M |
Response Time | 8ms |
Brightness | 450cd/m2 |
Contrast | 1000:1 |
Viewing angle | 88/88/88/888 |
Working temperature | 0°C~50°C |
Input voltage | AC:100-240V 50/60HZ |
Power consumption | <35W |
Power-saving mode | No signal for some time, turn off some peripherals |
19-inch rack-mount | optional |
VESA installation | VESA MIS-D(100X100mm) |
Stand | yes |
Total weight | About 5.6kg( without accessory) |
Accessories | Power. SDI cable, screws, manual |
