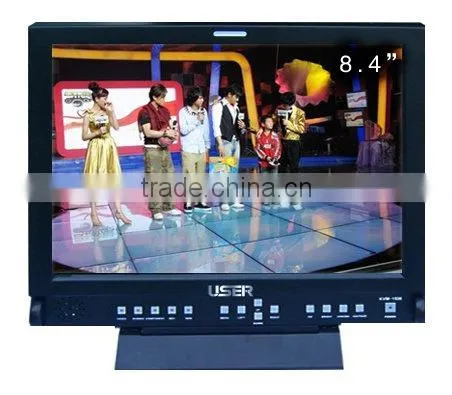

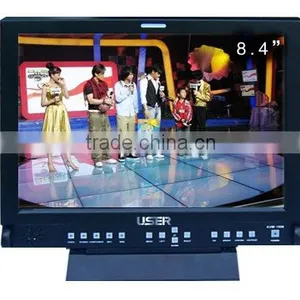

Help CenterBroadcast LCD Monitor
Related Products
Specifications
the world's most advanced system on chip technology, ecactly color display,fast response time, high quality broadcasting monitorProduct parameter Product model US-BC0801
Display size 8.4
Display pixel 800×600
OSD ratio 4:3
Video input/output 1×BNC Y/C
input/output 1×DIN
Composite(YPbPr/YCbCr) input/output 3×BNC(support 1080p format)
SD/HD-SDI video input/output 2×BNC
HD/SD auto-detection SD/HD-SDI video input/output 2×RCA
dimensional sound Speaker 3W×2
remote control RS-232
TV system PAL/NTSC/SECAM(auto-identification) dual-screen (PIP/PBP) YES
dual-screen switching YES
Color temperature selecting 9300K,6500K,5600K,
Customized Tag selector Center mark, the proportion of tags, security area, filling Chroma vector YES
Luminance distribution histogram YES
Black and white mode YES Full Blue mode YES
Scan mode Full-scan, over scan Display ratio 16:9,4:4,
Full-screen, input image ratio ,1:1
( dot to dot) Tally light Color bright red and green LED lights channel tips
Pixel pitch 0.213×0.213(mm)
Color display 16.7M
Response time 25ms
Brightness 400cd/m2
Contrast 600:1
Visual angle 140°/150°
Working temperature 0°C~50°C
Input voltage AC:100-240V 50/60Hz,DC12V
Power consumption <30W
Send Inquiry to This Supplier
