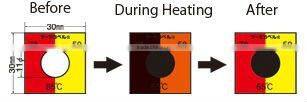

Combination Thermo Label®TB is temperature indicator which consists of both irreversible and reversible temperature indicator to show past temperature record and current temperature. Widely used to monitor temperature at electric power distribution substation ( Labeled on electric connection part to monitor abnormal temperature increase)
- Combination of Reversible and Irreversible temperature indicator
- High accuracy:±2deg.C
- Multiple-use
- Outdoor use (Lifetime: 3 years outdoor use/ 5 years indoor use)
- Self-adhesive and easy to apply on various location

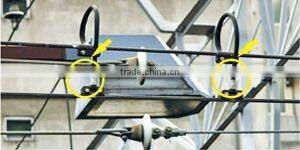

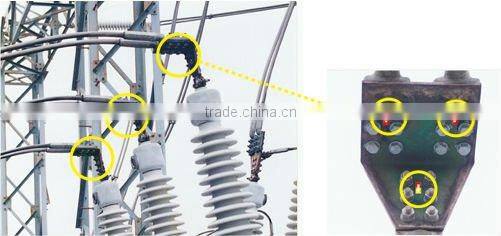

- Widely used to monitor temperature at electric connection part at substation.
-
Temperature range
- Center part (Irreversible) from 65-90 deg.C
- Base part (Reversible) combination of 50 and 70 deg.C

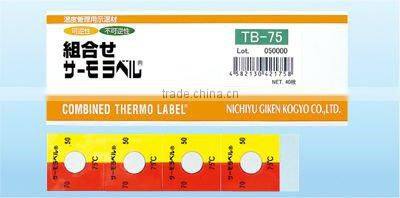

Product variation
| PN | Reacting Part (Irreversible) | Base part (Reversible) | JAN code | |||
| Color Change Temperature (°C) | Color Change | Dimension | Color Change Temperature (Low temp. color←→High temp. color) | Dimension | ||
| TB-65 | 65 | White→Black | 11mm φ |
70°C Red ←→Dark brownish purple 50°C Yellow ←→Yellowish orange |
30 x 30 mm | 4582130421734 |
| TB-70 | 70 | White→Reddish orange | 4582130421741 | |||
| TB-75 | 75 | White→Dark Red | 4582130421758 | |||
| TB-80 | 80 | White→Blue | 4582130421765 | |||
| TB-85 | 85 | White→Dark blue | 4582130421772 | |||
| TB-90 | 90 | White→Red | 4582130421789 | |||
- Size: 30mm x 30mm
- Payment Terms: 100% advanced payment before shipment only
- Our products are strictly under the control of ISO9001: 2008 QC system.
- RoHS Non compliant
This products can be used for....
- monitoring abnormal temperature of electric connection part of substation equipment , transformer substation.
Package Design
About us
"From the Ocean to Outer Space"
NiGK Corporation was fully financed and established by NOF CORPORATION in December 1980. Inheriting the know-how accumulated by TEIKOKU PYROTECHNICS MANUFACTURE CO., LTD., which had lasted from 1938 to 1970, and that of NOF CORPORATION, Kawagoe Plant which succeeded it, we have promoted research and development in various fields in parallel with manufacturing of pyrotechnics and temperature indicating materials and other products. With on ever-expanding scope of our business, our products have been patronized in different fields widely ranging from the deep seabed to outer space, as indicated by our catch phrase, ""From the Ocean to Outer Space,"" contributing to safety and reliability of various systems.
1. Activities: Production and Sales of Diversified Products:
1-1. Chemical Products
- Temperature indicators
- Radioactive Indicators
- Sterilization bags and chemical indicators
- Reinforcement materials for construction
- Exothermic welding powder and molds
- Combustible materials
- Gas generators
1-2. Machinery and Electrical Equipment
- Ocean exploring equipments
- Power transmission failure indicators
1-3. Pyrotechnical Devices
- Rocket Pyrotechnics
"Recognizing temperature at first sight with color change"
We have been developing and manufacturing various kinds of indicator labels according to customer needs since 1965.
Our products are used in various fields such as Electricity industries, Railroads, Food companies and so on.
