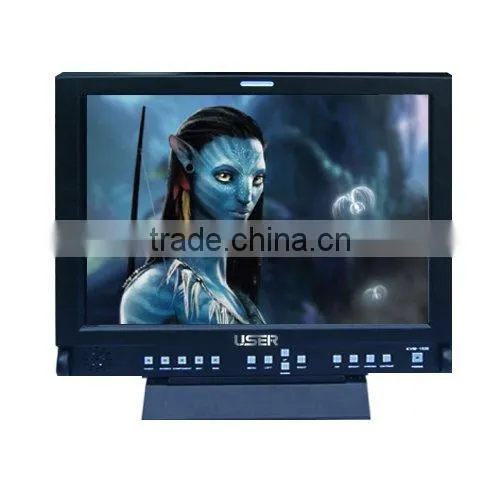

Broadcast LCD Monitor

Name: Broadcast LCD Monitor
Brand: user
SKU: 103439745

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Desktop

Screen Size:

Other, 15"

Shenzhen USER Special Display Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Desktop

Screen Size Other, 15"

Response Time 5ms

Brightness 500cd/m

Interface Type DVI, S-Video, YPBPR

Contrast Ratio 800:1

Resolution 1280 x 1024

Widescreen Yes

Panel Type TFT

Pixel Pitch 0.213

Brand Name user

Model Number US-BC1501

Place of Origin Guangdong, China

Specifications

the world's most advanced system on chip technology, ecactly color display,fast response time, high quality broadcasting monitor

Product parameter
Product model	US-BC1501
display size	15
display pixel	1024×768
OSD ratio	4:3
video input/output	1×BNC
Y/C input/output	1×DIN
Composite(YPbPr/YCbCr) input/output	3×BNC(support 1080p format)
SD/HD-SDI video input/output	2×BNC HD/SD auto-detection
audio input/output	2×RCA dimensional sound
Speaker	3W×2
remote control	RS-232
TV system	PAL/NTSC/SECAM(auto-identification)
dual-screen (PIP/PBP)	YES
dual-screen switching	YES
Color temperature selecting	9300K,6500K,5600K,Customized
Tag selector	Center mark, the proportion of tags, security area, filling
Chroma vector	yes
Luminance distribution histogram	yes
Black and white mode	yes
Full Blue mode	yes
Scan mode	Full-scan, over scan
Display ratio	16:9,4:4,Full-screen, input image ratio ,1:1( dot to dot)
Tally light	Color bright red and green LED lights channel tips
Pixel pitch	0.297×0.297(mm)
Color display	16.7M
Response Time	8ms
Brightness	450cd/m2
Contrast	1000:1
Viewing angle	88/88/88/888
Working temperature	0°C~50°C
Input voltage	AC:100-240V 50/60HZ
Power consumption	<35W
Power-saving mode	No signal for some time, turn off some peripherals
19-inch rack-mount	optional
VESA installation	VESA MIS-D(100X100mm)
Stand	yes
Total weight	About 5.6kg( without accessory)
Accessories	Power. SDI cable, screws, manual
