Laboratory High Temperature Electric Rotary Furnace
US$ 1,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SIOMM
Model Number:
SHZL-1200
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Laboratory Heating Equipment 1100C Rotary Vacuum Tube FurnaceNegotiableMOQ: 1 Set -
SQFL-1700 1700C Atmosphere Vacuum Box FurnaceNegotiableMOQ: 1 Set
-
SQFL-1700 1700deg.C Air FurnaceNegotiableMOQ: 1 Set
-
1200degree C Split Tube Furnace SKGL-1200CNegotiableMOQ: 1 Set
-
High Quality Small Vacuum Lab 1400 c FurnaceNegotiableMOQ: 1 Set
Brand Name
SIOMM
Model Number
SHZL-1200
Place of Origin
Shanghai, China
Specifications
1)Best value high Temperature Electric Rotary Furnace2)excellent Temperature Uniformity and Energy Efficiency for processing
Chinese manufacturer supplier Laboratory High Temperature Electric Rotary Furnace ,factory direct price, save your cost.
Product Description
1200°C High Temperature Tilting Rotary Furnaces provide excellent Temperature Uniformity and Energy Efficiency for processing powder and granular materials. This high performance and long lasting Rotary Furnace is ideal for lab and small scale production application. It offers the best Value/Cost ratio for your investment. These furnaces are designed for Accurate Temperature, Rotation Speed, excellent Temperature Uniformity, Long Lasting Performance, and Safe Operation. Rotation Speed can be adjusted either manually or sync with Furnace Temperature by automation.

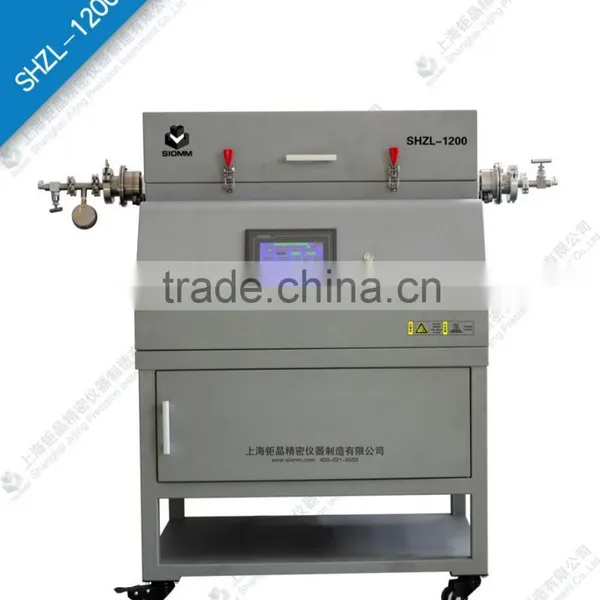

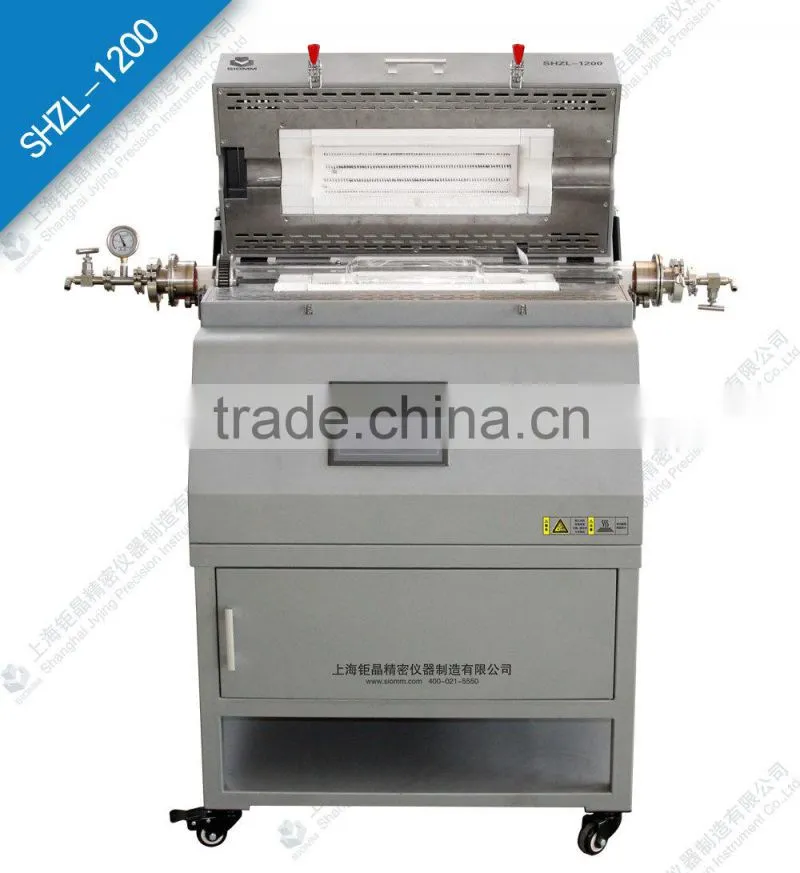

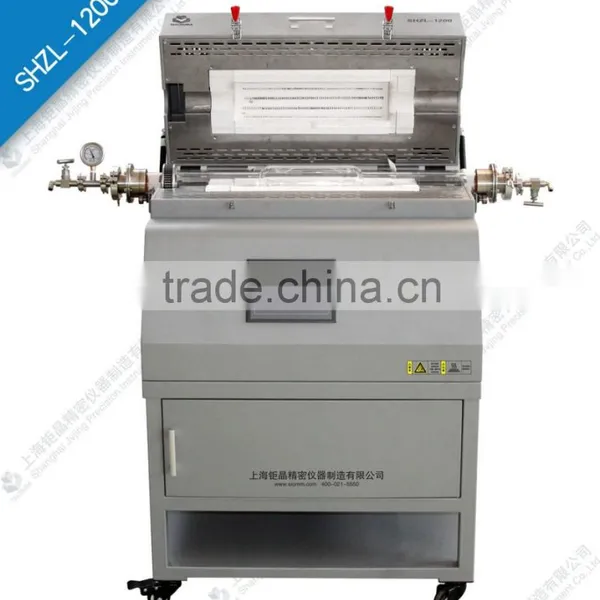

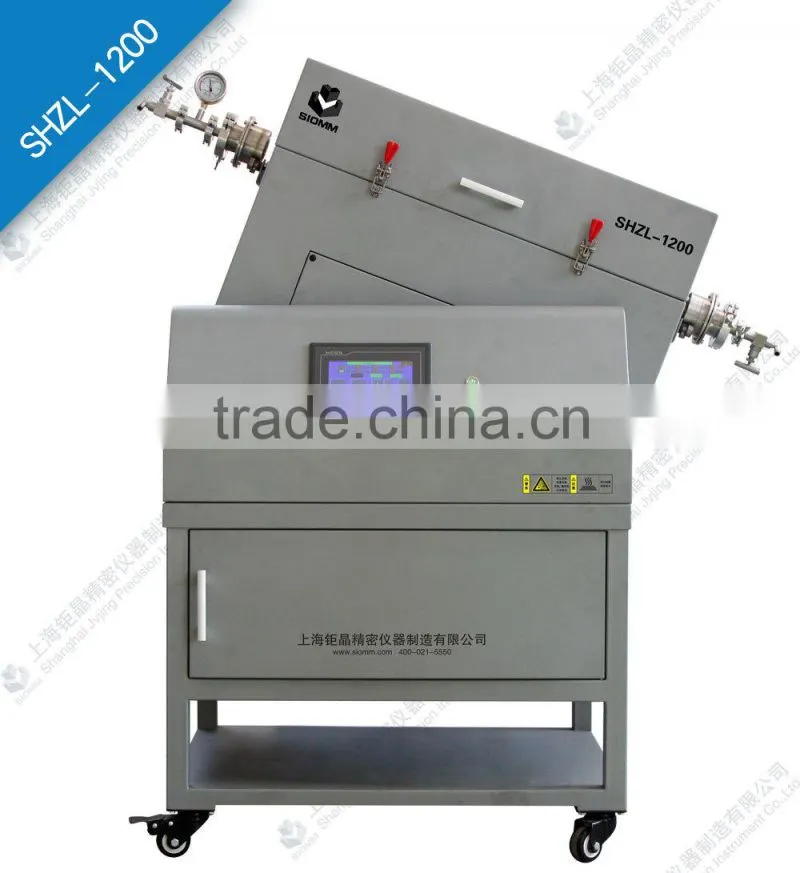

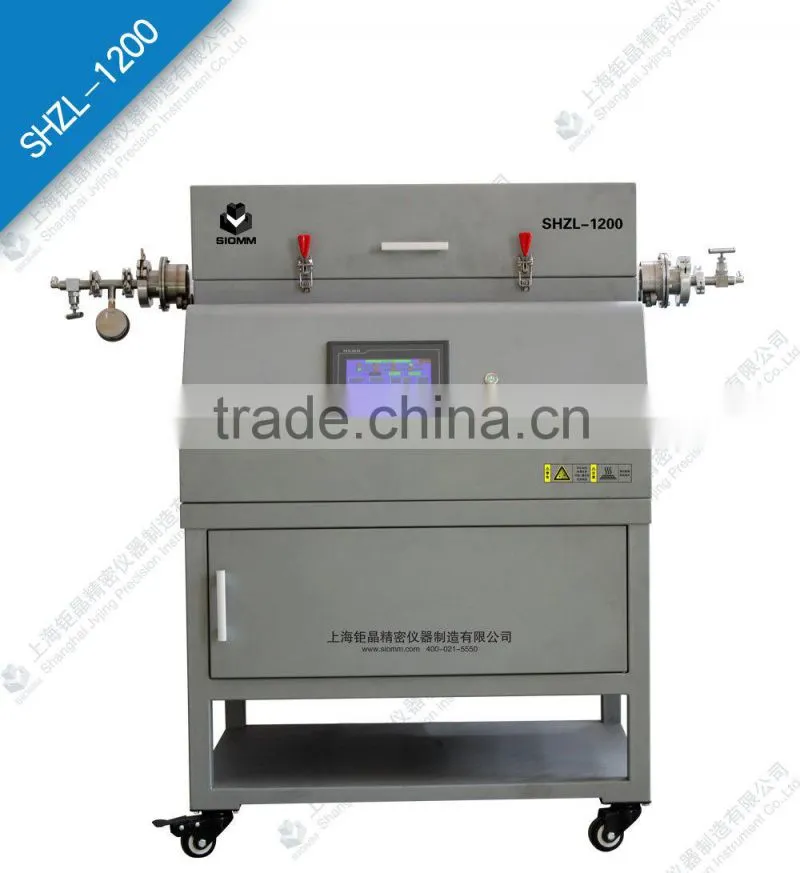

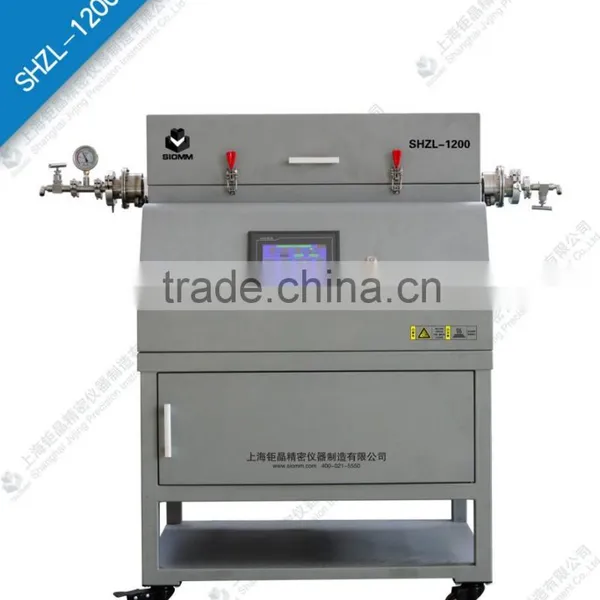

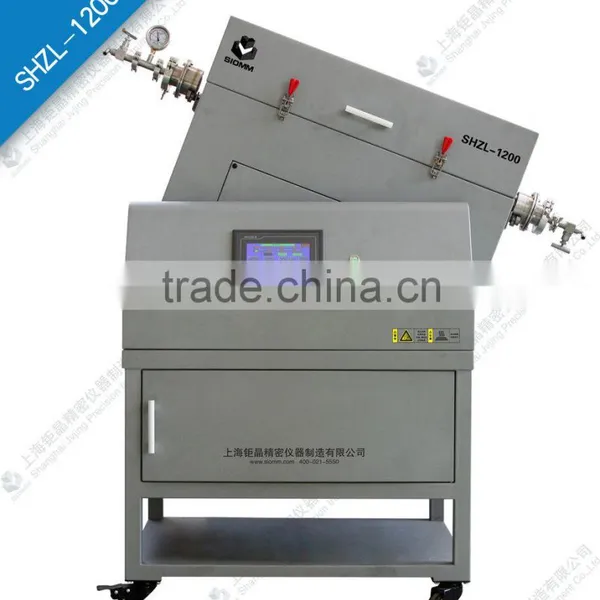

Detailed Images
Functions
- Moved 360°, rate of rotation can be adjusted. Built-in block
- pieces help flour specimen sinter.
- Mute material to rotate the furnace
- Alloy piper or quartz piper
- Visible 7 inch touch screen to control automatically
- Reserve vacuum, gas connector
- Approved by CE certification and ISO9001
- Used to sinter battery,flour ,particle.
Specification
Model |
SHZL-1100/SHZL-1200 |
| Constant temp.zone length | Φ100*280 |
| Diameter | Endings:Φ60*460mm Middle:Φ100*280mm, Total:1200mm |
| Heating element |
Swedish Kanthal |
| Thermocouple | American OMEGA |
| Control temp. | PID, 30 programs |
| Temperature | 1100 serial(alloy piper):≤1000℃,1200serial (quartz piper):≤1200℃ |
| Fine heating rate | ≤10℃/min |
| Accessories |
Sealed flanges 1 pcs, O rings 4 pcs, quartz tube 1 pcs, vacuum pump 1 set, pipe plug 4 pcs, oven gloves, crucible tongs each 1 pcs |
| Operation | By touch screen to control, Rate of rotation is 0-15RPM, angle:0-25° |
