Large Plastic Basket Making Machine

Large Plastic Basket Making Machine thumbnail-1
Large Plastic Basket Making Machine thumbnail-2
Large Plastic Basket Making Machine thumbnail-3
Large Plastic Basket Making Machine thumbnail-4
Large Plastic Basket Making Machine thumbnail-5
Large Plastic Basket Making Machine thumbnail-6
Large Plastic Basket Making Machine photo-1
Large Plastic Basket Making Machine photo-2
Large Plastic Basket Making Machine photo-3
Large Plastic Basket Making Machine photo-4
Large Plastic Basket Making Machine photo-5
Large Plastic Basket Making Machine photo-6
US$ 13,500 - 13,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, plastic baskets
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Changzhou Longsheng Machinery Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Other, plastic baskets
Place of Origin Jiangsu, China
Brand Name Longshung
Model Number LSF-718
Voltage 380V/50HZ
Power(W) 58.8kw
Dimension(L*W*H) 9.5*2.45*3.75m
Weight 45
Certification ISO9001,CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

plastic basket making machine



Plastic basket Making Machine we have, Clamping force from 3980 to 11800KN, shot weight from 1447 to 5005gr , which can production different sizes & weights of plastic baskets, boxes, containers, crates etc.



Different model of machine with different production capacity, Welcome contact us for more details and professional services.

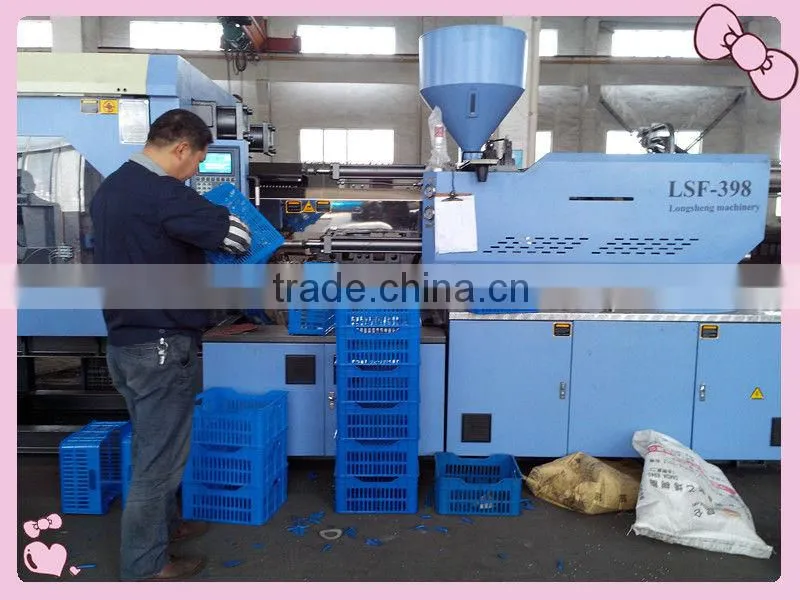

Large plastic basket making machine





Technical specification of LSF-780 basket makng machine












INJECTION UNIT



Unit

LS-780

A

B

C



Screw Diameter

Mm

95

1005

115



Screw L/D Ratio

L/D

24.3

22

20



Short Size

Cm3

3260

3982

4775



Injection weight

G

2965

3620

4345



Injection Rate

g/s

618

741

890



Plasticizing capacity

g/s

85

98

115



Injection Pressure

Mpa

204

167

139



Screw Speed

Rpm

0-110









CLAMPING UNIT

Clamp Force

KN

7800

Space Between Tie Bars

mm

980*980

Toggle Stroke

mm

980

Max. Mold Height

mm

980

Min. Mold Height

mm

400

Ejector Stroke

mm

260

Ejector Tonnage

KN

196

Ejector Number

P

21





OTHERS

Max. pump Pressure

Mpa

16

Pump motor powder

Kw

37+37

Heater Power

Kw

58.5

Machine Dimension(L*W*H)

M

10.5*2.6*3.8

Machine Weight

T

45

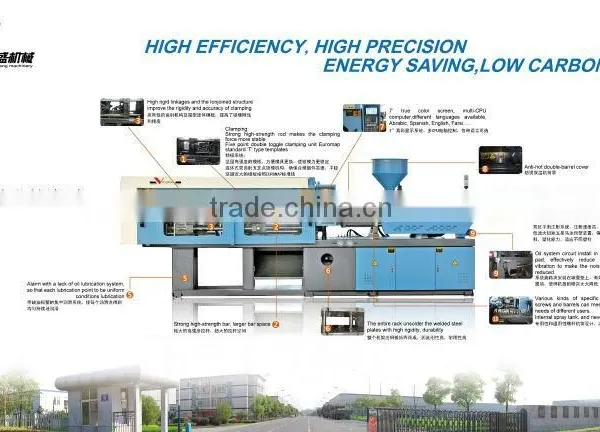

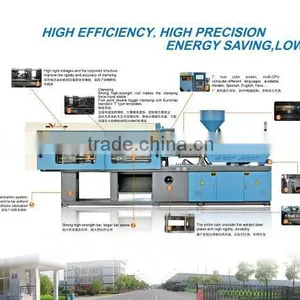

Some of the important features:
  • Clamping system:  Faster response, steable and high rigidity
  • Injection system:    Accurate and flexible, lower rejection rate
  • Control system:      Computer and simple operation,molding data memory system
  • Power system:        Energy saving, high efficient and precise
  • Metal parts:              The thickness of our frame, metal plate and wallboard are thicker than other company.
Other Information
  • Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
  • Visiable lubrication system:  on time clean, avoid cast steel parts abrasion and broken.
  • Oil treasure: Filter of hydraulic oil,good for pump and valves
  • Long working life: Imported spare parts and updated version
  • Aftersales service: Professional & timely
