Gallon Bottle preform Injection Molding Machine
- 50 Set / Sets per Month
- shanghai
- T/T Credit Card
Product Details
Condition: | New | Product Type: | Plastic Bottle | Place of Origin: | Jiangsu, China |
Brand Name: | Longsheng | Model Number: | LSF-398 | Voltage: | 380V |
Power(W): | 16kw | Dimension(L*W*H): | 7.3*2*2.2 | Weight: | 16ton |
Certification: | ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Nude look
Product Description
Specifications
Production:120-1000pcs/hEnergy saving
preforms in different weight and neck sizes
imported spare parts
professional service

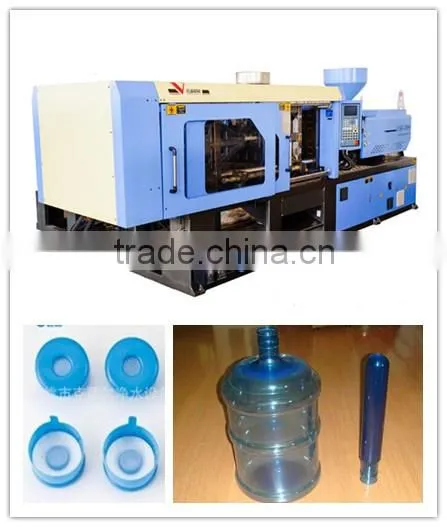

Gallon Bottle preform Injection Molding Machine
Gallon Bottle preform Injection Molding Machines we build, Clamping force from 3980 to 1680kn, injection weight from 1500 to 50000g.
Our strong technical team always offer timely and professional services which will give technology and production support to every customer.
INJECTION UNIT | Unit | LSF-398 | |||
A | B | C | |||
Screw Diameter | Mm | 70 | 75 | 80 | |
Screw L/D Ratio | L/D | 21.4 | 20 | 18.8 | |
Short Size | Cm3 | 1385 | 1590 | 1809 | |
Injection weight | G | 1260 | 1447 | 1646 | |
Injection Rate | g/s | 310 | 356 | 405 | |
Plasticizing capacity | g/s | 60 | 65 | 70 | |
Injection Pressure | Mpa | 195 | 158 | 139 | |
Screw Speed | Rpm | 0-165 | |||
CLAMPING UNIT | Clamp Force | KN | 3980 | ||
Space Between Tie Bars | mm | 720*720 | |||
Toggle Stroke | mm | 700 | |||
Max. Mold Height | mm | 760 | |||
Min. Mold Height | mm | 280 | |||
Ejector Stroke | mm | 200 | |||
Ejector Tonnage | KN | 110 | |||
Ejector Number | P | 13 | |||
OTHERS | Max. pump Pressure | Mpa | 16 | ||
Pump motor powder | Kw | 37 | |||
Heater Power | Kw | 24.8 | |||
Machine Dimension(L*W*H) | M | 7.3*2.0*2.2 | |||
Oil Tank Capacity | L | 850 | |||
Machine Weight | T | 16 |
- Clamping system: Faster response, steable and high rigidity
- Injection system: Accurate and flexible, lower rejection rate

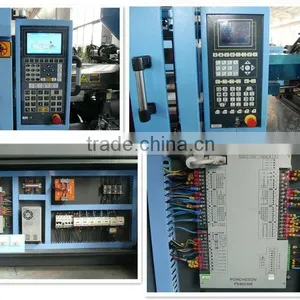

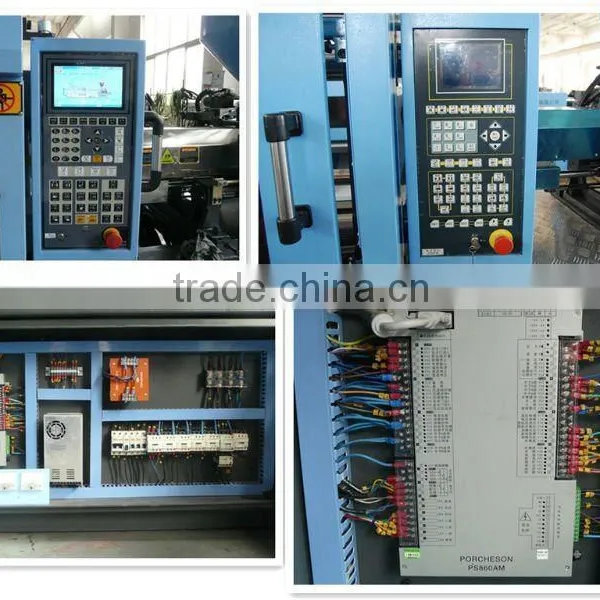

- Control system: Computer and simple operation,molding data memory system
- Power system: Energy saving, high efficient and precise
- Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

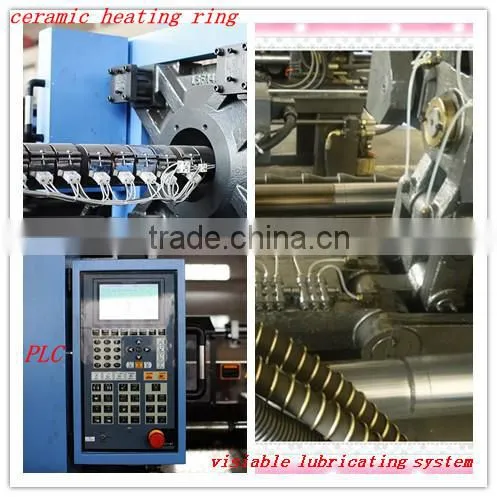

- Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
- Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
- Oil treasure: Filter of hydraulic oil,good for pump and valves
- Long working life: Imported spare parts and updated version
- Aftersales service: Professional & timely
Company Profile
Changzhou Longsheng Machinery Co., Ltd. (Longsheng) is located at Zhonglou Science and Technology Industry Park of Changzhou. We mainly produce and sell plastic injection molding machines, with high technology and reliable quality. Our products are selling well all over the world. We compare price with the same quality, while comparing quality with the same price, and compare service with the same quality and price, so as to improve our management. We always integrate optimized designs with manufacture and good sales service together. We utilize 24 hours networking for sales services. All lifecycle services for products and smile are our characteristics.
Ways to success start from Longsheng. With strong capability, Longsheng is devoted to building a brand name - Longsheng Machinery Series. The clamp force of our machines ranges from 600KN to 16800KN, and shot weight ranges from 63g to 10,000g. Our plastic injection molding machines are widely applied in the areas of automobile, mechanical, chemical, and electrical industries, daily supplies, and toys.
With good quality, professional services and sincere credit, Longsheng can go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefits. We can try to create a prosperous future with our customers as we always do.
