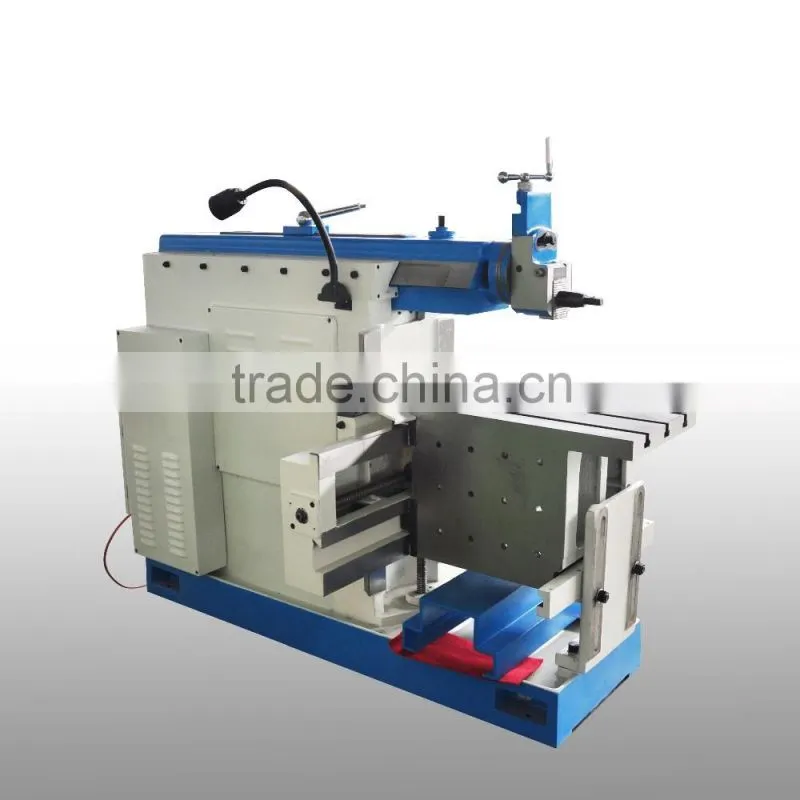

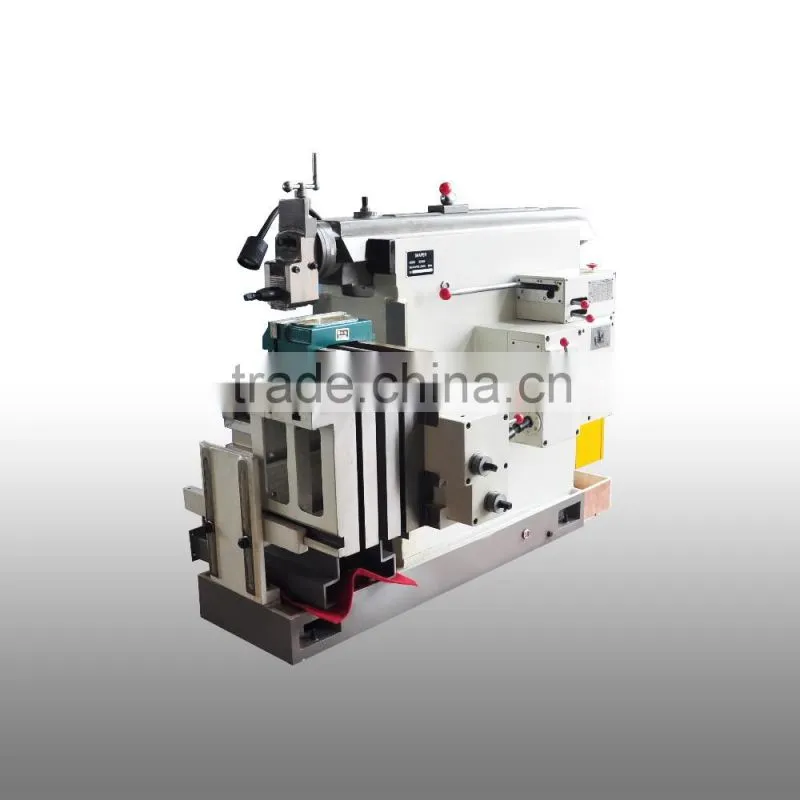

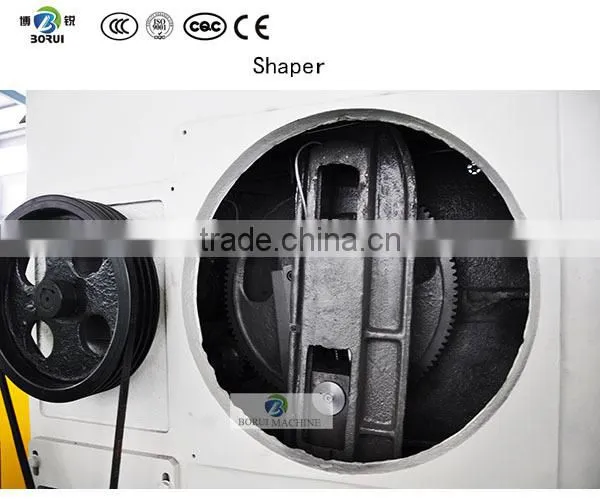

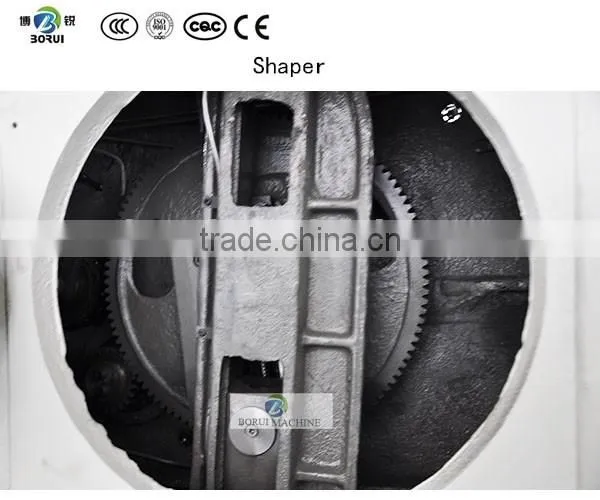

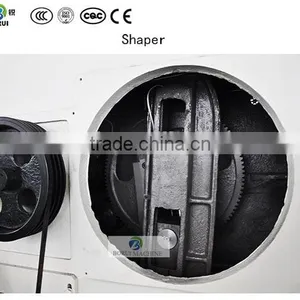

BC6050 Advantages Of Shaping Machine
Feature:
Shaper is mainly used for planning the plane on the small and medium-size workpieces in small batch production of a single piece, forming the surface and grooves . Its five characteristics:
1. Planner bench can turing angle of the table with horizontal and lift moving mechanism; for planning the inclined plane, thereby expanding the scope of use.
2. Planner feed system uses a cam mechanism to adjust the feed rate. It is very convenient to change the feeding rate.
3. Planer equipped with cutting system overload safety angencies. Once occur careless operation, external influences or cutting overload, it will shift to self-skid, and non-sestructive the machine.
4. Gap between the ran and the bed rail, the speed gear and the main sliding guide surface, will be lubricated by the pump shot oil.
5. Planner is equipped with a clutch and parking brake device. So do not need to cut off the power when changing the speed, stard the machine or braking the machine.
Model |
BC6050 |
||
Max .shapping length(mm) |
500 |
650 |
|
Max. range of the horizontal movement of the table(mm) |
525 |
630 |
|
Max. distance between the ram bottom and table(mm) |
370 |
380 |
|
Max. length of the vertical movement of table(mm) |
270 |
315 |
|
Dimensions of table top(L×W)(mm) |
440×360 |
630×400 |
|
Max. stroke length of the tool head(mm) |
120 |
120 |
|
Max. swivel angle of the tool head(°) |
±60° |
±60° |
|
Max. section of tool(W×T)(mm) |
20×30 |
20×30 |
|
Number of ram reciprocation per minute(NO/min) |
14-80 |
14-80 |
|
Range of table feed |
Horizontal |
0.2-0.25 0.08-1 |
0.2-0.25 0.08-1 |
Vertical(mm/rpm) | |||
Speed of rapid travel of table |
Horizontal |
0.95 0.38 |
0.95 0.38 |
Vertical | |||
width of the T-slot for center positioning(mm) |
18 |
18 |
|
Power of the main motor(k w) |
3 |
3 |
|
N.W/G.W(kg) |
1650 |
2200 |
|
Overall dimensions(L×W×H)(mm) |
2160×1070×1194 |
2382×1210×1504 |
|
Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machineand other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and
always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
Q: How do we confirm the accuracy and performance of machines?
A:(1) Regarding the performance ,we could produce a workpiece for your consult ,which will be produced according to the customer's sample that send to us.
(2)You could inspect machine accuracy by online video
(3)You also could check our factory and machine quality by SGS or other Inspecting Authority.
Q: Can you change the voltage of machine?
A:Sure,We can change the voltage according to different area. 110V-220V-380V-400V-440V
Q: What's the delivery time after payment ?
A: It need about 30 days if the machine is customized .and it just need about 20 days if your machine is universal .
Q: How long is your quality guarantee period?
A:One year, if machine has problem, we will provide accessories in free, in the meantime, we can use DHL or TNT express delivery.
We guarantee that if customers have questions, we will reply within 8 hours, and develop a set of complete solutions according to customers’ problems
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have.
