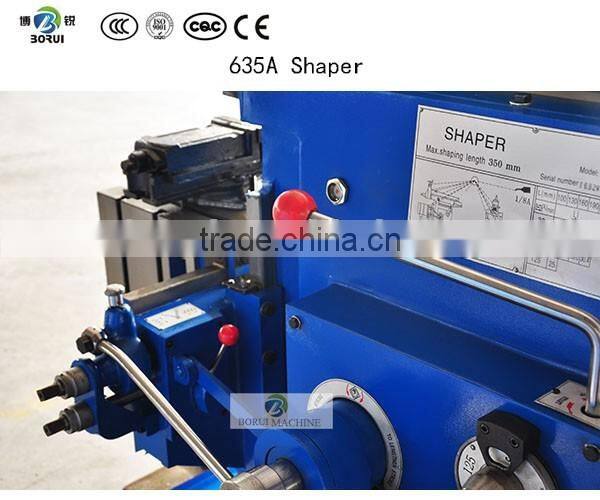

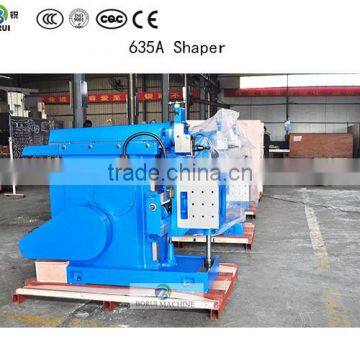

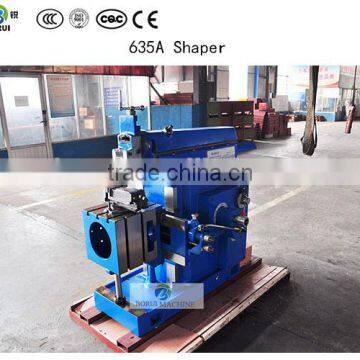

B635A Planer Machine With High Quality
- 20 Set / Sets per Month
- Qing Dao Port
- T/T L/C D/P D/A Credit Card PayPal
- vertical metal slotting machine BC5063 with CE standard factory direct sell
- factory direct sell vertical metal slotting machine BK5032 with CE standard
- factory direct sell vertical metal slotting machine BK5035 with CE standard
- vertical metal slotting machine BC50100 factory direct sell
- Heavy Duty BC50125 Metal Slotting Machine with CE from China Factory
- factory direct sell vertical metal slotting machine BK5030 with CE standard
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | BORUI |
Model Number: | B635A | Voltage: | Customer Requireme | Power(W): | 1.5kw 1400r/min |
Dimension(L*W*H): | 1530X930X1370 MM | Weight: | 1100kg | Certification: | ISO9001 |
Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Shaper Machine using:
Shaper Machine ram could be straight reciprocating motion ,and the Tool rest could rotary to multiple angle in the vertical plan . Also could manual feeding .the workbench takes along the workpieces making the intermittent horizontalorverticalfeedmovement . The machine could process plan, groove, dovetail surface ,also could process the forming surface ,and also could cut the workpieces fixed on workbench by the reciprocating motion tool rest .
Feature:
Machine has features as following : advanced design, beautiful shape, reliable performance and stable precision, simple operation, convenient maintenance.
Model | BC635A Shaper Machine | |
Maximum cutting length(mm) | 350 | |
Maximum distance from ram bottom to table surface(mm) | 330 | |
Maximum table horizontal travel(mm) | 400 | |
Maximum table vertical travel(mm) | 270 | |
Leading surface of the planer to bed out of the maximum distance | 550 | |
The maximum displacement of the ram | 170 | |
Maximum turning angle of the worktable(no vice) | ±90° | |
Maximum turning angle of the worktable(vice) | ±55° | |
The turret maximum vertical travel | 110 | |
Number of ram strokes per minute (NO/min) | 32,50,80,125, | |
The ram back and forth a table feed amount | Wheeled round a tooth(vertical) | 0.18 |
Wheeled round a tooth(horizontal | 0.21 | |
Wheel rotation 4 tooth(vertical) | 0.73 | |
Wheel rotation 4 tooth(vertical) | 0.84 | |
Motor Power | 1.5kw 1400r/min | |
Package Size (mm) | 1530×930×1370 | |
N.W/G.W | 1000kg/1200kg |
Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machineand other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and
always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
Q: How do we confirm the accuracy and performance of machines?
A:(1) Regarding the performance ,we could produce a workpiece for your consult ,which will be produced according to the customer's sample that send to us.
(2)You could inspect machine accuracy by online video
(3)You also could check our factory and machine quality by SGS or other Inspecting Authority.
Q: Can you change the voltage of machine?
A:Sure,We can change the voltage according to different area. 110V-220V-380V-400V-440V
Q: What's the delivery time after payment ?
A: It need about 30 days if the machine is customized .and it just need about 20 days if your machine is universal .
Q: How long is your quality guarantee period?
A:One year, if machine has problem, we will provide accessories in free, in the meantime, we can use DHL or TNT express delivery.
We guarantee that if customers have questions, we will reply within 8 hours, and develop a set of complete solutions according to customers’ problems
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have.
