Bitumen Insulation Tank

Bitumen Insulation Tank thumbnail-1
Bitumen Insulation Tank photo-1
US$ 5,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Sinosun
Contact Supplier Request Quote Chat Now
Zhengzhou SINOSUN Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name Sinosun
Model Number 40/30T
Voltage 380v
Certification CE ISO Gost
Warranty 15months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Bitumen is storage in insulation tanks, tank is covered by insulation material, there are hot oil pipe line inside the tanks.

Bitumen system is composed of bitumen insulation tanks, hot oil heating boiler pump and pipelines, valves, flanges, metal gaskets and other accessories.



Bitumen is storage in insulation tanks, tank is covered by insulation material, there are hot oil pipe line inside the tanks. Hot oil is heating by oil boiler and go through pipelines . at the same time hot oil transfer the heat to bitumen. So that the bitumen raises to rated temperature

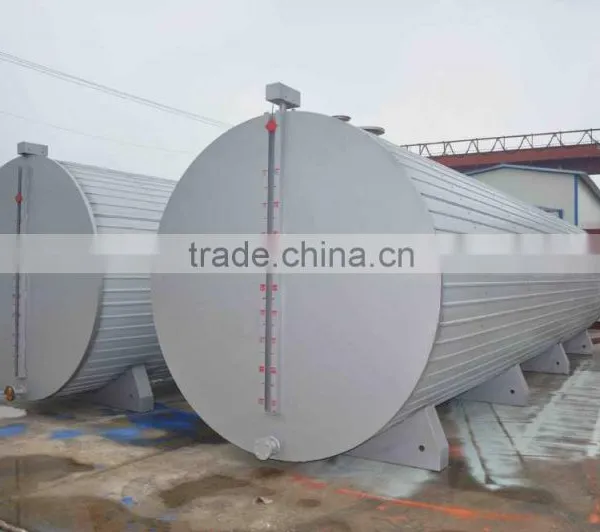

Bitumen Insulation Tank

Tank volume:                         40m3×2

Type:                                        horizontal

Insulation material :                    100mm

Conveying Pipeline & Pumps

Bitumen pump:DN80, flow rate:          600 L/hr

Bitumen pump power:                  7.5 kw

Temperature auto-controller of bitumen

Bitumen inlet / outlet insulation pipeline and vavels

Hot oil circulating pumps                DN25, flow rate 4.5 m³/hr

Hot oil return pipelines ,vavels, connectors



Bitumen Spraying Pump:                forced feeding

Pump flow rate:                        800L/hr

Pump power:                          11kw





Hot Oil Heating System  for choose

1.1 Hot Oil Boiler

Heating capacity:                     600,000 kcal/h

Max temperature:                     280℃

Hot oil pump power:                   15kw×2

Hot oil pump flow rate :                80m³/ hr



1.2 Hot Oil Burner:

Model:                                 RL44MZ

Capacity:                   1st stage    13-20 kg/hr

                                       155-235 kw

                           2nd stage    20-41 kg/hr

                                       235-418 kw

Pump output:                            67 kg/hr (at 12 bar)

Pump pressure range                    10-20 bar



Diesel Tank for Hot Oil Burner

Type :                                 Horizontal

Tank volume:                         10,000 liter

Bunker Oil Tank for Heating Drum Burner

Type :                                Horizontal

Tank Volume:                        30,000 liter

Heating:                              Hot Oil

Insulation Material                     100mm

Pressure Resistance                   1 bar

Conveying Pipelines

All conveying pipelines & valve from fuel tank to burner
