Specifications
bitumen equipment wildly used in the road construction project bitumen storage is insulation and covered by insulation materialBitumen Equipment Bitumen system is composed of bitumen storage, hot oil heating boiler pump and pipelines, valves, flanges, metal gaskets and other accessories.
Bitumen is storage in insulation tanks, bitumen storage is covered by insulation material, there are hot oil pipe line inside the tanks. Hot oil is heating by oil boiler and go through pipelines . at the same time hot oil transfer the heat to bitumen. So that the bitumen raises to rated temperature

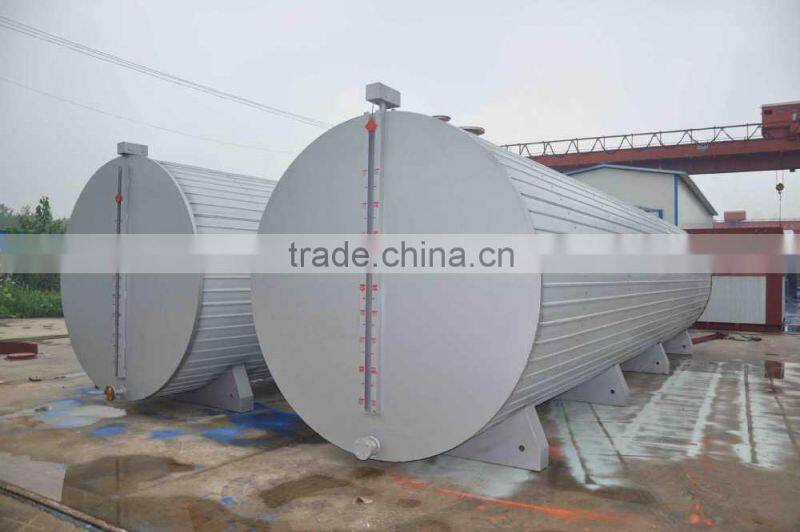

Bitumen Equipment -Bitumen Insulation Tank
Tank volume: 40m3×2
Type: horizontal
Insulation material : 100mm
Conveying Pipeline & Pumps
Bitumen pump:DN80, flow rate: 600 L/hr
Bitumen pump power: 7.5 kw
Temperature auto-controller of bitumen Bitumen inlet / outlet insulation pipeline and vavels
Hot oil circulating pumps DN25, flow rate 4.5 m³/hr
Hot oil return pipelines ,vavels, connectors
Bitumen Spraying Pump: forced feeding
Pump flow rate: 800L/hr
Pump power: 11kw

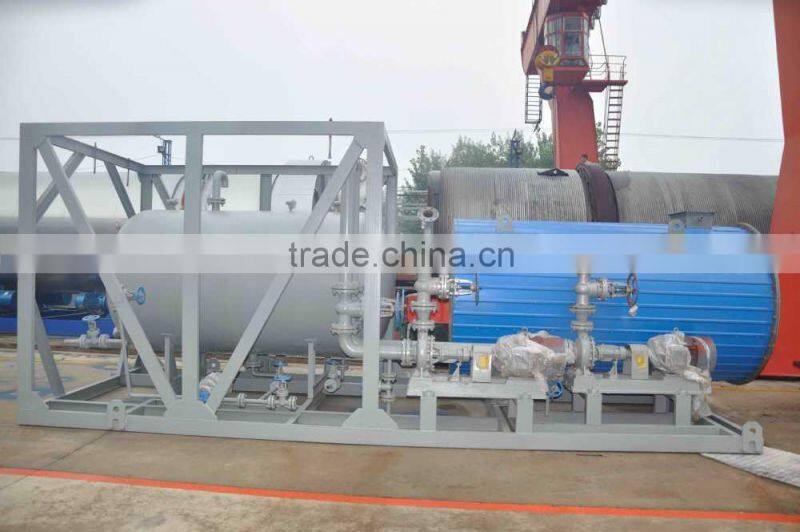

Bitumen Equipment -Hot Oil Heating System for choose
1.1 Hot Oil Boiler
Heating capacity: 600,000 kcal/h
Max temperature: 280℃
Hot oil pump power: 15kw×2
Hot oil pump flow rate : 80m³/ hr
1.2 Hot Oil Burner:
Model: RL44MZ
Capacity: 1st stage 13-20 kg/hr
155-235 kw
2nd stage 20-41 kg/hr
235-418 kw
Pump output: 67 kg/hr (at 12 bar)
Pump pressure range 10-20 bar
Diesel Tank for Hot Oil Burner
Type : Horizontal
Tank volume: 10,000 liter
Bunker Oil Tank for Heating Drum Burner
Type : Horizontal
Tank Volume: 30,000 liter
Heating: Hot Oil
Insulation Material 100mm
Pressure Resistance 1 bar
Conveying Pipelines
All conveying pipelines & valve from fuel tank to burner
