Z3050X16 Hydraulic Rock Arm Drilling Machine

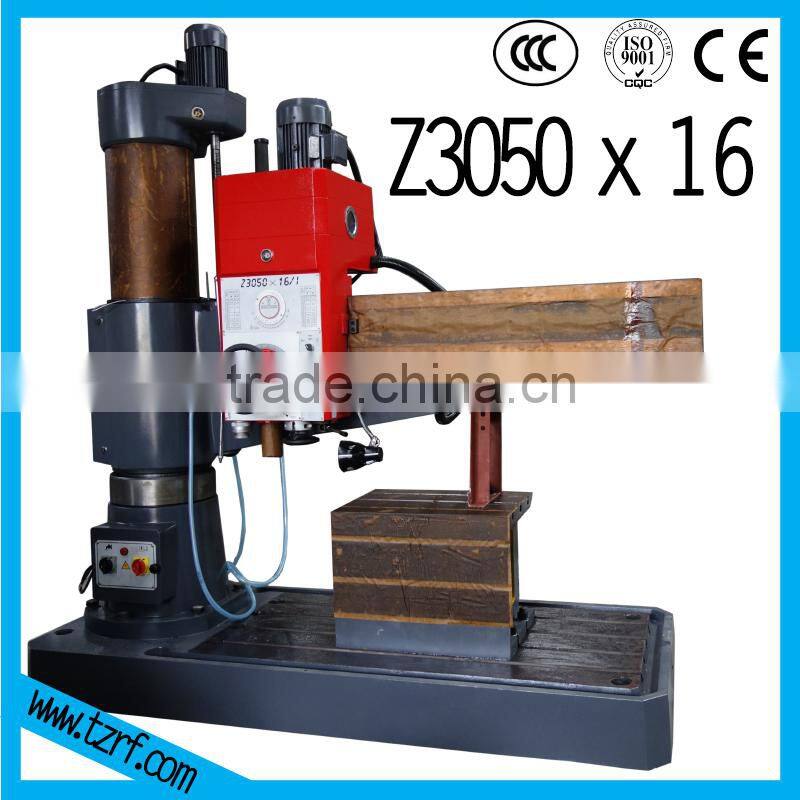

Z3050X16 Hydraulic Rock Arm Drilling Machine thumbnail-1

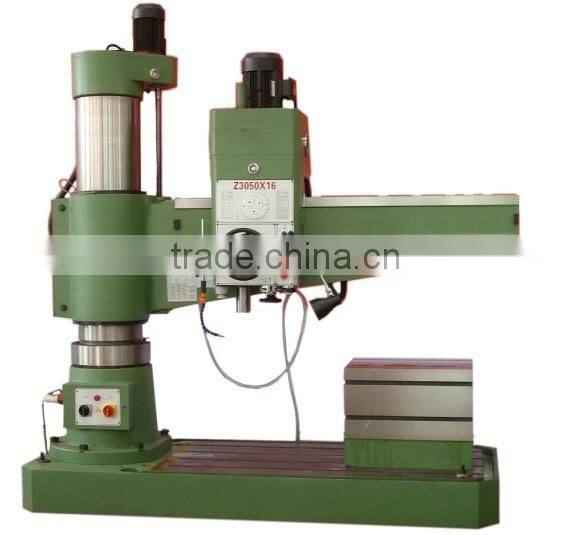

Z3050X16 Hydraulic Rock Arm Drilling Machine photo-1
US$ 8,300 - 9,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Drilling Speed:
25-2000 r.p.m
Contact Supplier Request Quote Chat Now
Tengzhou Runfa Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Drilling Speed 25-2000 r.p.m
Place of Origin Shandong, China
Brand Name HELI
Model Number Z3050
Voltage 380v/415v
Power(W) 4kw
Dimension(L*W*H) 2500X1070X2840mm
Weight 3500kg
Certification CE ISO9001
After-sales Service Provided No overseas service provided

Z3050X16 Hydraulic Rock Arm Drilling MachineZ3050X16 Hydraulic Rock Arm Drilling Machine



he radial drilling machine of Model Z3050×16 is one of the large multi-purpose equipments, which is characterized by the high efficiency , close tolerance, hydraulic  pressure transmission. Drilling diameter of 50mm is used to drill, expand, ream, groove, tap the middle and large parts and even to bore the holes if it equipped with the necessary devices. This type of machine is easy to operate and is an ideal equipment in the manufacturing and repair fields; and it has been awarded the top quality medal of Shandong Province many times and sells well at home and abroad.

Max drilling diameter

50mm

Distance from spindle axis to column

Max

1600mm

Min

350mm

Distance from spindle nose to working surface of base plate

Max

1220mm

Min

320mm

Taper of spindle (Mores No.)

5#

Spindle travel

315mm

Spindle travel

25-2000rpm

Range of spindle feeds

0.04-3.2mm/r

Horizontal travel of spindle head

1250mm

Power of main drive motor

4kw

Overall dimensions of machine (L*W*H)

2500x1070x2840(mm)

Net weight

3500kg
