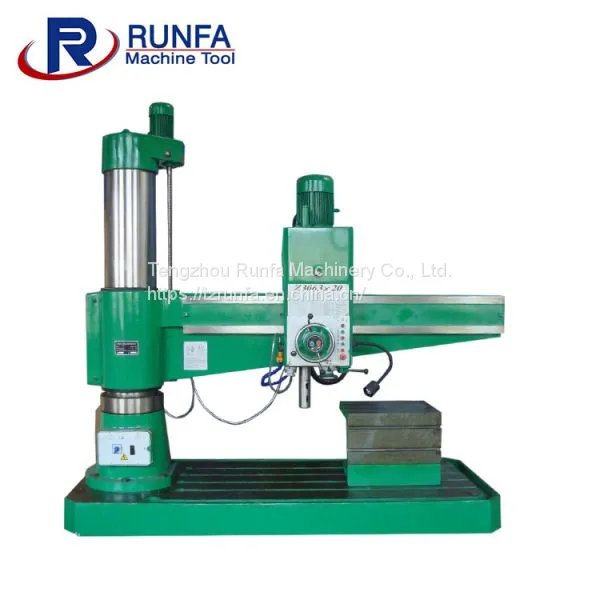

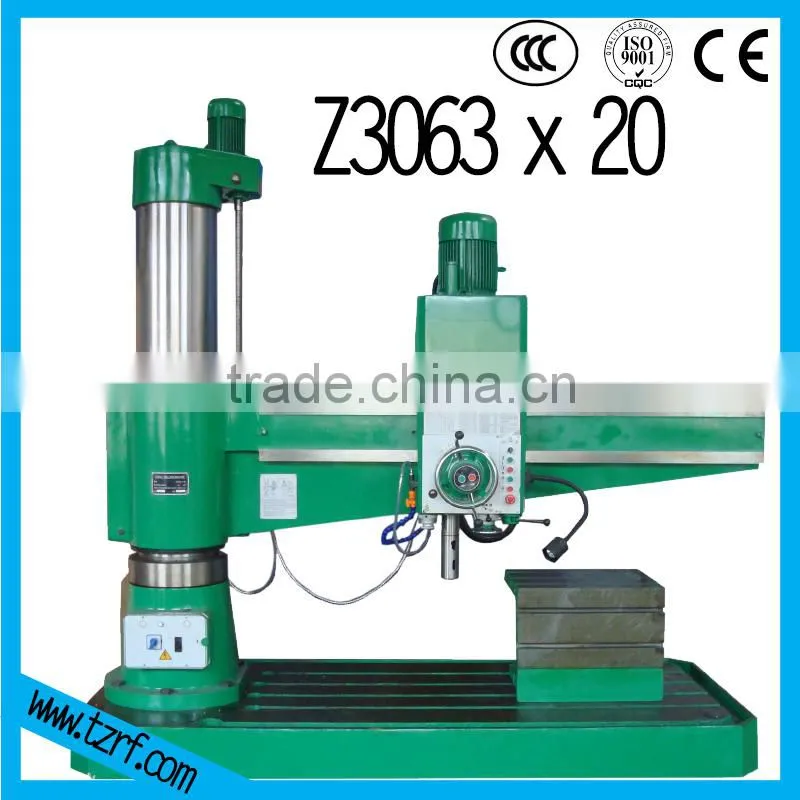

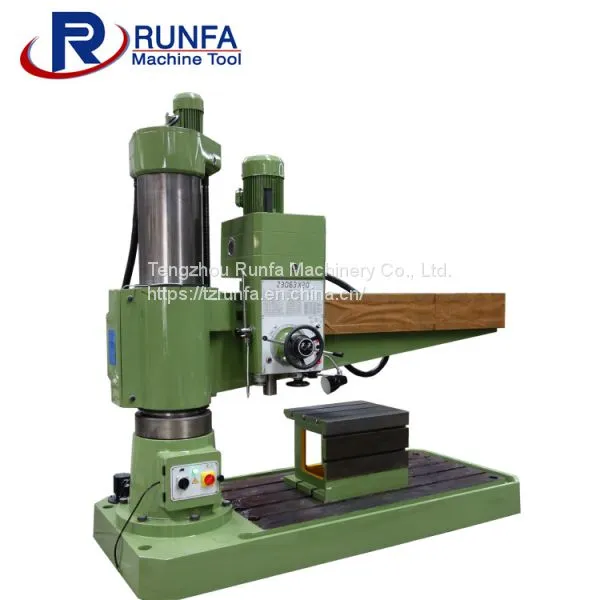

Radial Drill Machine Z3063x20 with 2000mm length ARM
- QINGDAO/SHANGHAI
- T/T
- 15 days
You May Like
Product Details
| Brand Name | RUNFA | Place of Origin | China | |
| Model Number | Z3063 | Certification | CE ISO9001 | |
| After-sales Service Provided | No overseas service provided | Weight | 4900kg | |
| Dimension(L*W*H) | 2900x1130x3090mm | Voltage | 220V/380V/400V | |
| Condition | New | Power(W) | 4kw | |
| CNC or Not | Normal | Drilling Speed | 25-2000rpm |
Product Description
3063x20 Radial Drilling Machine is apply for the middle and big workpiece to drill hole,enlarge hole,reaming , mill surface,tapping and etc. It also can boring hole on the condition of good device.
Z3063x20 radial drilling machine is improved on the based of new type machines. It is used widely.
This machine have many features as follows:
1. Adopt hydraulic per-selection variable speed structure, it can save time.
2. The spindle have positive and reverse ,stop,variable speed, neutral position and etc. All this operation can controlled by one handle, easily to operate.
3. The spindle box,rocker arm,inner and outer column adopt diamond clamping structure with hydraulic drive. Clamping reliable.
4. The rocker arm guideway,the surface of outer column, the spindle,the spindle quill,the inner and outer column . All these parts are dealt by quenching. This technology can keep the machine have good stability and prolong the machine’s life.
5. Have prefect safety protection device and outer column’s protection.
6. It also adopt a series of effective methods to keep the durable precision and life.
7. This machine have perfect electrical device, so it can guarantee the user’s safety ,reliable .
Max. Drill diameter | 63mm |
Distance from spindle axis to column surface | 350-2000mm |
Traverse of spindle box | 1650mm |
Distance from spindle nose to table surface | 320-1420mm |
Lifting traverse of rocker arm | 780mm |
Lifting speed of rocker arm | 0.02m/second |
Rotary angle of rocker arm | 360° |
Spindle taper | MT5 |
Spindle speed range | 25-2000r/min |
Spindle speed step | 16 step |
Spindle feed range | 0.04-3.2mm/r |
Spindle feed step | 16 step |
Spindle traverse | 315mm |
Drill depth of dial per rotary | 122.5mm |
Max. Torsional strength of spindle | 630Nm |
Max. Feed force of spindle | 23400N |
Main motor power | 4kw |
Motor power of lifting | 1.5kw |
Motor power of spindle box,vertical column,hydraulic clamping | 0.75kw |
Coolant power | 0.09kw |
Net weight | 4900kg |
Overall size | 2900x1130x3090mm |
Packing List
No. | Item Name | Model | QTY | Remark |
1 | Radial Drilling machine | Z3063 X 20 | 1 |
|
2 | Worktable | 750 x 580 x500;500011A | 1 |
|
3 | Hexagon nut | M24;J11-1 | 4 |
|
4 | T-slot bolt | 400303 | 4 |
|
5 | Washer | 24;J51-1 | 4 |
|
6 | Foot screw | M20X500;J23-8 | 6 |
|
7 | Drift | 3;SZSS81-1 | 1 |
|
8 | Drift | 4;SZSS81-1 | 1 |
|
9 | Reduction sleeve | 3x2;SZSS82-1 | 1 |
|
10 | Reduction sleeve | 4x3;SZSS82-1 | 1 |
|
11 | Reduction sleeve | 5x4;SZSS82-1 | 1 |
|
12 | Oil injector | 100;GB165-74 | 1 |
|
13 | Nut | M20 | 6 |
|
14 | Washer ring | ø20 | 6 |
|
15 | Washer | 4;SZSG91-2 | 5 |
|
16 | Washer | 6;SZSG91-2 | 5 |
|
17 | Washer | 8;SZSG91-2 | 5 |
|
18 | Washer | 10;SZSG91-2 | 5 |
|
19 | O ring | 7X1.9;G91-2 | 5 |
|
20 | O ring | 9X1.9;G51-2 | 5 |
|
21 | O ring | 11X1.9:G51-2 | 5 |
|
22 | O ring | 13X1.9;G51-3 | 5 |
|
23 | Operation manual |
| 1 |
|
24 | Quality Certificate |
| 1 |
|
25 | Packing list |
| 1 |
|
