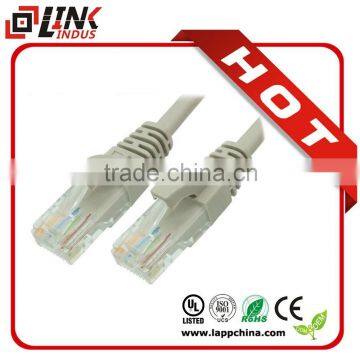

high speed Networking Cable Utp Cat5e Patch Cord rj45 plugs
- 90000 Kilometer / Kilometers per Month
- SHENZHEN
- T/T D/P D/A Credit Card PayPal
You May Like
-
Data Transmission patch cable rj45 connector
-
Cat 5e Type and 8 Number of Conductors Patch Cord Cable
-
1m 3m 5m 10m 50m fast cables price list jumper cable cat6 master cable
-
LOW PRICE CCA solid stranded 24AWG 3M Cat 5E UTP Patch Cord Cabling
-
1.5m Cat5 Cat5E Cat 5 RJ45 UTP Ethernet Network Patch Cable
-
utp rj45 patch cord manufacturer Cat 5e & Cat 6 stranded copper RJ45 cables with plating connectors
Product Details
Place of Origin | Guangdong, China | Brand Name | Linkindus | |
Model Number | high speed Networking Cable Utp Cat5e Patch Cord rj45 plugs | Type | Cat 5e | |
Number of Conductors | 8 |
Product Description
high speed Networking Cable Utp Cat5e Patch Cord rj45 plugs
COMPLIANCE WITH
1. ISO/IEC 11801
2. TIA/EIA-568-B.2
3. IEC-60332-1
4. UL 444 (CM/CMR/CMP grade)
5. RoHS
CONSTRUCTION
1. Conductor:23/24/26/28AWG Stranded BC
2. Insulation:Solid polyolefin.
3. Cabling:4 twisted pairs cabled Side by side into the cable core.
4. OD:5.3-6.5MM
5. Jacket:PVC/FR-PVC/LSOH
ELECTRICAL PROPERTIES | ||||||||
Conductor Resistance | Max. 138 ohms/km at 20℃ | |||||||
Insulation Resistance | Min. 5000 mega ohms-km at 20℃ | |||||||
Dielectric Test | 1000V DC /1 min ; No Breakdown | |||||||
Temperature Rating | 75℃ | |||||||
Voltage Rating | 30V | |||||||
f(MHZ) | Zin-OS | Fitted Z | SRL | ATT(PATCH) | DELAY | MAX. DELAY SKEW(ns/100M) | NEXT | PSNEXT |
0.772 | 100±15 | 100±15 | 19.40 | 1.8 | 574.97 | 45.0 | 67 | 64 |
1 | 20.00 | 2 | 570 | 45.0 | 65.3 | 62.31 | ||
4 | 23.00 | 4.1 | 552.00 | 45.0 | 56.3 | 53.28 | ||
8 | 24.50 | 5.8 | 546.73 | 45.0 | 51.8 | 48.77 | ||
10 | 25.00 | 6.5 | 545.38 | 45.0 | 50.3 | 47.31 | ||
16 | 25.00 | 8.2 | 543.00 | 45.0 | 47.3 | 44.25 | ||
20 | 25.00 | 9.3 | 542.05 | 45.0 | 45.8 | 42.8 | ||
25 | 24.30 | 10.4 | 541.20 | 45.0 | 44.3 | 41.35 | ||
31.25 | 23.60 | 11.7 | 540.44 | 45.0 | 42.9 | 39.89 | ||
62.5 | 21.50 | 17 | 538.55 | 45.0 | 38.4 | 35.38 | ||
100 | 20.10 | 22 | 537.60 | 45.0 | 35.3 | 32.31 | ||
250 | 24.30 | 10.4 | 541.20 | 45.0 | 44.3 | 41.35 |
high speed Networking Cable Utp Cat5e Patch Cord rj45 plugs
We Shenzhen Lapplink Industry Co., Limited, for the purpose of producing CABLES due to the rapid developing requirements of the century, Lapplink was established in 2008 in Jieyang city Guangdong of China. We moved overseas department to Shenzhen in 2015.
Lapplink has started its production under the principle: “high quality and on time production”.
Our main products:
1) Electrical copper wires(rigid and flexible);
2) Communication cables (solid and stranded);
3) Coaxial cables(RG6,RG59,RG59 with power...);
4) Control cables with screens, shielding or other features;
5) Power cables armored or non-armored and with other features;
6) Telecommunication cables including data cables and telephone cables;
7) Instrument cables, particularly RUBBER cables;
8) Naked conductor, such as ACSR, AAC, AAAC and ABC cables
9) Special cables of Arctic grade, Fire-resistant, Oil-resistant & according to customers' requirements.
We already provide over 5,000,000KM Cat 5E and Cat 6 network cables in global market.
QI.
A. How can I place order?
You can contact us by email about your order details, or send us inquiry in below.
B. How can I pay you?
After you confirm our PI, we will request you to pay. T/T, Paypal and Western Union are the most usual ways we are using.
C. What’s the order procedure?
First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
D. What is your delivery time?
The delivery time is based on the quantity of the order. Normally our delivery time is about 15 days after the order confirmed.
QII.
1. Q: What kind of cable do you produce?
We specialize in producing lan cable,power cable,power cable,speaker cable etc.
2. Q: What's your MOQ?
A: Our MOQ is 10km per item. Free samples can be sent for your quality evaluation.
3. Q: What’s your delivery time?
Normally, our delivery time is 25 days after receiving deposit. Base on the quantity of the order.
4. Q: What are your payment terms?
We accept T/T, L/C. Other payments accept through negotiation.
5. Q: What is your manner of packing?
the color box and cartons,or wooden plates,wooden splints
It can as the customers'requests
6. Q: Can your factory customize cables based on customer’s samples?
Yes, we can. OEM and ODM are both welcome.
