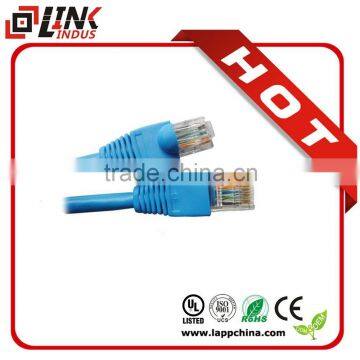

Professional network cable patch cat5e/cat6 jumper cable with great price
- 90000 Kilometer / Kilometers per Month
- SHENZHEN
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | Linkindus | |
Model Number | cat5e/cat6 jumper cable | Type | Cat 5e | |
Number of Conductors | 8 |
Product Description
Professional network cable patch cat5e/cat6 jumper cable with great price
COMPLIANCE WITH
1. ISO/IEC 11801
2. TIA/EIA-568-B.2
3. IEC-60332-1
4. UL 444 (CM/CMR/CMP grade)
5. RoHS
CONSTRUCTION
1. Conductor:23/24/26/28AWG Stranded BC
2. Insulation:Solid polyolefin.
3. Cabling:4 twisted pairs cabled Side by side into the cable core.
4. OD:5.3-6.5MM
5. Jacket:PVC/FR-PVC/LSOH
ELECTRICAL PROPERTIES | ||||||||
Conductor Resistance | Max. 138 ohms/km at 20℃ | |||||||
Insulation Resistance | Min. 5000 mega ohms-km at 20℃ | |||||||
Dielectric Test | 1000V DC /1 min ; No Breakdown | |||||||
Temperature Rating | 75℃ | |||||||
Voltage Rating | 30V | |||||||
f(MHZ) | Zin-OS | Fitted Z | SRL | ATT(PATCH) | DELAY | MAX. DELAY SKEW(ns/100M) | NEXT | PSNEXT |
0.772 | 100±15 | 100±15 | 19.40 | 1.8 | 574.97 | 45.0 | 67 | 64 |
1 | 20.00 | 2 | 570 | 45.0 | 65.3 | 62.31 | ||
4 | 23.00 | 4.1 | 552.00 | 45.0 | 56.3 | 53.28 | ||
8 | 24.50 | 5.8 | 546.73 | 45.0 | 51.8 | 48.77 | ||
10 | 25.00 | 6.5 | 545.38 | 45.0 | 50.3 | 47.31 | ||
16 | 25.00 | 8.2 | 543.00 | 45.0 | 47.3 | 44.25 | ||
20 | 25.00 | 9.3 | 542.05 | 45.0 | 45.8 | 42.8 | ||
25 | 24.30 | 10.4 | 541.20 | 45.0 | 44.3 | 41.35 | ||
31.25 | 23.60 | 11.7 | 540.44 | 45.0 | 42.9 | 39.89 | ||
62.5 | 21.50 | 17 | 538.55 | 45.0 | 38.4 | 35.38 | ||
100 | 20.10 | 22 | 537.60 | 45.0 | 35.3 | 32.31 | ||
250 | 24.30 | 10.4 | 541.20 | 45.0 | 44.3 | 41.35 |
cat5e/cat6 jumper cable
We Shenzhen Lapplink Industry Co., Limited, for the purpose of producing CABLES due to the rapid developing requirements of the century, Lapplink was established in 2008 in Jieyang city Guangdong of China. We moved overseas department to Shenzhen in 2015.
Lapplink has started its production under the principle: “high quality and on time production”.
Our main products:
1) Electrical copper wires(rigid and flexible);
2) Communication cables (solid and stranded);
3) Coaxial cables(RG6,RG59,RG59 with power...);
4) Control cables with screens, shielding or other features;
5) Power cables armored or non-armored and with other features;
6) Telecommunication cables including data cables and telephone cables;
7) Instrument cables, particularly RUBBER cables;
8) Naked conductor, such as ACSR, AAC, AAAC and ABC cables
9) Special cables of Arctic grade, Fire-resistant, Oil-resistant & according to customers' requirements.
We already provide over 5,000,000KM Cat 5E and Cat 6 network cables in global market.
A. How can I place order?
You can contact us by email about your order details, or send us inquiry in below.
B. How can I pay you?
After you confirm our PI, we will request you to pay. T/T, Paypal and Western Union are the most usual ways we are using.
C. What’s the order procedure?
First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
D. What is your delivery time?
The delivery time is based on the quantity of the order. Normally our delivery time is about 15 days after the order confirmed.
