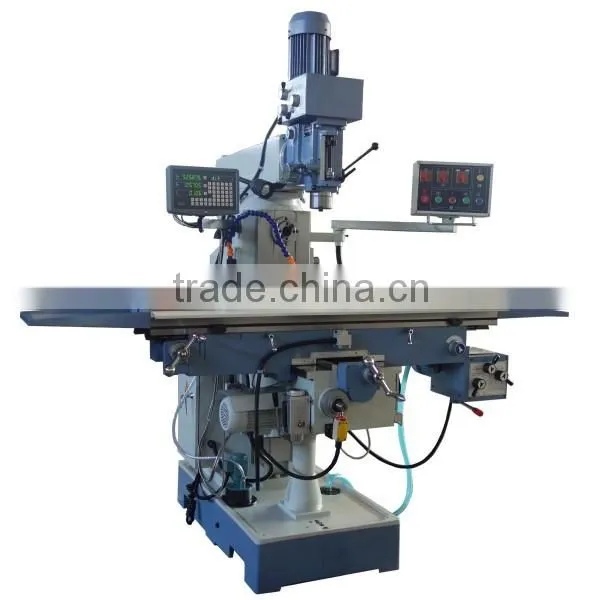

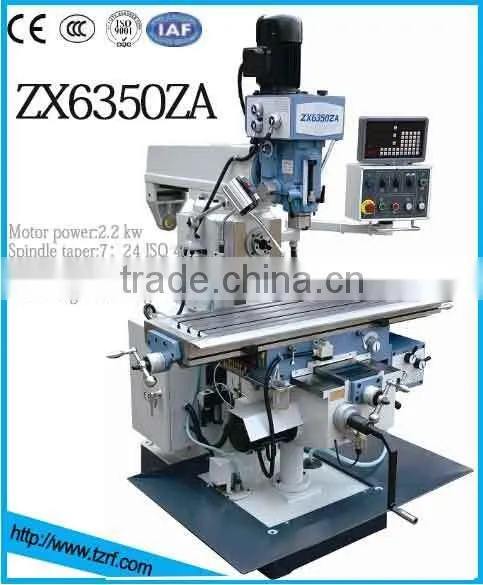

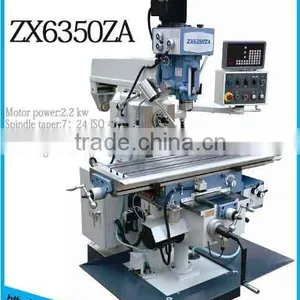

Help CenterProfessional Drilling And Milling Machine ZX6350ZA Vertical and Horizontal Milling
Related Products
-
ZX7124 SMALL MILLING MACHINEUS$ 1900 - 2500MOQ: 1 Set -
Small Drilling and Milling Machine ZXTM40US$ 800 - 860MOQ: 1 Set
-
Small Drilling and Milling Machine ZX50CUS$ 1,100 - 2,390MOQ: 1 Set
-
Drilling and Milling Machine ZX7550CW(Vertical and Horizontal)US$ 2,000 - 3,200MOQ: 1 Set
-
Drilling and Milling Machine ZX6350C(Vertical and Horizontal)US$ 2,800 - 3,800MOQ: 1 Set
Main features:
1. Spindlehead with automatic feed milling head

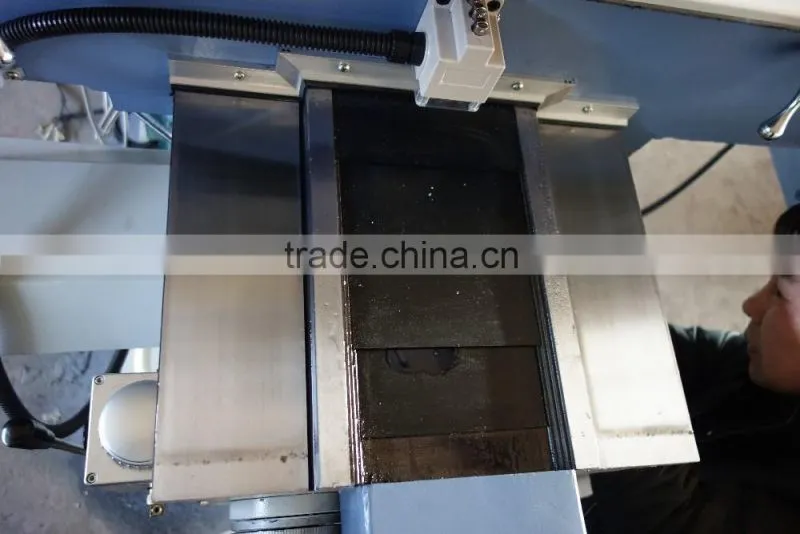

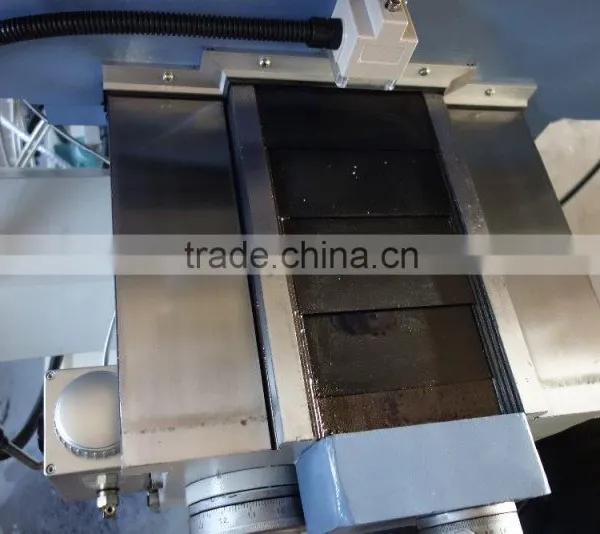

2. Rectangular guideway on lifting platform
3. High stability
4. Hardened on X, Y, Zaxes.
5. Vertical head swivels +- 45 degree.
6. X--axis travel can be with 800mm (Optional)
7.X,Y,Z 3 axis automatic feed.
Item |
Unit |
ZX6350ZA |
Spindle taper |
|
7:24 ISO40 |
Max Automatic Feed Drilling Diameter (for Casting Iron) |
mm |
8 |
Max Manual Drilling Diameter (for Casting Iron) |
mm |
50 |
Max Diameter of Vertical Millng Arbour |
mm |
25 |
Max diameter of boring hole |
mm |
120 |
Worktable size |
mm |
1250×320 |
Worktable travel(L/H/V) |
mm |
600/300/280 |
Vertical spindle nose to worktable |
mm |
90---370 |
Horizontal spindle centerline to worktable |
mm |
0---280 |
Vertical spindle centerline to vertical guideway |
mm |
200---550 |

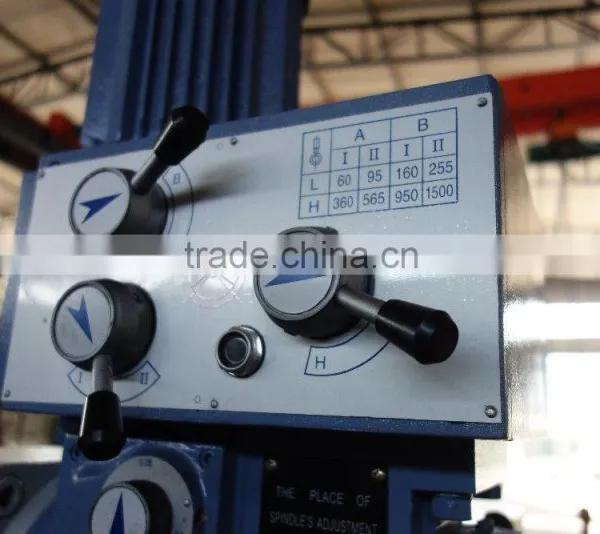

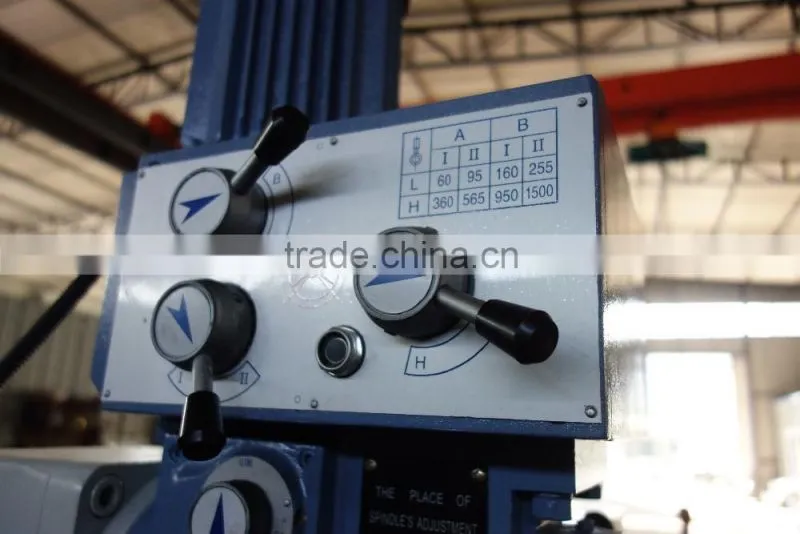

Spindle speed range |
r.p.m |
(8 steps)60---1500(Vertical) (12steps)30---1300(Horizontal) |
Automatic Power Feed of X,Y Axis |
mm/min |
(8 steps) 15-370 |
Vertical Spindle Travel |
mm |
120 |
Worktable t-slot (nunmber/width/distance) |
mm |
3/14/70 |
Main motor |
kw |
1.5(Vertical) 2.2(Horizontal) |
Worktable Automatic Power Feed Motor |
w |
750 |
Cooling Pmp Motor |
w |
40 |
Overall dimention |
mm |
1680×1480×2150 |
N.W/G.W |
kg |
1500/1600 |
