High Precisions Knee-type Drilling and Milling Machine ZX6350C(UNIVERSAL)

High Precisions Knee-type Drilling and Milling Machine ZX6350C(UNIVERSAL) thumbnail-1
High Precisions Knee-type Drilling and Milling Machine ZX6350C(UNIVERSAL) thumbnail-2
High Precisions Knee-type Drilling and Milling Machine ZX6350C(UNIVERSAL) thumbnail-3
High Precisions Knee-type Drilling and Milling Machine ZX6350C(UNIVERSAL) thumbnail-4
High Precisions Knee-type Drilling and Milling Machine ZX6350C(UNIVERSAL) photo-1
High Precisions Knee-type Drilling and Milling Machine ZX6350C(UNIVERSAL) photo-2

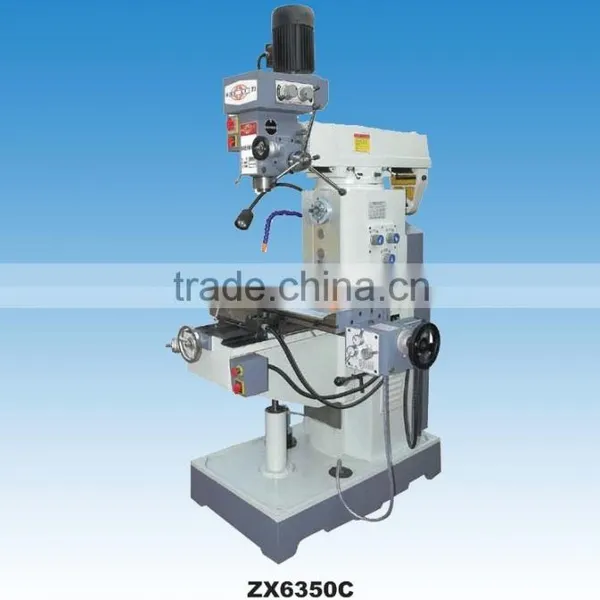

High Precisions Knee-type Drilling and Milling Machine ZX6350C(UNIVERSAL) photo-3
High Precisions Knee-type Drilling and Milling Machine ZX6350C(UNIVERSAL) photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HELI
Model Number:
ZX6350C
Contact Supplier Request Quote Chat Now
Tengzhou Runfa Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name HELI
Model Number ZX6350C
Voltage 380V
Rated Power (V)0.85/1.5,(H)2.2
Dimension(L*W*H) 1420*1120*2095mm
Weight 1200kg
Certification CE
Warranty one year
After-sales Service Provided Overseas service center available

Specifications

Drilling and Milling Machine ZX6350C Feature:
Automatical feed on cross
Manual feed on longitudinal
Manual feed on vertical

Drilling and Milling Machine ZX6350C Advantages:

1.small,flexibility

2.X ,Y axis power feed

3.Vertical and horizontal multifunctional drilling and milling machine

4.Gear drive milling head

5.Three axis hardened treatment



The horizontal knee-type milling machine is an universal metal cutting machine tools.Cylinder mill,round piece mill,

shape mill and end mill can be installed on the conical hole of main pivot of the machine

 which is suitable for processing plane surface,oblique plane,groove,hole,gear of all kinds of small medium parts.

User can select universal dividing head(a special auxiliary)to process groove of thread.The machine is an ideal processing equipment for machine manufacturing,mold,

instrument,automobile motorcycle and other trades.



 High Precisions Knee-type Drilling and Milling Machine ZX6350C(UNIVERSAL)

Drilling and Milling Machine ZX6350C Machine Main Technical Data



SPECIFICATION

UNIT

ZX6350C

Max.drilling dia.

mm

50

Max.end milling width

mm

120

Max.vertical milling dia.

mm

25

Max.boring dia.

mm

120

Max.tapping dia.

--

M16

Distance from spindle nose to table surface

mm

100-480

Range of spindle speed

r.p.m

115-1750(V)

40-1300(H)

Spindle travel

mm

120

Table size

mm

1200*280

Table travel

mm

660*210

Overall dimension

mm

1420*1120*2095

Motor power

kw

0.85(V)/1.5(H),2.2

N.W/G.W

kg

1200/1350



NO.

Item Name

Model

QTY

QTY

ZX6350C

ZX6350D

1

Drilling&Milling Machine

ZX6350

1

1

2

Drilling Chuck

Ø16

1

1

3

Inner-hexagonal Spanner

5#

1

1

4

Wedge Key



1

1

5

Reduction Sleeve

MT4/3

MT4/2

1

1

1

1

6

Draw Bar



1

1

7

Spindle Connecting Rod



1

1

8

Wrench

S17~19

1

1

9

Mill Chuck

MT 4

1

1

10

Boring Rod



1

1

11

Handle Lever



1

1

12

Machine Vice

160

1

1

13

Horizontal Milling Hilt



1

1

14

Operation Manual



1

1

15

Certificate Of Inspection



1

1

16

Packing List



1





If you have any other requirements for the size,please do not hesitate to contact us,

or you can advise us your ideas or thoughts for the machine,

we can kindly design for you and communicate with you for the details.







Quality Guarantee



We will supply enough spare parts and accessories with our machine when shipment.

 Within one year after receiving our machine, If there are any damaged parts or accessories,

We will supply them to you by air-mail .







Our advantages



1 More than fifty years experience of industry products



2,High reputation around the world;



3, Professional service and technology support;



4,Competitive price with better quality, even the best;











Our Service



1, Your inquiry will be replied in 24 hours



2. Our factory has been a Gold supplier continuously in this Alibaba website for 5 years.

And there is more industry technology experience for 56 years with our factory



3, To offer free spare parts and service within one year of warranty



4, Professional after-sales service team



5,Give reasonable offers with the best quality
