Specifications
1.Low noise ,reasonable structure , convenient operation.2.Suitable for all kinds of forging works.
Specifications
The blacksmith power forging hammer of my company is used to free forging,drawing,upsetting,punching,hot shearing,forged welding,bending and torsion
I would like to suggest our blacksmih power forging hammer(power hammer) to you, which is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.
My company is the only manufacture of blacksmith power forging hammer in Tengzhou , we have 46 years history in producing the blacksmith power forging hammer, So far, Our Blacksmith power Forging Hammers have been exported to Germany, UK, France, Russia, Romania, Slovenia, South Africa, Egypt, Brazil, Mexico, India, Vietnam, Thailand etc more than 50 countries.
The principle of work:
Motor through reduction gear and crank rod driven compression cylinder compression piston moves up and down to produce compressed air.
When the compression cylinder upper and lower airways to the atmosphere,the compressed air does not enter the cylinder,motor idling,
hammer does not work,the handle or lever or pedal down rotary valve,the compressed air into the working cylinder of the upper or lower,
to promote working piston moves up and down,so as to drive the hammer and iron on rise or fall,complete a variety of hit actions.
MAIN TECHNICAL DATA
Item |
Unit |
Numerical Value |
|
Weight of falling parts |
kg |
6 |
|
Maximum blow energy |
J |
66 |
|
Distance from center of die to frame |
mm |
100 |
|
Distance between top and bottom die |
mm |
175 |
|
Number of blows per minute |
min-1 |
248 |
|
Motor |
Power |
kw |
0.75 |
|
Rotate speed |
rpm |
1440 |
|
Outside Size |
Length |
mm |
480 |
|
Width |
mm |
340 |
|
High |
mm |
670 |
Hammer weight |
kg |
~126 |
|

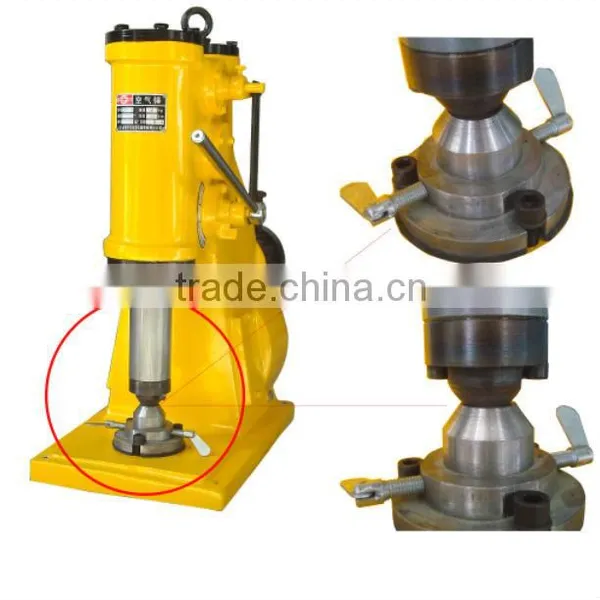

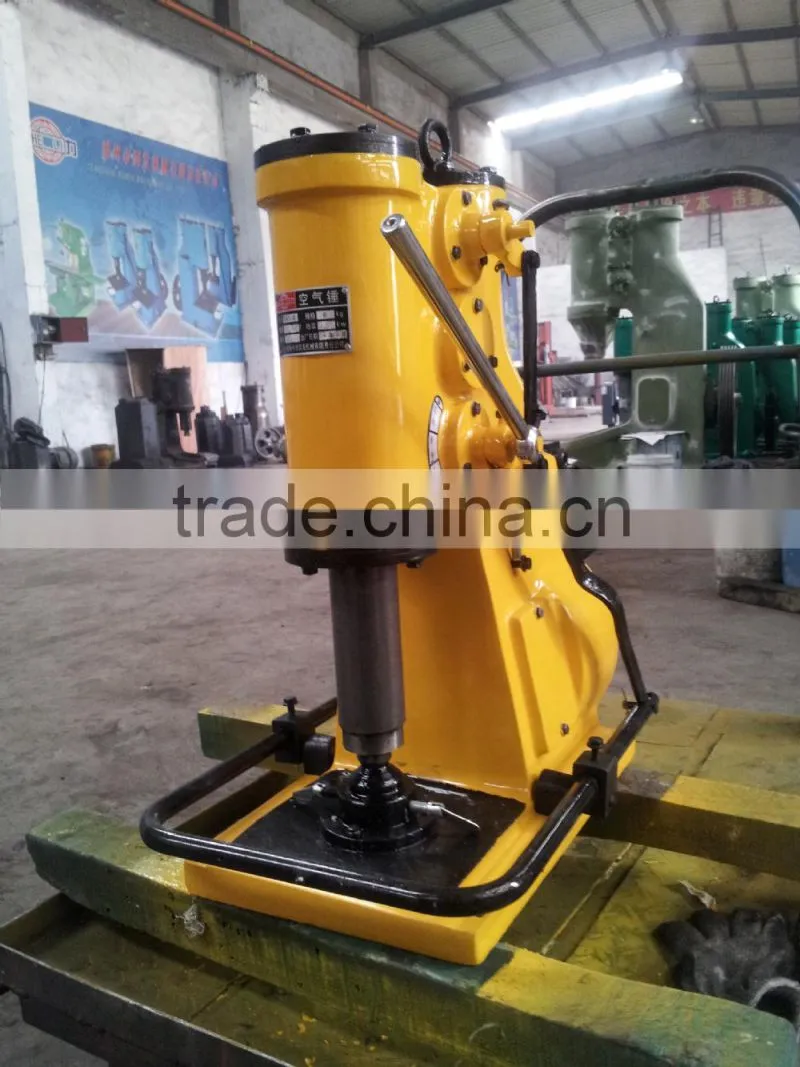

PICTURES DISPLAY
QUALITY MEASURE
Quality assurance system
Company organizes the production as per ISO9001:2008 standard. From design control, process control, inspection control to delivery, installed and service, the whole process control. The running of quality system performs quality manual, procedure files, work instruction and related technical and management standard together with standard and regulation layout by company strictly. Quality system realizes whole screw and whole procedure control completely.
MACHINE QUALITY
Machine design and manufacture performs occupation standard and comply with the requirement of quality, specification and characters herein this technical regulation.
Guarantee period start from the day the machine acceptance report signing. Period would be one year.
Technical documents which supplier in charge of furnish and handed to use should be consist with technical regulation, and throughout technical, technics, produce, installation and setting
After-sale-service
Manufacturer(my company) will in charge of the technical service for the whole using life of the machine.
If you want to know more about the machine ,pls. contact with us freely.
