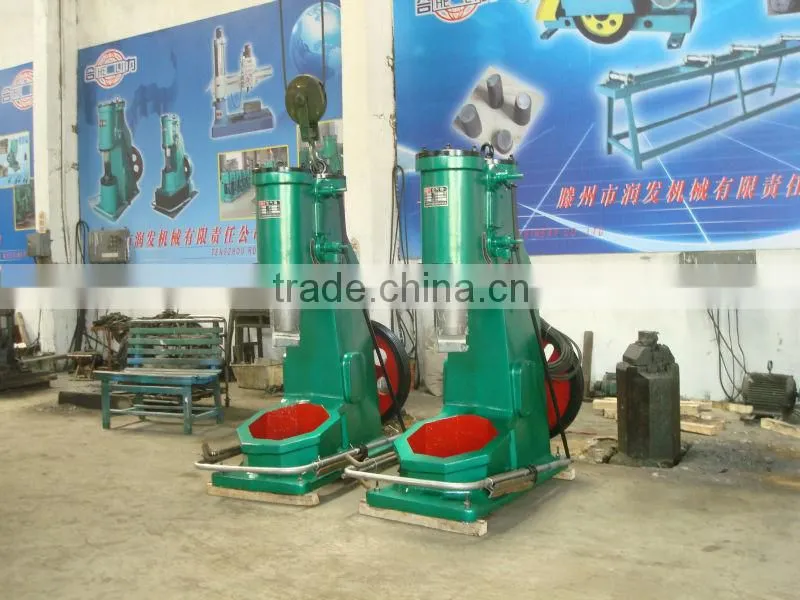

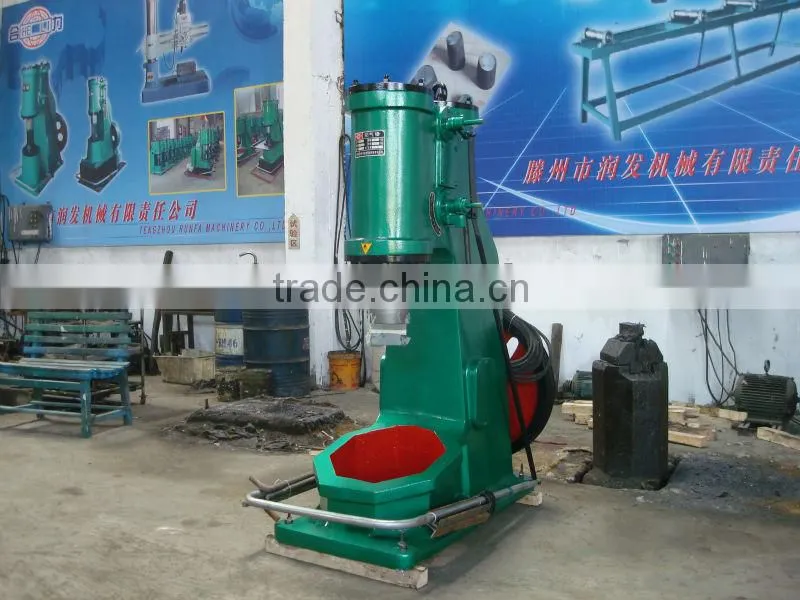

Blacksmith's Hammer air hammer C41-75KG

Specifications

1simple structure
2.Easy operation
3.Stable function and durable
4.Motion agility

Air hammer is economic and convenient for individual blacksmiths or other wrought iron forging work.it is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies. Power hammer is also called forging hammer, air hammer falling weight at 16kg, 20kg, 25kg, 40kg, 55kg, 75kg ,150kg mainly for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.

Item                                 Unit          Numerical Value
Weight of falling parts                 kg  16 20 25 40      55 75 150
Maximum blow energy                  J      180 220 270 530 700     900 2200
Distance from center of die to frame mm 150 180 200 235 270     300 350
Distance between top and bottom die mm 180 200 240 245 265     300 370
Number of blows per minute        min-1 258 270 250 245 230     210 180
Dimension of top to bottom         mm 70*30 90*50 100*50 120*50 120*50  145*65 200*87
Diameter of the working cylinder mm 115 150 165 200 215     235 330
Diameter of the compressing cylinder mm 125 155 170 205 220     240 340
Travel distance of malleus         mm 210 200 275 290 265     345 370
Travel distance of plunger         mm 120 130 140 154 140     200 235
Forges Round                         mm Φ22 Φ35 Φ45 Φ68 68      Φ85 Φ145
 Square                         mm 20 30 40 52 52      65 130
Motor Power                         kw 1.5 2.0 2.2 4.0 5.5     7.0 15.0
 Rotate speed                 rpm  1440 1440 1440 1440    1440 1440

Outside Size Length                 mm 584 670 800 1080 1300    1600 2080
         Width                 mm 390 360 410 600 750     950 1240
         High                 mm 952 1050 1213 1389 1620    1950 2350
Anvil block weight                 kg -- 190 247 400 600     850 1800
Hammer weight                         kg ~220 ~500 ~720 ~1400 ~1700   ~2800 ~5060
