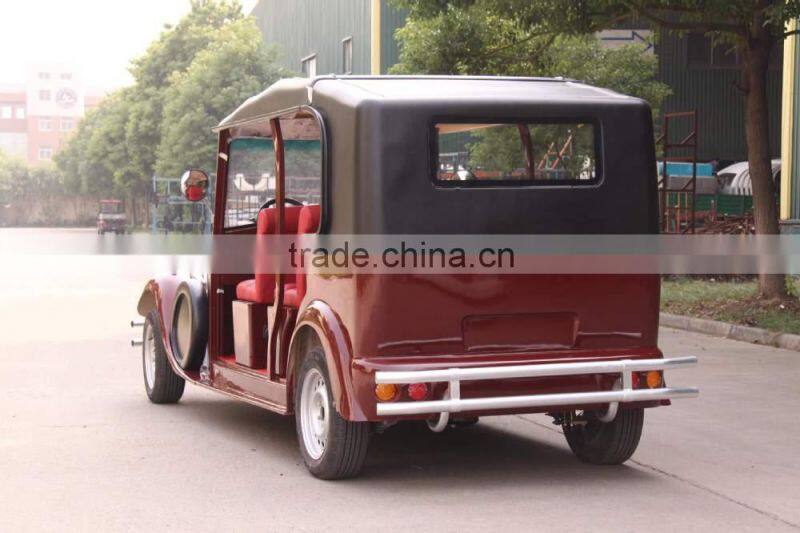

9 seats electric vehicle , comfortable bench seat with high backrest, luxury classic design for wedding occasion CE approved

Item

Description

Controller

Curtis controller, 350A, imported from USA directly

Motor

Rated power 4KW(5.4HP), Chinese brand

Battery

Trojan battery, T105+, imported from USA directly

Charger

High frequency onboard charger

(input 90V-265V, 47-63HZ, output 48V/22A)

Item

Description

Passenger Capacity

6

Range (loaded) (km)*

up to 70

Max.speed (km/h)

up to 25

Min.turning radius (m)

6.3

Max.climbing ability(loaded)

up to 15%

Max. movement after brake at speed of 20km/h

≤4m

Max.loading weight (kgs)

480

Charging time (hour)

8-10

Battery lifespan (cycles)

750

Item

Description

Overall dimensions (mm)

4400x1650x1850 (LxWxH)

Min.ground clearance (mm)

120

Wheelbase (mm)

2900

Front wheel tread (mm)

1385

Rear wheel tread (mm)

1385

Item

Description

Frame & Chassis

Welded steel framework with sand blasting and painting

Body

FRP

Roof

FRP

Windshield

Front Laminated glass, rear toughened glass

Seat

Sponge with super-fibre leather,with wooden bottom

Floor

Skidproof leather and red carpet

Side trim

FRP

Foot step

Aluminum

Door

Half closed, aluminum, with handle

Dashboard

FRP, with F/R switch, emergency light switch, speedometer, amperemeter, voltameter, combination switch, etc..

Side rear view mirror

2pcs

Item

Description

Lights

12V, headlight, front turning light, 2 front fog light,  taillight (brake light and rear turing light)  and 1 rear fog light

Horn

Air-horn

Reverse buzzer

Electric, 12V

Combination switch

including switch for headlight, turning light, fog light and horn

DC/DC converter

48V/12V

Digital Meter

Amperemeter, voltometer, speedometer

Audio system

Radio with MP3 receiver and 2 waterproof speaker

Item

Description

Steering System

Single-stage rack and pinion steering system,

with automatic compensation function

Brake System

4-wheel hydraulic front disc rear drum brake

Accelerator

Resistance type, stepless speed change

Front suspension

Independent suspension

Rear suspension

integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber

Driving mode

Rear axle two stage deceleration, motor direct driving

Rear axle

Integrated, steel differential case, 12.49:1 gear ratio

Wheel & Tyre

185/R65-15 tire, 6J-15 steel wheel, wheel cap
