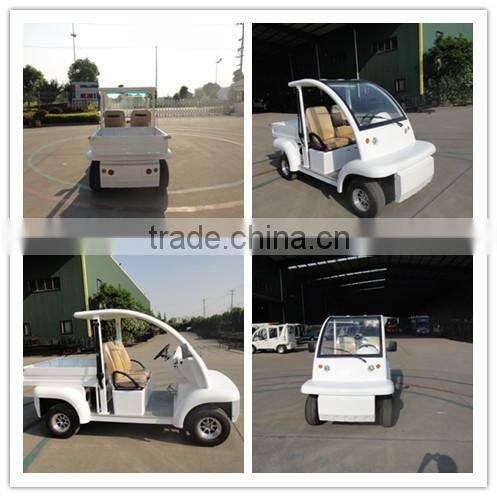

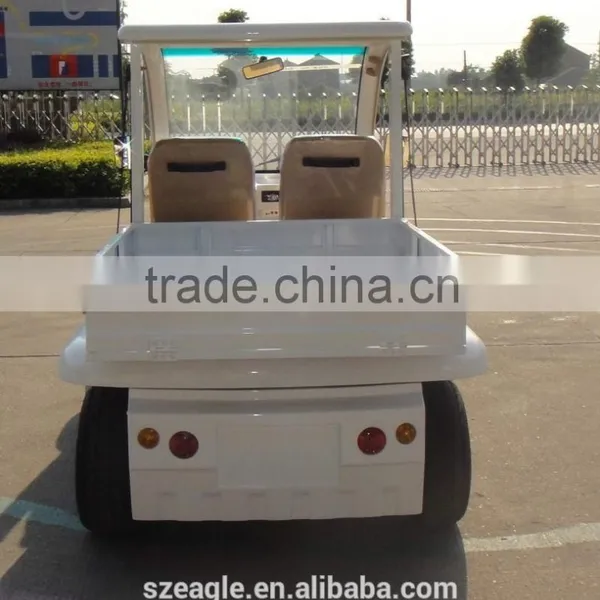

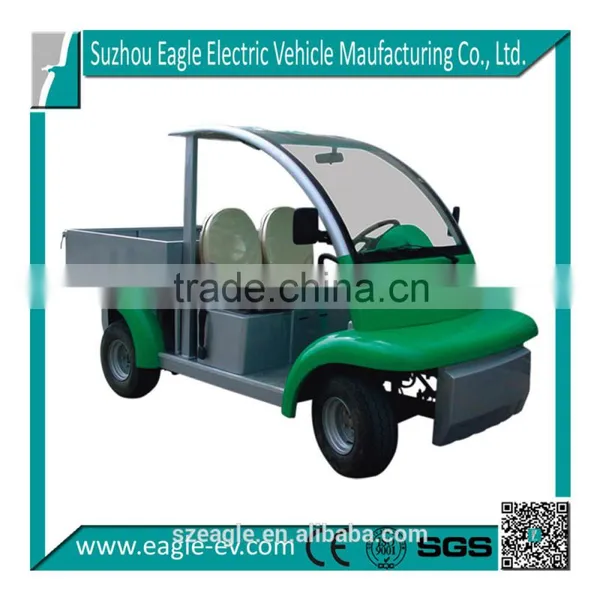

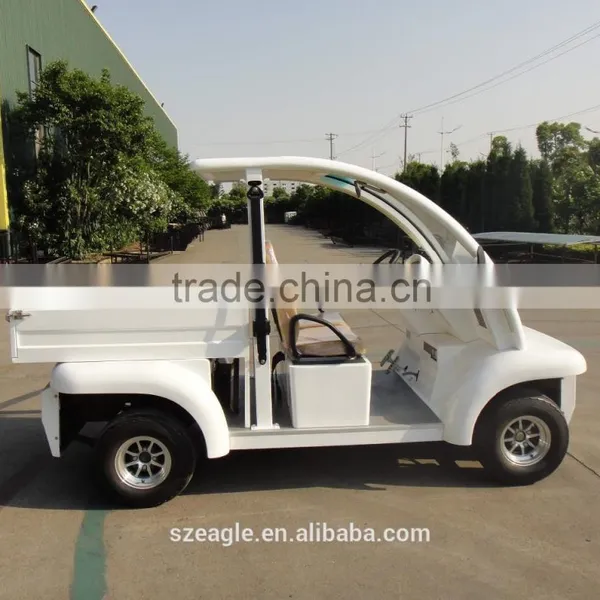

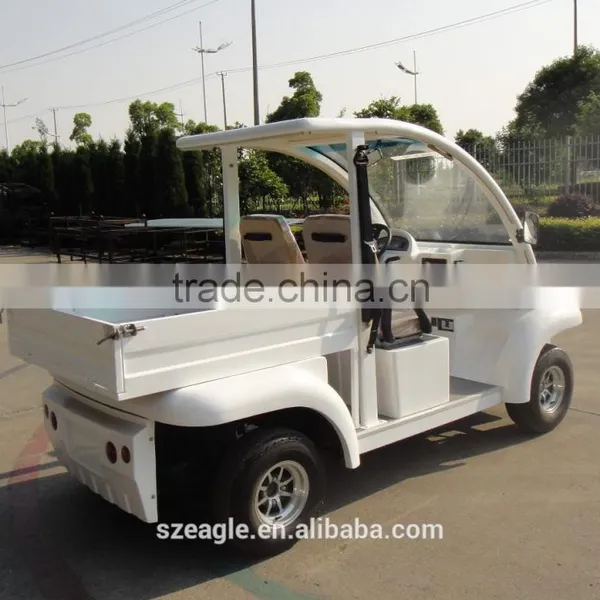

electric utility car, 2 seats, 48V 4KW DC motor, model EG6043KDX, widely used by hotel, resort

Item

Description

Controller

Curtis controller, 275A-400A, imported from USA directly

Motor

Rated power 4KW-5KW (5.4HP-6.8HP), Chinese brand or ADC brand

Battery

Trojan battery, T105+, imported from USA directly

Charger

High frequency onboard charger

(input 90V-265V, 47-63HZ, output 48V/22A)

Item

Description

Passenger Capacity

2

Range (loaded) (km)*

up to 90

Max.speed (km/h)

up to 40

Min.turning radius (m)

4

Max.climbing ability(loaded)

up to 25%

Max. movement after brake at speed of 20km/h

≤4m

Max.loading weight (kgs)

480

Charging time (hour)

8-10

Battery lifespan (cycles)

750

Item

Description

Overall dimensions (mm)

3050x1400x1800 (LxWxH)

Rear cargo bed dimension (mm)

1200x1100x250 (LxWxH)

Min.ground clearance (mm)

155

Wheelbase (mm)

2080

Front wheel tread (mm)

1210

Rear wheel tread (mm)

1160

Item

Description

Frame & Chassis

Welded steel framework with sand blasting and painting

Body

FRP and Plastic

Roof

FRP with steel frame, with roof handle

Windshield

Laminated glass with wiper

Roof supports

Steel

Seat

Reborn sponge with artificial leather, high back, with adjustable armrest

Rear cargo bed

Steel

Floor

Bamboo floor with Skidproof leather

Dashboard

FRP, with F/R switch, emergency light switch, digital meter, combination switch, storage box (2), etc..

Side rear view mirror

2pcs

Item

Description

Lights

12V, headlight, front turning light, taillight (brake light and rear turing light)

Horn

Electric horn, 12V

Reverse buzzer

Electric, 12V

Combination switch

including switch for headlight, turning light, wiper and horn

DC/DC converter

48V/12V

Digital Meter

with Current meter, voltometer, speedometer, odometer and various indicators

Audio system

Radio with MP3 receiver and 2 waterproof speaker

Item

Description

Steering System

Single-stage rack and pinion steering system,

with automatic compensation function

Brake System

4-wheel hydraulic drum brake with hand park brake

Accelerator

Resistance type, stepless speed change

Front suspension

Independent suspension

Rear suspension

integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber

Driving mode

Rear axle two stage deceleration, motor direct driving

Rear axle

Integrated, Aluminum differential case, 12.76:1 gear ratio

Wheel & Tyre

225/55b12 6PR tire, 12X7 aluminum wheel

Item

Option description

Item

Option description

1

Inner rear view mirror

5

CD player

2

Battery watering pipe

6

Wired mircophone

3

Water pump (handle)

7

Solar panel (built in)

4

Rain cover

8

2-point seatbelt

Container loading qty

Semi-knock-down

20'ft GP

2

40'ft GP

6

40'HQ

6
