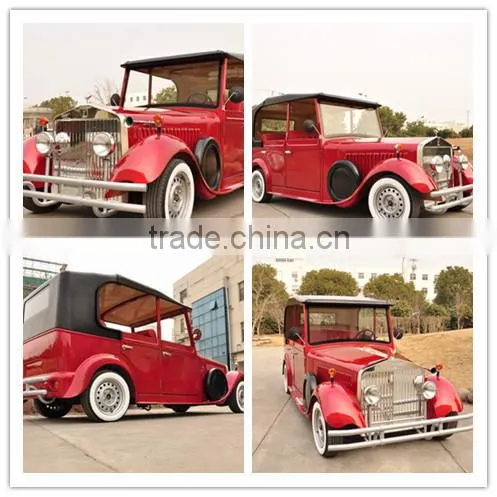

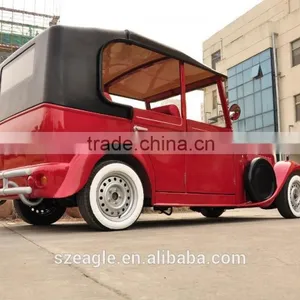

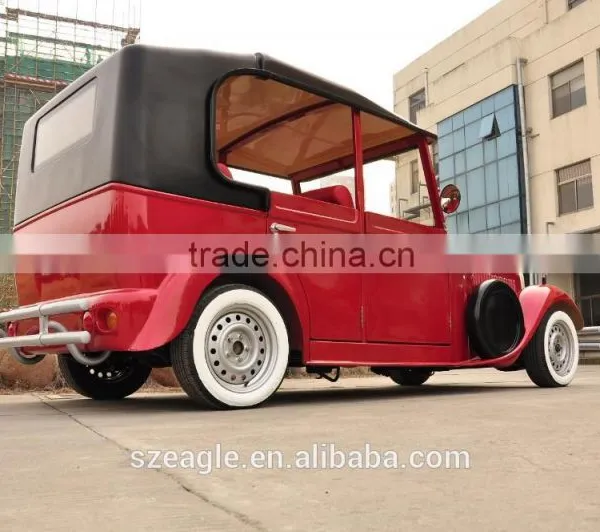

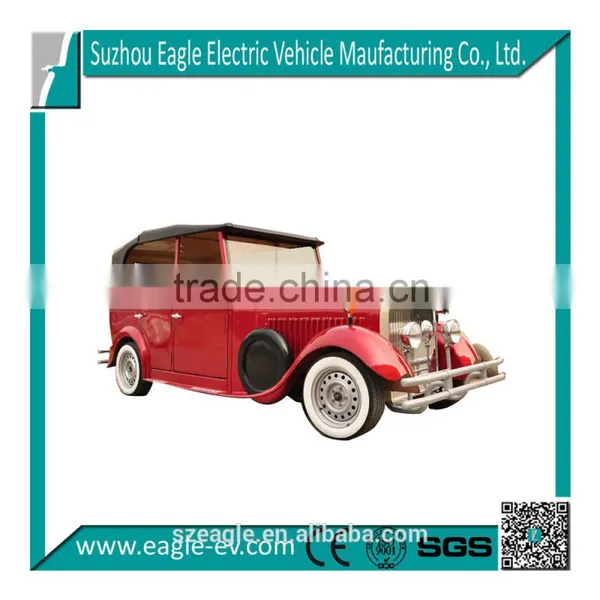

6 seats electric classic cart with comfortable bench seat with high backrest, half closed door
Item
Description
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
All electric vehicles sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
* 13 months warranty
* technical support
* full spare parts support
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Payment Terms:
"T/T 30% down payment at order, T/T 70% to be paid before the delivery" Or Irrevocable L/C at sight
Lead time:
Four Weeks after getting your down payment or original L/C
MOQ:
We dont have minimum order requirement but may apply extra cost for sample unit
| Controller | Curtis controller, 350A, imported from USA directly | Motor | Rated power 4KW(5.4HP), Chinese brand |
Battery | Trojan battery, T105+, imported from USA directly | Charger |
High frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
| Item | Description | ||||||
| Passenger Capacity | 6 | ||||||
Range (loaded) (km)* |
up to 70 | ||||||
| Max.speed (km/h) | up to 25 | ||||||
| Min.turning radius (m) | 6.3 | ||||||
| Max.climbing ability(loaded) | up to 15% | ||||||
| Max. movement after brake at speed of 20km/h | ≤4m | ||||||
| Max.loading weight (kgs) | 480 | ||||||
| Charging time (hour) | 8-10 | ||||||
| Battery lifespan (cycles) | 750 | ||||||
| Item | Description | ||||||
| Overall dimensions (mm) | 4400x1650x1850 (LxWxH) | ||||||
| Min.ground clearance (mm) | 120 | ||||||
| Wheelbase (mm) | 2900 | ||||||
| Front wheel tread (mm) | 1385 | ||||||
| Rear wheel tread (mm) | 1385 | ||||||
| Item | Description | ||||||
| Frame & Chassis | Welded steel framework with sand blasting and painting | ||||||
| Body | FRP | ||||||
| Roof | FRP | ||||||
| Windshield | Front Laminated glass, rear toughened glass | ||||||

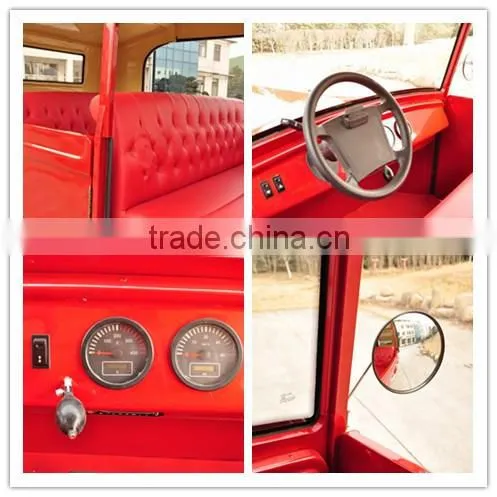

| Seat | Sponge with super-fibre leather,with wooden bottom | ||||||
| Floor | Skidproof leather and red carpet | ||||||
| Side trim | FRP | ||||||
| Foot step | Aluminum | ||||||
| Door | Half closed, aluminum, with handle | ||||||
| Dashboard | FRP, with F/R switch, emergency light switch, speedometer, amperemeter, voltameter, combination switch, etc.. | ||||||
| Side rear view mirror | 2pcs | ||||||
| Item | Description | ||||||
| Lights | 12V, headlight, front turning light, 2 front fog light, taillight (brake light and rear turing light) and 1 rear fog light |
||||||
| Horn | Air-horn | ||||||
| Reverse buzzer | Electric, 12V | ||||||
| Combination switch | including switch for headlight, turning light, fog light and horn | ||||||
| DC/DC converter | 48V/12V |
||||||

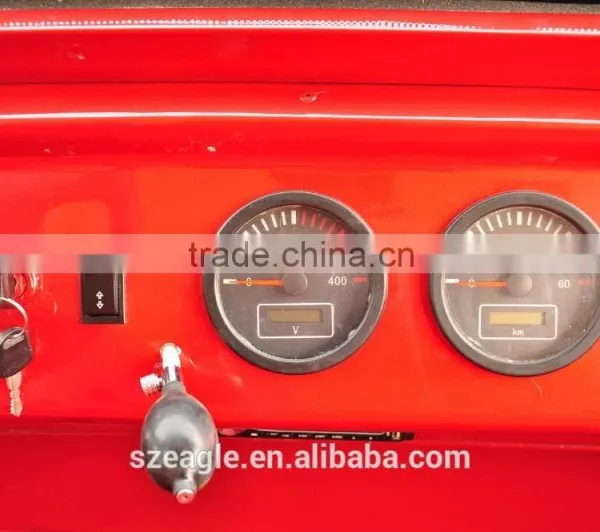

| Digital Meter | Amperemeter, voltometer, speedometer | ||||||
| Audio system | Radio with MP3 receiver and 2 waterproof speaker | ||||||
| Item | Description | ||||||

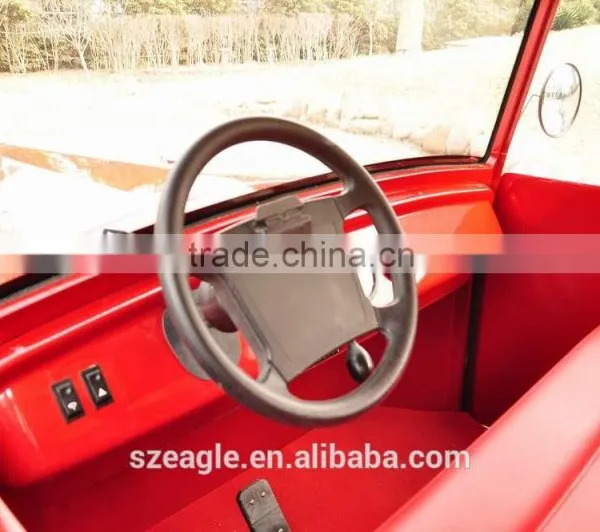

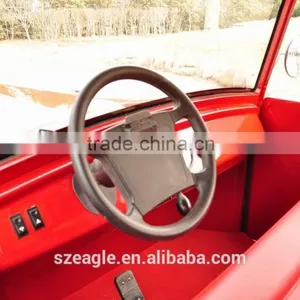

| Steering System |
Single-stage rack and pinion steering system, with automatic compensation function |
||||||
| Brake System | 4-wheel hydraulic front disc rear drum brake | ||||||
| Accelerator | Resistance type, stepless speed change | ||||||
| Front suspension | Independent suspension | ||||||
| Rear suspension | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber | ||||||
| Driving mode | Rear axle two stage deceleration, motor direct driving | ||||||
| Rear axle | Integrated, steel differential case, 12.49:1 gear ratio | ||||||
| Wheel & Tyre | 185/R65-15 tire, 6J-15 steel wheel, wheel cap | ||||||
Container loading qty |
Assembly |
||||||
20'ft GP |
1 |
||||||
40'ft GP |
2 |
||||||
40'HQ |
2 |
