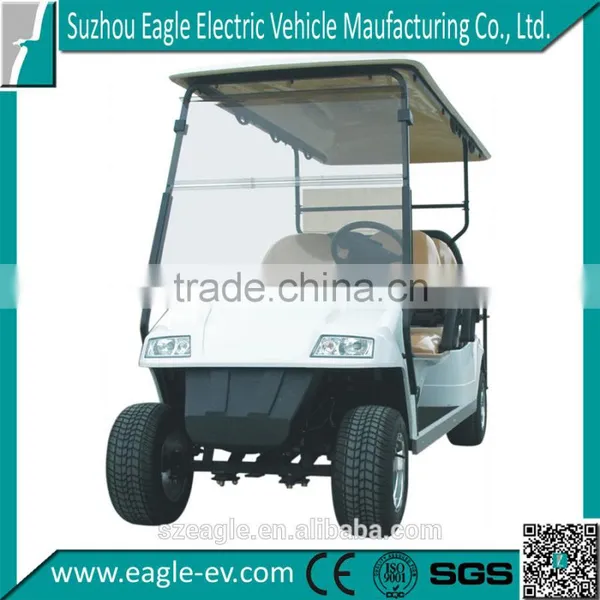

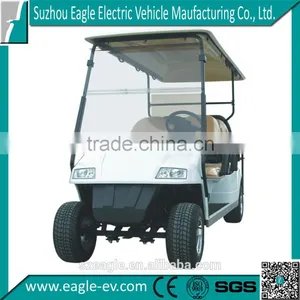

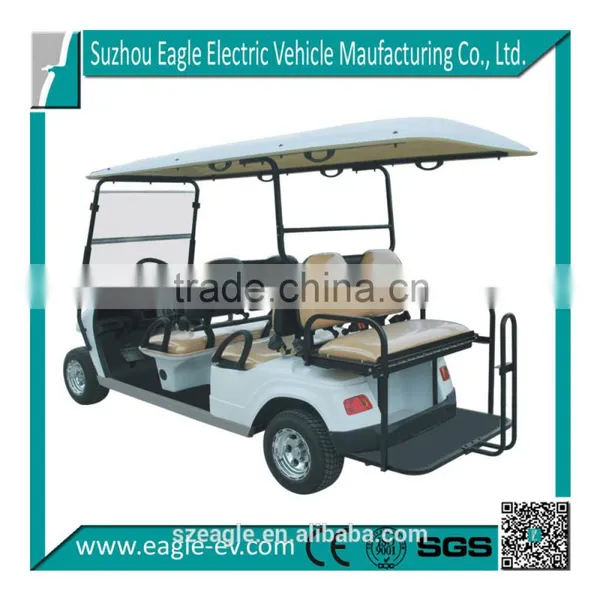

Electric car for golf, pure electric factory supply, ce approved
| Specifications | Model | EG2048KSZ |
| Key Components | Power Source | Pure Electric |
| Electric System | Both AC and DC system are available | |
| Battery | Trojan battery | |
| Motor | ADC motor or Chinese Motor | |
| Controller | Curtis controller | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, | |
| Performance | Passenger capacity | 6 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | Up to 90 | |
| Max. speed | Up to 40 | |
| Minimum turning radius (m) | 4.5 | |
| Max. climbing ability (loaded) | Up to 20% | |
| Max. movement after brake at speed of 20km/h | ≤4m | |
| Max. loading weight | 480kgs | |
| Dimensions | Overall dimensions (mm) | 3420x1180x1850 |
| Min. ground clearance (mm) | 120 | |
| Wheelbase (mm) | 2450 | |
| Front wheel tread (mm) | 855 | |
| Rear wheel tread (mm) | 975 | |
| Body and Frame | Frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body | |
| Roof | Injected plastic | |
| Electric system | Lighting system and horn | Headlights,front turn signals, taillights, with DC-DC converter, horn,reversing alarm |
| Steering and Suspension | Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Mechanical brake | |
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber | |
| Driving mode | Rear axle two stage deceleration, motor direct driving | |
| Rear axle | Integrated | |
| Wheel & Tyre | Alumimum wheel & 205/50-10 Tyre | |
| Options | Hinged Windshield | |
| Stainless steel package | ||
| Meter (available for 48V system) | ||
| 2 point seat belt | ||
| Formed seat&backrest vinyl | ||
| Wood finish Package | ||
| Inner & Side rear view mirror | ||
| Solar Panel | ||
| Cooler | ||
| on-body charger | ||
| Right hand drive system | ||
| 4-wheel hydraulic brake system | ||
| Enclosure | ||
| Body Color | Up to 6 kinds of standard color for option | |
| Loading | Both Assembly and Disassembly are available | |
| Container loading qty | Disassembled | Assembled |
| Qty/20' | 6units | 4units |
| Qty/40' | 14units | 8units |
| Qty/40'HQ | 22units | 8units |
* life long spare parts supply
* 13 months warranty
* lifte long technical support
* parts manual * trouble shooting support
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Payment Terms:
"T/T 30% down payment at order, T/T 70% to be paid before the delivery" Or Irrevocable L/C at sight
Lead time:
Four Weeks after getting your down payment or original L/C
MOQ:
We dont have minimum order requirement but may apply extra cost for sample unit
