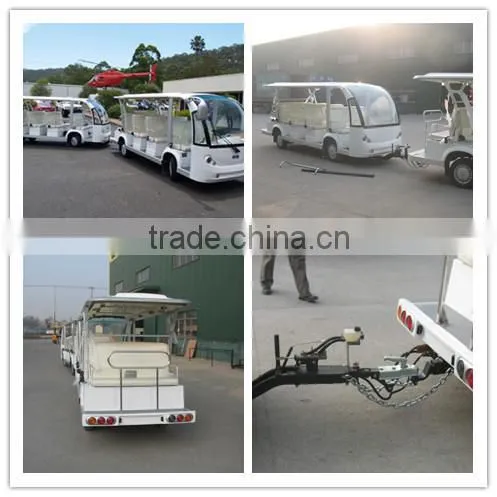

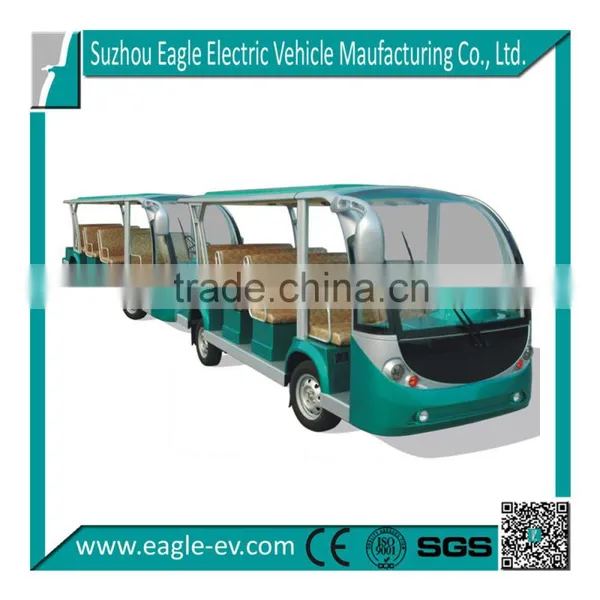

29 seats electric bus train
| Specifications | Model | EG6158T+EG6158T trailer |
| Key Components | Power Source | Pure Electric |
| Electric System | Only DC system is available | |
| Battery | Trojan battery | |
| Motor | Chinese Motor | |
| Controller | Curtis controller | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, | |
| Performance | Passenger capacity | 14+15 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | Up to 78 | |
| Max. speed | Up to 40 | |
| Minimum turning radius (m) | 9 | |
| Max. climbing ability (loaded) | Up to10% | |
| Max. movement after brake at speed of 20km/h | ≤N/A | |
| Max. loading weight | 2000kgs | |
| Dimensions | Overall dimensions (mm) | 2pcs, 5000x1490x2050 |
| Min. ground clearance (mm) | 135 | |
| Wheelbase (mm) | 2710 | |
| Front wheel tread (mm) | 1222 | |
| Rear wheel tread (mm) | 1185 | |
| Body and Frame | Frame | Welded steel framework with sand blasting+paint treatment |
| Body | Fibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body) | |
| Roof | Fibreglass+aluminum frame, with roof handle | |
| Electric system | Lighting system and horn | Headlights,front turn signals, fog lights, rear turn signals, taillights,fog light, 1 reverse light, with DC-DC converter, horn. |
| Steering and Suspension | Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Four wheel hydraulic drum brake+hand parking brake | |
| Suspension system | Front suspension:Independent suspension, helix spring + shock absorber;Rear suspension:rear plate spring + shock absorber | |
| Driving mode | Clutch, 5F+1R gear box, transmission shaft | |
| Rear axle | Integrated | |
| Wheel & Tyre | 4J*12 Steel wheel, wheel cap, 155R12,8PR | |
| Options | 2point seat belt | |
| Overshadowing Curtain/Enclosure | ||
| New seat | ||
| Formed seat&backrest vinyl | ||
| Inner rear view mirror | ||
| License plate light | ||
| CD player to replace MP3 receiver | ||
| Microphone Wired | ||
| with water sprayer | ||
| Solar panel | ||
| On-board charger | ||
| Right hand drive system | ||
| Electrical power steering | ||
| 4J*12 Aluminum wheel, | ||
| Body Color | Up to 6 kinds of standard color for option | |
| Loading | Both Assembly and Disassembly are available | |
| Container loading qty | Assembled | Disassembled |
| Qty/20' | / | 1 |
| Qty/40' | 1units | 2 |
| Qty/40'HQ | 1units | 2 |
All electric vehicles sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
* 13 months warranty
* technical support
* full spare parts support
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Payment Terms:
"T/T 30% down payment at order, T/T 70% to be paid before the delivery" Or Irrevocable L/C at sight
Lead time:
Four Weeks after getting your down payment or original L/C
MOQ:
We dont have minimum order requirement but may apply extra cost for sample unit
