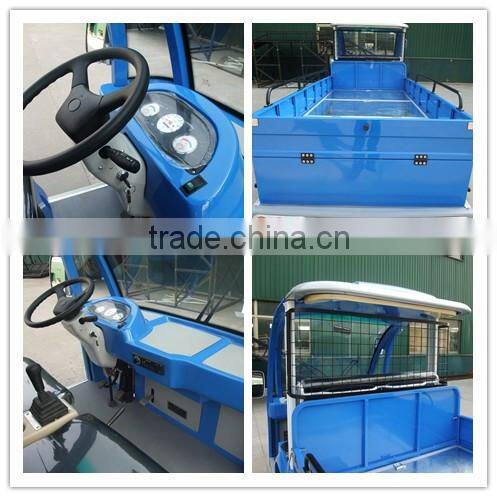

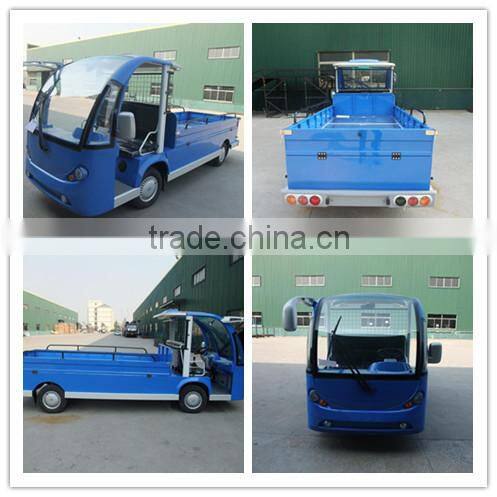

electric utility cart
Key Components
Item |
Description |
Controller |
Curtis controller, 400A, imported from USA directly |
Motor |
Rated power 5KW (6.8HP)DC or 7.5KW (10.2HP) AC motor, Chinese brand |
Battery |
Trojan battery, T105+, imported from USA directly |
Charger |
72V Smart transformed Charger (input 110V-240V, 50-60HZ, output 72V/25A) 48V high frequence onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
Performance
Item |
Description |
Passenger Capacity |
11 (all seats facing forward) |
Range (loaded) (km)* |
up to 110 |
Max.speed (km/h) |
up to 50 |
Min.turning radius (m) |
5.35 |
Max.climbing ability(loaded) |
up to 20% |
Max. movement after brake at speed of 20km/h |
≤4m |
Max.loading weight (kgs) |
880 |
Charging time (hour) |
8-10 |
Battery lifespan (cycles) |
750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
Item |
Description |
Overall dimensions (mm) |
5000x1490x2050 (LxWxH) |
Min.ground clearance (mm) |
135 |
Wheelbase (mm) |
2710 |
Front wheel tread (mm) |
1222 |
Rear wheel tread (mm) |
1185 |
Body and Frame
Item |
Description |
Frame & Chassis |
Welded steel framework with sand blasting and painting |
Body |
Fibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body) |
Roof |
FRP with aluminum frame, two layers, with roof handle |
Windshield |
Laminated glass with wiper |
Roof supports |
Aluminum |
Seat |
Reborn sponge with artificial leather, highback |
Armrest |
Aluminum |
Floor |
Bamboo floor with Skidproof leather |
Beverage holders |
1 cups holders |
Side rear view mirror |
2pcs, one long-arm mirror and one small mirror |
Electric System
Item |
Description |
Lights |
12V, headlight (H/L beam), front turning light, front fog light Rear taillight (brake light and rear turing light) and reverse light |
Horn |
Electric horn, 12V |
Reverse buzzer |
Electric, 12V |
Combination switch |
|
DC/DC converter |
48V/12V or 72V/12V |
Digital Meter |
with Current meter, voltometer, speedometer and various indicators |
Audio system |
Radio with MP3 receiver and 2 waterproof speaker |
Steering & suspersion
Item |
Description |
Steering System |
Single-stage rack and pinion steering system, with automatic compensation function |
Brake System |
4-wheel hydraulic drum brake with hand park brake |
Accelerator |
Resistance type, stepless speed change |
Front suspension |
Independent suspension |
Rear suspension |
integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
Transmission system |
Clutch, 4F+1R gear box, transmission shaft or automatic drive system (stepless speed change) |
Wheel & Tyre |
4J*12 Steel wheel & 155R12 tyre, 8PR |
Option Accessories
To increase the sales value of our vehicles, we also provide many optional accessories.
Item |
Option description |
Item |
Option description |
1 |
2-point seatbelt |
9 |
Wired microphone |
2 |
Overshadowing Curtain |
10 |
Wiper with water sprayer |
3 |
Enclosure (PVC) |
11 |
Solar panel |
4 |
Inner rear view mirror |
12 |
Right hand drive system (RHD) |
5 |
Battery watering pipe |
13 |
Electrical power steering |
6 |
Water pump (handle) |
14 |
Front disc brake and rear drum brake with vacuum booster |
7 |
License plate light |
15 |
4J*12 Aluminum rim |
8 |
CD player |
|
|
Vehicles will be packed in steel crate
Container loading qty |
Semi-knock-down |
Refer Picture |
20'ft GP |
2 |
|
40'ft GP |
4 |
|
40'HQ |
4 |
All electric vehicles sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
* 13 months warranty
* technical support
* full spare parts support
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Payment Terms:
"T/T 30% down payment at order, T/T 70% to be paid before the delivery" Or Irrevocable L/C at sight
Lead time:
Four Weeks after getting your down payment or original L/C
MOQ:
We dont have minimum order requirement but may apply extra cost for sample unit
