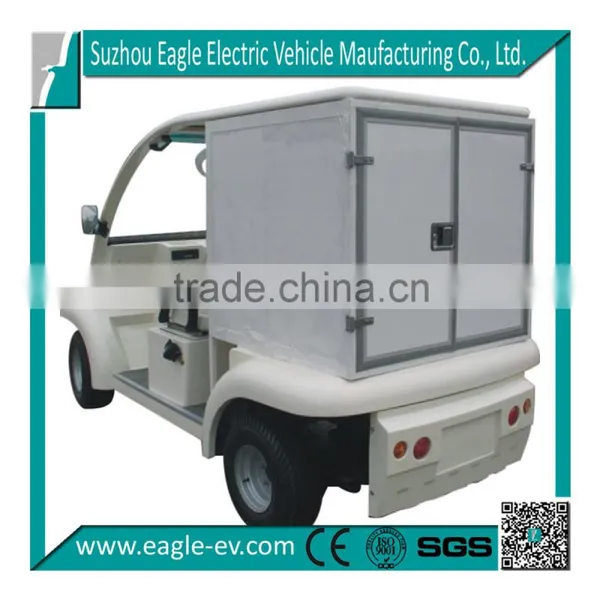

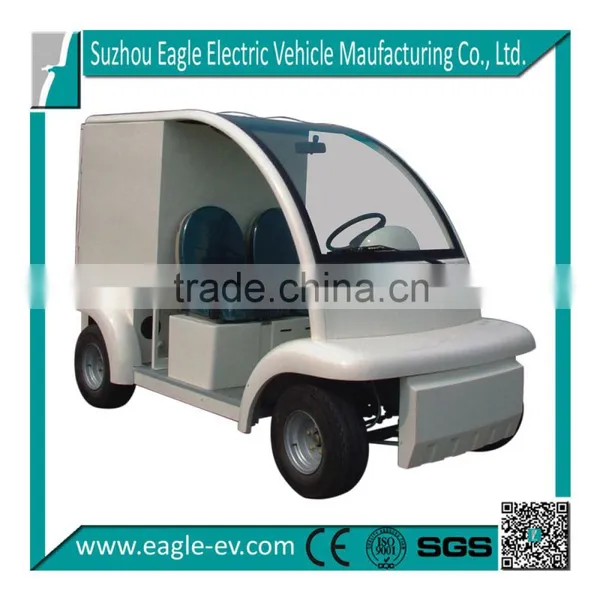

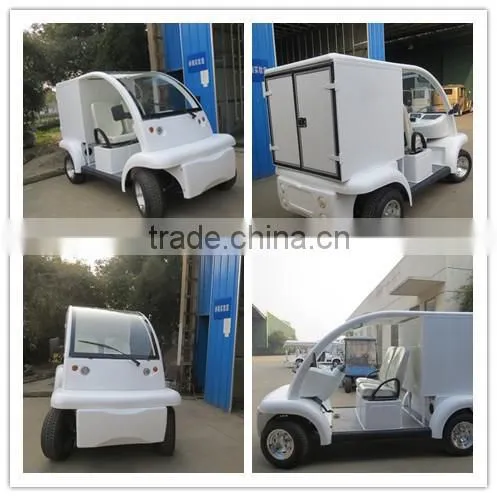

aircraft catering cart
| Specifications | Model | EG6043KXC |
| Key Components | Power Source | Pure Electric |
| Electric System | 48V system(DC Series& Sepex& AC Sepex) | |
| Battery | Trojan battery | |
| Motor | Chinese Motor | |
| Controller | Curtis controller | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | |
| Performance | Passenger capacity | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | Up to 90 | |
| Max. speed | Up to 40 | |
| Minimum turning radius (m) | 4 | |
| Max. climbing ability (loaded) | Up to 20% | |
| Max. movement after brake at speed of 20km/h | ≤4m | |
| Max. loading weight | 320kgs | |
| Dimensions | Overall dimensions (mm) | 3050x1400x1800 |
| Min. ground clearance (mm) | 140 | |
| Wheelbase (mm) | 2040 | |
| Front wheel tread (mm) | 1143 | |
| Rear wheel tread (mm) | 1143 | |
| Body and Frame | Frame | Welded steel framework with sand blasting+paint treatment |
| Body | Fibreglass | |
| Roof | Fibreglass+steel frame | |
| Electric system | Lighting system and horn | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn. |
| Steering and Suspension | Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Four wheel hydraulic drum brake+foot parking brake | |
| Suspension system | Independent suspension, helix spring + shock absorber(FW) & rear plate spring + shock absorber(RW) | |
| Driving mode | Rear axle two stage deceleration, motor direct driving | |
| Rear axle | Gear ratio12.49:1 | |
| Wheel & Tyre | 20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap | |
| Option | 3point seat belt | |
| Microphone | ||
| Rear storage box | ||
| Inner rear view mirror | ||
| Rain cover | ||
| CD player | ||
| Solar panel | ||
| On-board charger | ||
| Integrated, Gear ratio10.25:1 | ||
| 10X6 Aluminum Wheel | ||
| Body Color | Up to 6 kinds of standard color for option | |
| Loading | Both Assembly and Disassembly are available | |
| Container loading qty | Disassembled | Assembled |
| Qty/20' | / | 1unit |
| Qty/40' | / | 3units |
| Qty/40'HQ | / | 3units |
All electric vehicles sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
* 13 months warranty
* technical support
* full spare parts support
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Payment Terms:
"T/T 30% down payment at order, T/T 70% to be paid before the delivery" Or Irrevocable L/C at sight
Lead time:
Four Weeks after getting your down payment or original L/C
MOQ:
We dont have minimum order requirement but may apply extra cost for sample unit
