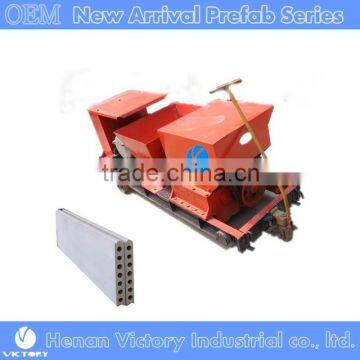

Prestressed concrete hollow core slab board forming machine
Introduction of Prestressed concrete hollow core slab board forming machine :
JWT Prestressed concrete hollow core slab board forming machine is a new construction machinery,which is widely used for molding different pre-stressed concrete hollow slabs in the field of industrial and civil construction.
The Feature:
*reasonable structure,flexbile operation,easy maintenance,low energy consumption and high efficiency.
*wearing parts made by the high alloy steel and the surface heat spray technology,
*corrosion resistance,long service life.
*meet the national common standards.
*lift travel part, is mobile and flexible and easy to remove ,
* tidy and smooth appearing
* ideal equipment for small and medium factory.
Parameter of Prestressed concrete hollow core slab board forming machine :
name | Type(mm) | Product speed (m/min) | power | |
motor | Vibrator | |||
concrete hollow core panel machine | 120 x 500 | 1.2-1.5 | 4kw | 2kw |
concrete hollow core panel machine | 120 x 600 | 1.2-1.5 | 5.5kw | 2kw |
concrete hollow core panel machine | 180 x500 | 1.2-1.5 | 7.5kw | 2kw |
concrete hollow core panel machine | 180 x600 | 1.2-1.5 | 7.5kw | 2kw |
concrete hollow core panel machine | 120 x900 | 1.2-1.5 | 7.5kw | 2kw |
concrete hollow core panel machine | 130 x900 | 1.2-1.5 | 7.5kw | 2kw |
concrete hollow core panel machine | 150 x900 | 1.2-1.5 | 7.5kw | 2kw |
concrete hollow core panel machine | 120 x1200 | 1.2-1.5 | 11kw | 2kw |
concrete hollow core panel machine | 130 x1200 | 1.2-1.5 | 11kw | 2kw |
concrete hollow core panel machine | 150 x1200 | 1.2-1.5 | 11kw | 2kw |

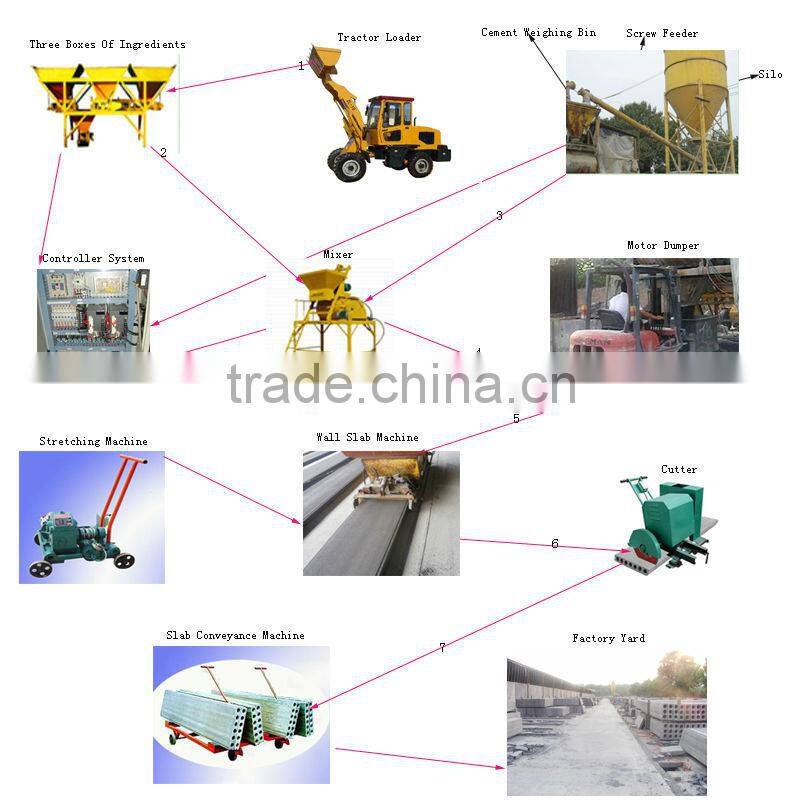

The process from Raw material to final slab:
wire frame or wooden case or bare package for Prestressed concrete hollow core slab board forming machine
Our service:
1. We supply the technical supporting all the time.
2. We supply one year warranty for whole machine.
3. We supply free quick wear parts.
4. We supply low charge continue maintenance when warranty is expired.
5. We supply free training to end-users.
After sale-Service:
1.We can timely provide the complete sets of equipment and accessories.
2.We can design and make machine according to user‘s request.
3.In the warranty period,the damage of failure all because of products can ba free repaired(besides vulnerable parts) within 12 months.
WE are professional manufacturer of construction equipment, our products include
1. Lightweight concrete Wall Panel production line
2. Prestressed concrete hollow core slab board forming machine
3. Concrete Roof Tile Machine
4. Concrete Beam Making Machine
5. Precast / Reinforced Steel Tension Machine
6. Concrete Cutter
7. Stone Crushing line
8. Concrete Mixer
9. Cement Silo
FAQ about Prestressed concrete hollow core slab board forming machine :
1. Where is your company located?
Henan Victory Co. is located in ZhengZhou,Henan province,China.
closest to XinZheng airport,we can pick you up before you arrived.
2. What is the Standard Size of Precast concrete slab
Roofing slabs
JWT 12*60 12cm(thickness)*60cm(width) China standard 3-5 m span
Roofing slabs
JWT 25*120 25cm(thickness)*120cm(width) 10-12m span for bridges and hospitals.
3. How Much Sqm will be installed 1 day?
Very quickly by Our Wall panel Installer (300sqm/day)
4. How To Order From "Henan Victory Industrial co. ltd."?
Confirm PI (Profroma Invoice) with our sales Man and
Payment: 50% deposit, the Balance 50% paid against Bill Of Lading Copy.
(Old Customer: 30% &70%)
5.What kind of raw materials may be used?
5.1 Cement, small stones, sand etc.
5.2 low carbon steel wire(dia.1.6-4mm ) for strengthening.
6.What kind of products can we get?
6.1 Width:normally 600-1200mm Thickness: 50mm-120mm for option.
6.2 Customer can choose the most common model in their local, or tell us to make the customized size for you.
7.How to maintain within 48 hours
7.1 felt cloth Like the right side ,Put the felt cloth on top of the wall panel
7.2 Water 3-4 times each day on top of the cloth. If you donot do this, it will break at the surface of the panel.
8.What are the supporting machine if need a basic production line?
Mixer, cutting machine,tension,stacker,ect.
9.Are the installment service provided?
Yes, For the client who need an overseas service or training, all the payment, such as: air fly ticket fee, insurance fee, visa fee, accommodations fee, worker salary during that time ,other transport fee should be paid by client.
We Strive to open the World Market, so, we attend exihibition of Thailand on Apr. 2016 and will always go abroad at other countries very Year! We got cooperation this Thailand trip.
