Specifications
concrete hollow core slab machine1. Low price
2. Optional length
3. Full automatic
4. 1.1-1.7m/minute
Hollow-Core of JWT began the production of hollow-core slabs on 1999 using the Elematic extrusion system.
Hollow core slabs are precast, prestressed concrete elements that are generally used for flooring. Some of their advantages are as follows: long spans, no propping; flexible in design; fast construction; light weight structures.
The principle benefits of precast hollow core slabs are their speed of installation and their design versatility making them suitable for use in all construction types and configurations.
What is produce process of the machine?
Using an extruded process, hollow core plank (or hollow core slab) is a plant-manufactured prestressed concrete slab with continuous cores, or voids, which considerably reduces weight (up to 50% compared with a poured-in-place flat slab) and cost.
The Universal Extruder is the heart of our hollowcore production system. Its unique design ensures that production is low cost, extremely reliable and the finished hollowcore is of the highest quality. The functional design means it very easy to use, set-up and maintain.
What kind of raw materials may be used?
1. Cement, small stones, sand etc.
2. Low carbon steel wire (dia.1.6-4 mm ) for strengthening.
What kind of products can we get?
Width: normally 600-1200mm
Thickness: From 50mm-380mm
For more options, users can choose the most common model in their local, Also we can design the machines based on your special needs.
Main Data
| Product Names | Types(mm) | Power(Kw) | Molding Speed | Holes | Holes Diameters | Steel Bar |
| Precast Hollow Core Slabs Machine | 120x600/500 | 4 | 1.2---1.5m/min | 5 | Φ76 | Φ4-5.2 |
| Precast Hollow Core Slabs Machine | 50x500 | 4 | 1.2---1.5m/min | 8 | Φ25 | Φ4-5.2 |
| Precast Hollow Core Slabs Machine | 50x500+80x500 | 4 | 1.2---1.5m/min | 6 | Φ25(Φ42) | Φ4-5.2 |
| Precast Hollow Core Slabs Machine | 100x600 | 8 | 1.2---1.5m/min | 6 | Φ60 | Φ4-5.2 |
| Precast Hollow Core Slabs Machine | 90x600 | 3 | 1.2---1.5m/min | 6 | Φ50 | Φ4-5.2 |
| Precast Hollow Core Slabs Machine | 60x500+80x500 | 4 | 1.2---1.5m/min | 7 | Φ25(Φ42) | Φ4-5.2 |
| Precast Hollow Core Slabs Machine | 120x900 | 8 | 1.2---1.5m/min | 8 | Φ76 | Φ4-5.2 |
| Precast Hollow Core Slabs Machine | 120x1200 | 11 | 1.2---1.5m/min | 11 | Φ76 | Φ4-5.2 |
| Precast Hollow Core Slabs Machine | 180x400 | 2 | 1.2---1.6m/min | 2 | Φ138 | Φ4-5.2 |
| Precast Hollow Core Slabs Machine | 180x600 | 3 | 1.2---1.6m/min | 3 | Φ138 | Φ4-5.2 |
| Precast Hollow Core Slabs Machine | 180x900 | 5 | 1.2---1.6m/min | 5 | Φ138 | Φ4-5.2 |
Note :Because of our technology continuously improve,the above table is for reference only.Please confirm the accurate data with us.
Product Pictures

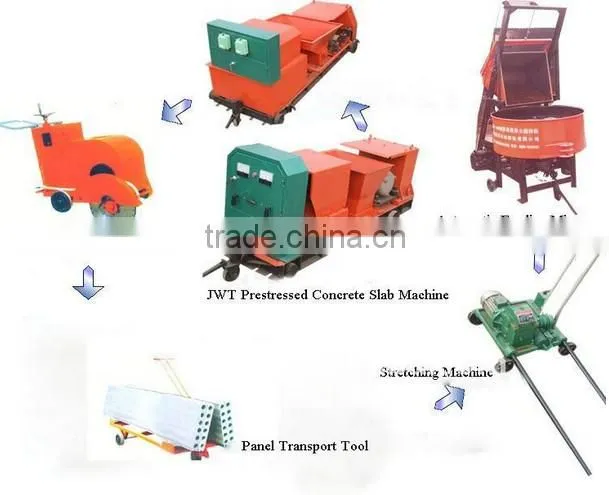

Production Line machinery

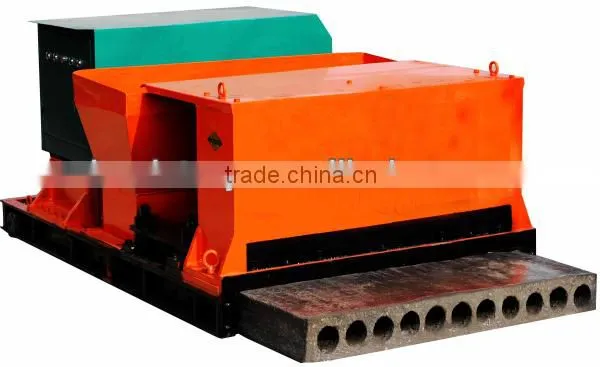

1. JWT Concrete Slab Machine
2. Steel Bar Tension Machine
3. Slab Cutting Machine
4. Electric concrete Dumper
5. Concrete Mixer
6. Concrete Mixer
1 . OEM Available
2. Best after-service
3. Main machine and parts' warranty period is 1 years.
4. Our engineers provide free consults.
5. All inquiry and questions will be replied within 8 hours.
