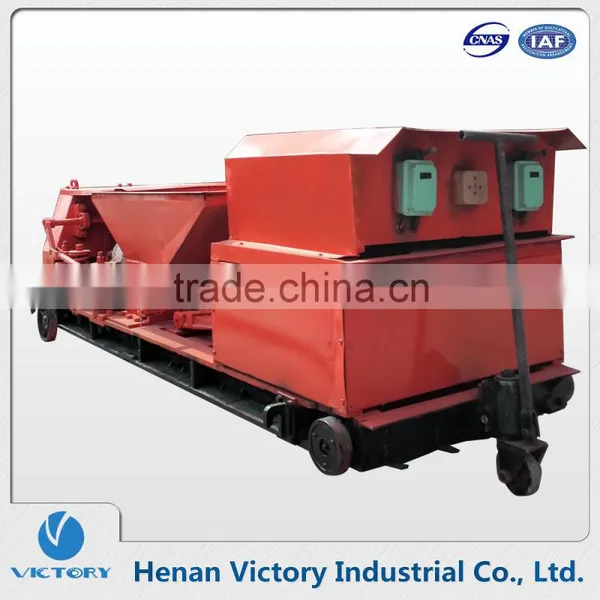

1. Machine working principle.
Hollow core slab making machine works on the long-line platform , using the high-strength and steel reinforcement, using the pushing work method to forming the concrete hollow-core slab. The slab have the advantages of smooth surface, high-density structure, capable of making construction slabs of 4.2m to 18m.
2. Mahchine paremeter and slab sizes
| Model |
main motor (kw) |
speed (m/min) |
thickness (mm) |
width (mm) |
No.hole*hole diameter (n*D) |
Vibrator (kw) |
overall dimensions(mm) |
GW (T) |
| JWT12*50 | 4 | 1.1-1.7 | 120 | 500 | 4*80 | 1.5 | 2070*660*750 | 1.15 |
| JWT12*60 | 4 | 1.1-1.7 | 120 | 600 | 5*80 | 1.5 | 2070*760*750 | 1.3 |
| JWT12*90 | 7.5 | 1.1-1.7 | 120 | 900 | 5*80 | 2.0 | 2190*1060*850 | 2.0 |
| JWT12*120 | 11 | 1.1-1.7 | 120 | 1200 | 11*80 | 2.0 | 2190*1360*970 | 2.7 |
| JWT15*60 | 5.5 | 1.1-1.7 | 150 | 600 | 4*102 | 2.0 | 2181*745*840 | 1.5 |
| JWT15*90 | 7.5 | 1.1-1.7 | 150 | 900 | 6*102 | 2.0 | 2181*1045*875 | 2.0 |
| JWT15*120 | 11 | 1.1-1.7 | 150 | 1200 | 8*102 | 2.0 | 2181*1345*875 | 2.0 |
| JWT18*60 | 7.5 | 1.1-1.7 | 180 | 600 | 3*135 | 2.0 | 2290*776*900 | 2.0 |
| JWT18*90 | 11 | 1.1-1.7 | 180 | 900 | 5*135 | 2.0 | 2290*1096*920 | 2.7 |
| JWT18*120 | 11 | 1.1-1.7 | 180 | 1200 | 7*135 | 2.0 | 2290*1370*920 | 2.7 |
As per your sizes' requirements , we can design the matched machine.
1. preparing materials 2. Batching and mixing

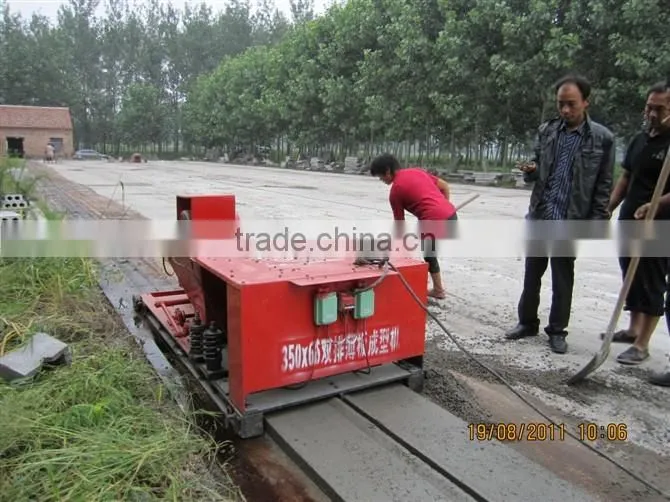

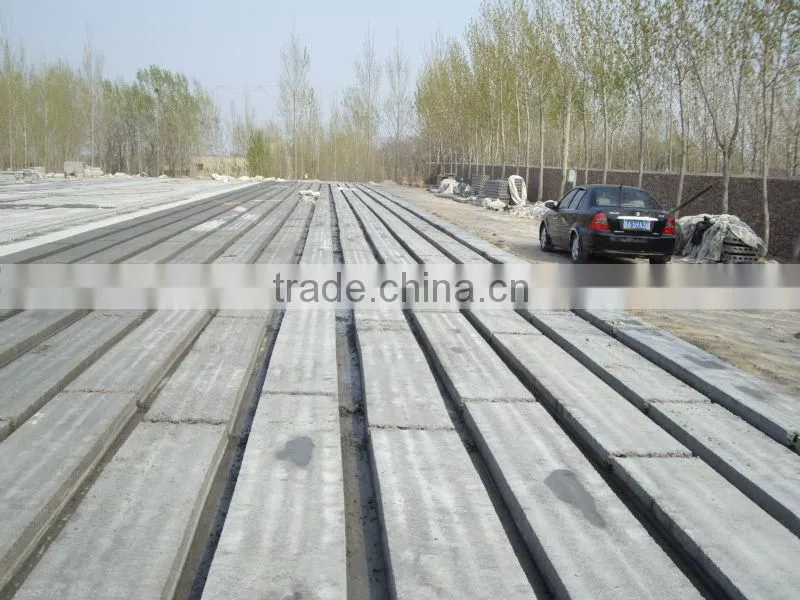

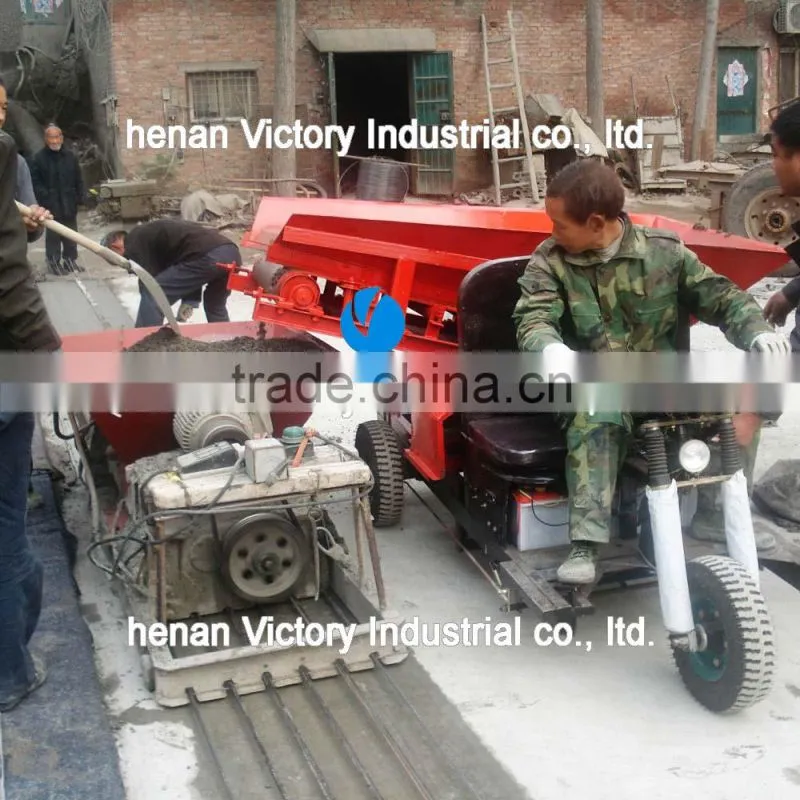

3. Materials transportation and production

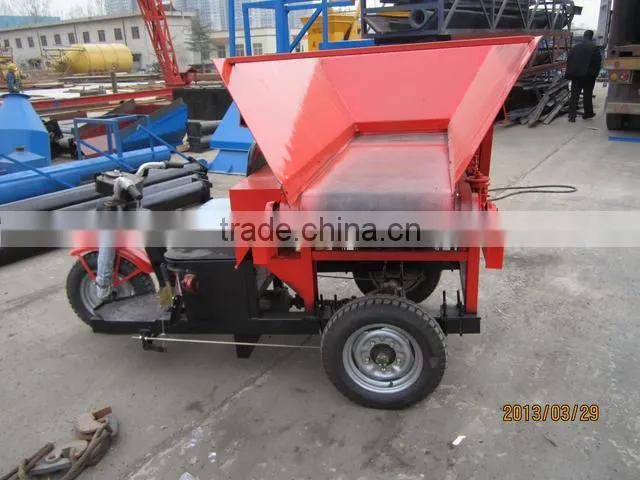

Slab cutting machine Concrete electric dumper 500Kg capacity

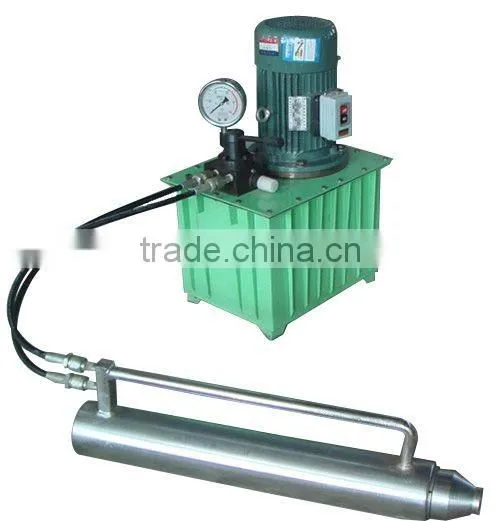

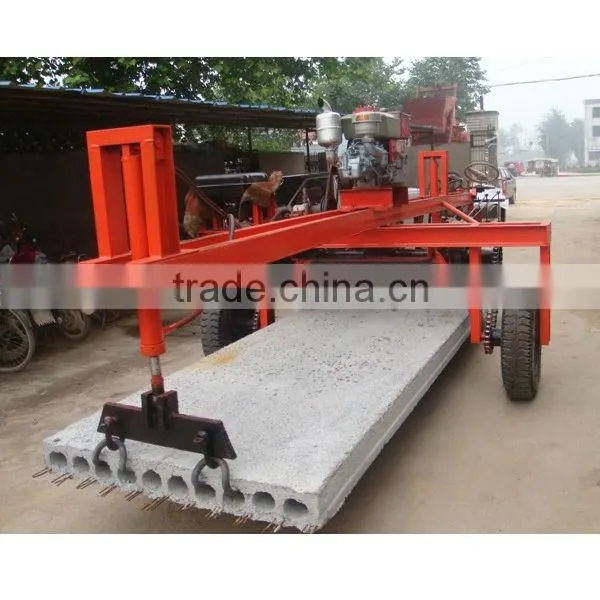

Hydraulic prestress tension machine Salb lifting machine
